Remote Mounting the Setback Control
-63-

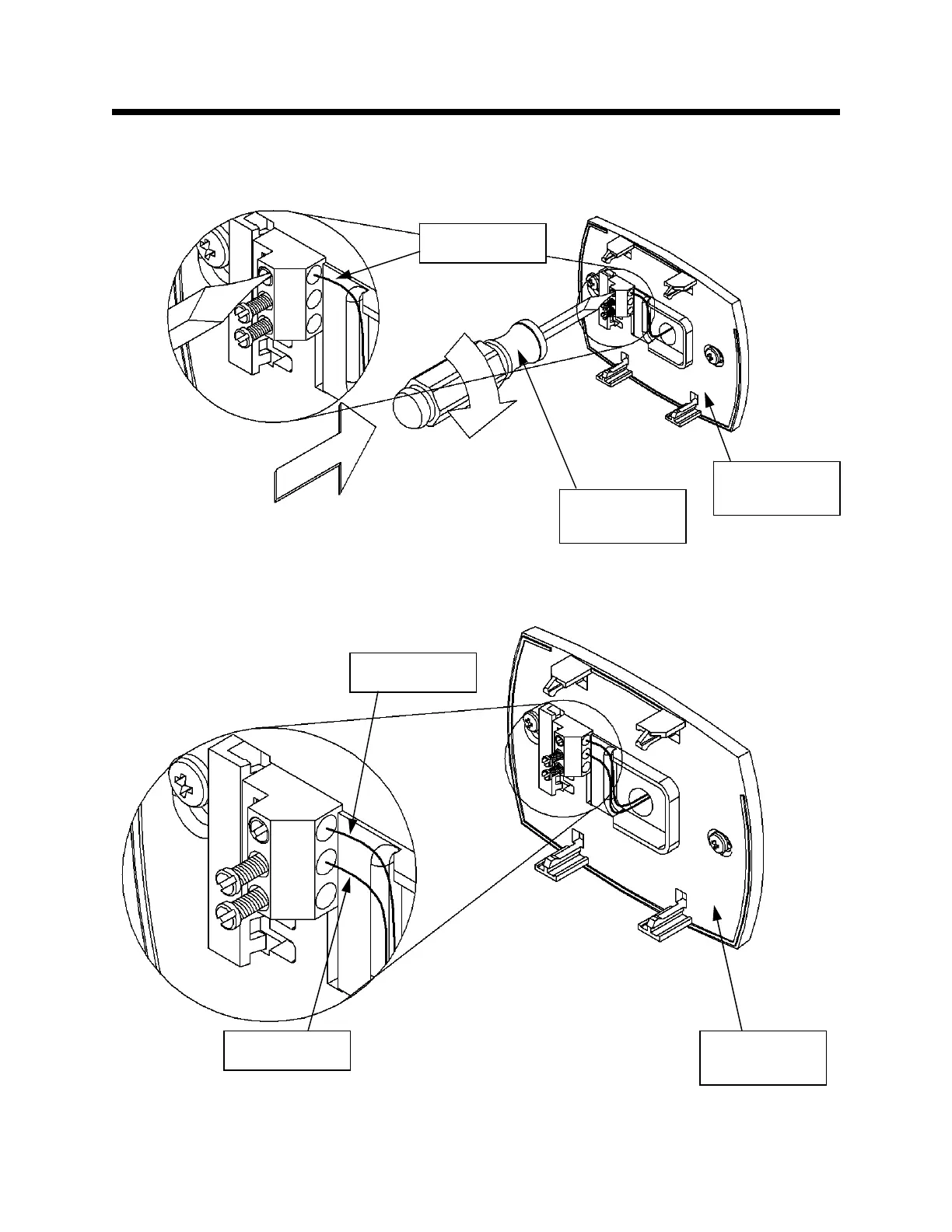

Fasten Wire (A) into its Designated Location – Protective Plate
Step 15: Tighten the slotted screw in the top terminal location on the Protective Plate. This is shown in
Figure 95.
Install Wire (B) – Protective Plate
Step 16: Using wire (B), insert one end into the middle terminal location on the Protective Plate. This is
shown in Figure 96.
Figure 96
Figure 95
Protective
Plate
Slotted head
screwdriver
Wire (A)
Protective
Plate
Wire (A)
Wire (B)
To Next Page
