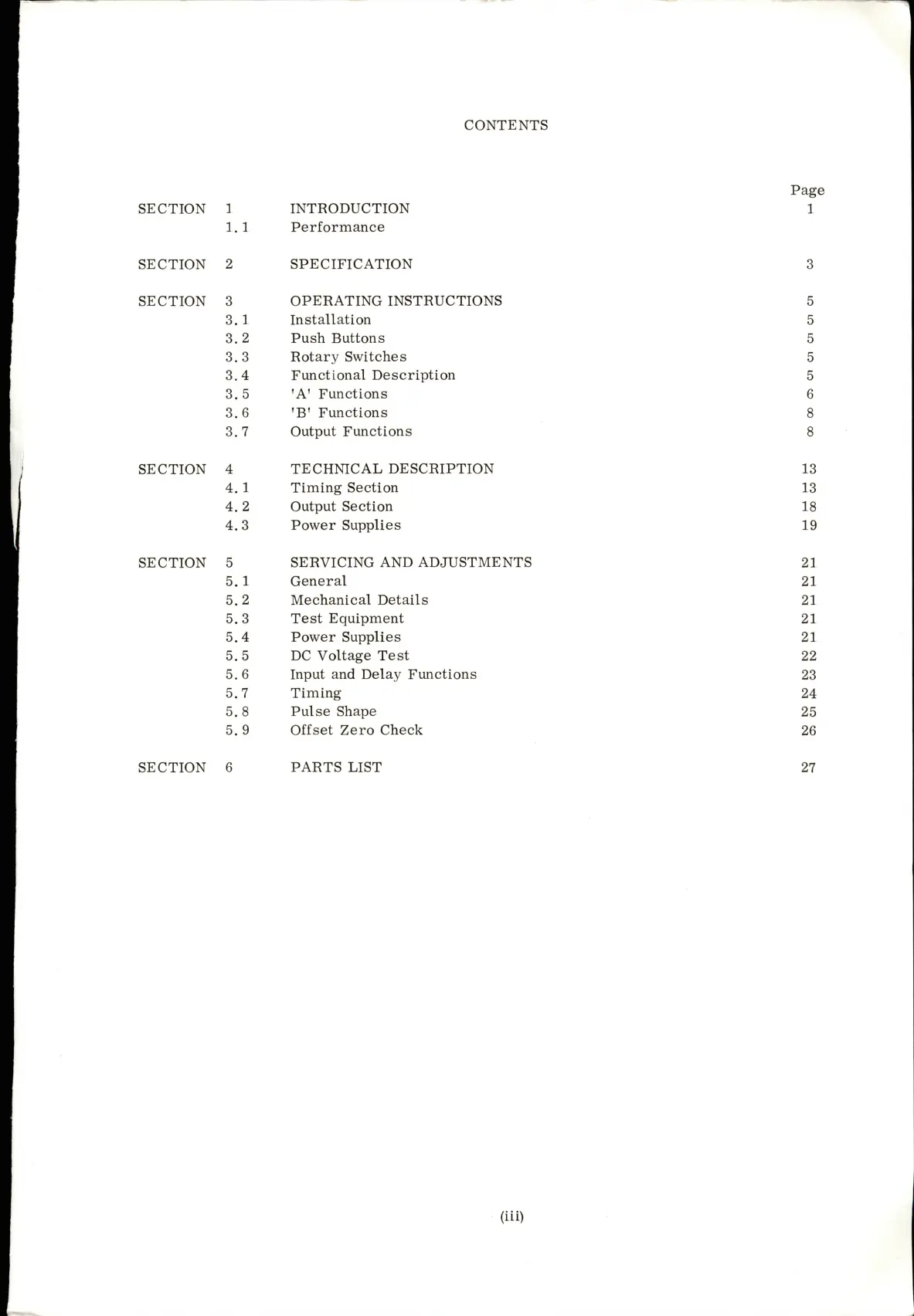

Bradley 233 - Table of Contents

CONTENTS
SECTION 1
1.1
INTRODUCTION
Performance
Page
1
SECTION 2
SPECIFICATION
SECTION 3 OPERATING INSTRUCTIONS
3.1 Installation
3. 2 Push Buttons
3. 3 Rotary Switches
3.4 Functional Description
3.5 'A' Functions
3. 6 'B' Functions
3. 7 Output Functions
SECTION 4 TECHNICAL DESCRIPTION
4.1 Timing Section
4. 2 Output Section
4.3 Power Supplies
SECTION 5 SERVICING AND ADJUSTMENTS
5.1 General
5.2 Mechanical Details
5. 3 Test Equipment
5.4 Power Supplies
5. 5 DC Voltage Test
5. 6 Input and Delay Functions
5.7 Timing
5. 8 Pulse Shape
5. 9 Offset Zero Check
13
13
18
19
21
21
21
21
21
22
23
24
25
26
SECTION 6
PARTS LIST
27
