Installation
4
7/18/2012
2

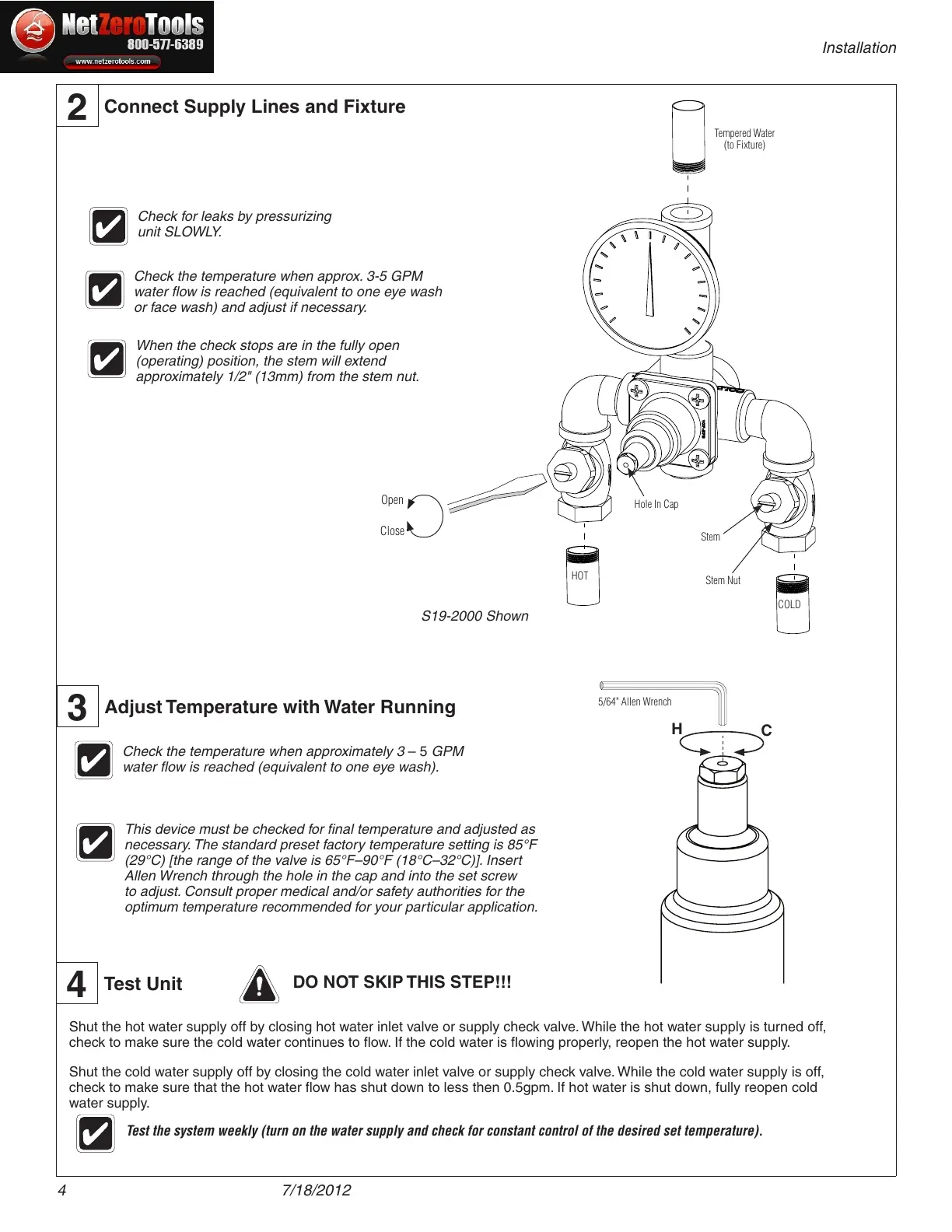

Connect Supply Lines and Fixture
3
Adjust Temperature with Water Running
When the check stops are in the fully open
(oper
a ting) position, the stem will extend
Check for leaks by pressurizing
unit SLO
WLY.
w
ater flow is reached (equivalent to one eye wash
or face wash) and adjust if necessary.
– 5
w
ater flow is reached (equivalent to one eye wash).
Tempered Water
(to Fixture)
HOT
COLD
Stem Nut
C
H
Open
Close
4
Test Unit
DO NOT SKIP THIS STEP!!!
This device must be checked for final temperature and adjusted as
necessar
y. The standard preset factory temperature setting is 85°F
Allen Wrench through the hole in the cap and into the set screw
to adjust. Consult proper medical and/or safety authorities for the
optimum temperature recommended for your particular application.
5/64" Allen Wrench
S19-2000 Sho
wn
Test the system weekly (turn on the water supply and check for constant control of the desired set temperature).
Hole In Cap
Stem
