Installation S19-320, S19-320C
Bradley Corporation • 215-693 Rev. H; EN 04-572 2/9/05

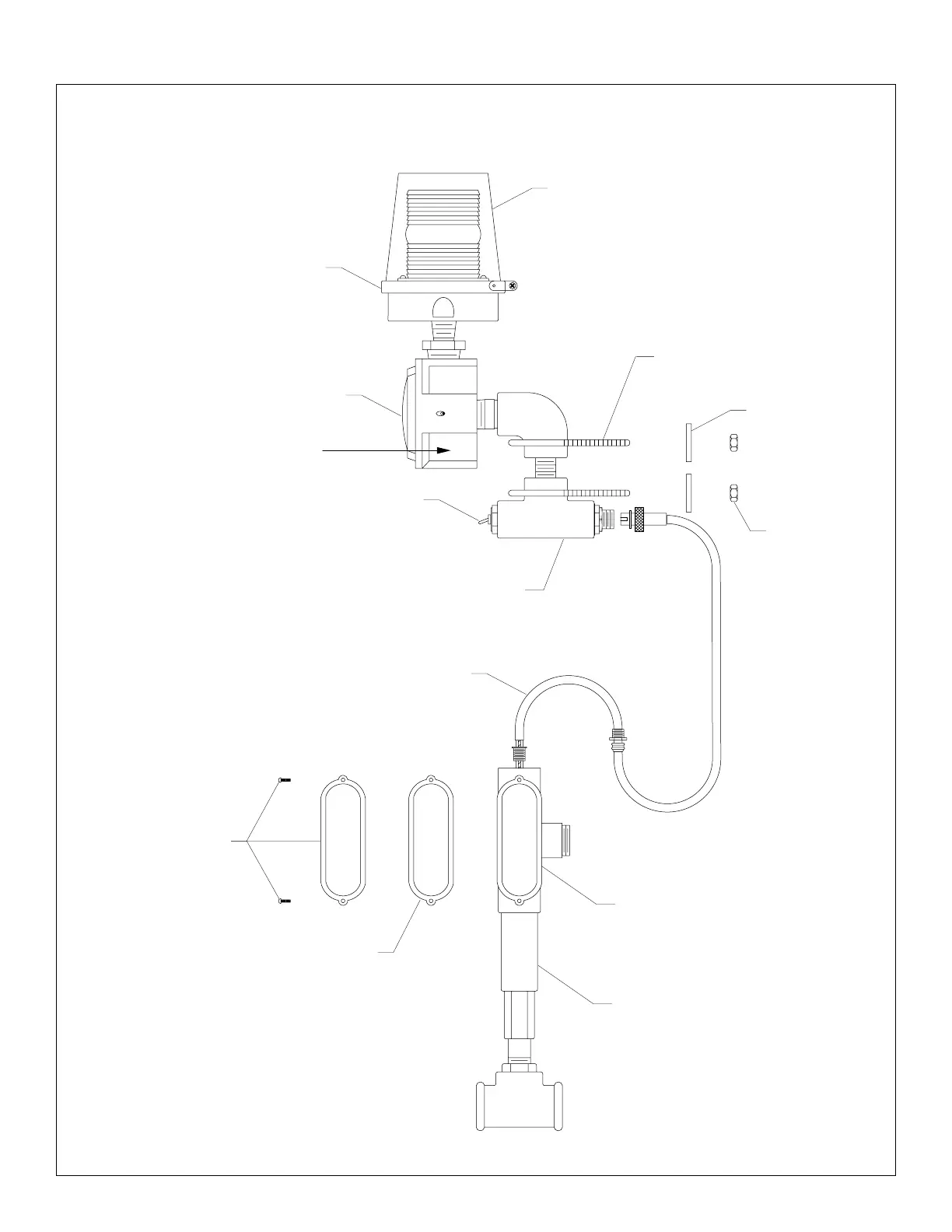

Assembly of Components and Parts List
DUST COVER
(107-460)
STROBELIGHT
(269-525)
ALARM HORN
(269-526)
PLATE (qty. 2)
(140-511)
NUT (qty. 4)
(161-065)
U-BOLT (qty. 2)
(269-594)
ALARM HORN
CUT-OUT SWITCH
(269-527)
SHOWN ROTATED 90˚
FOR CLARITY
WATERPROOF CABLE WITH
QUICK-CONNECT COUPLING
6-foot/1829mm (269-524)
12-foot/3658mm (269-1249)
WATERPROOF
JUNCTION BOX
(269-1422)
FLOW SWITCH
(269-1421)
GASKET
(269-520)
COVER ASSEMBLY
WITH SCREWS
(269-521)
POWER
SUPPLY
