Bradyprinter 200MVP and 300MVP User’s Guide 95
56,QWHUIDFH

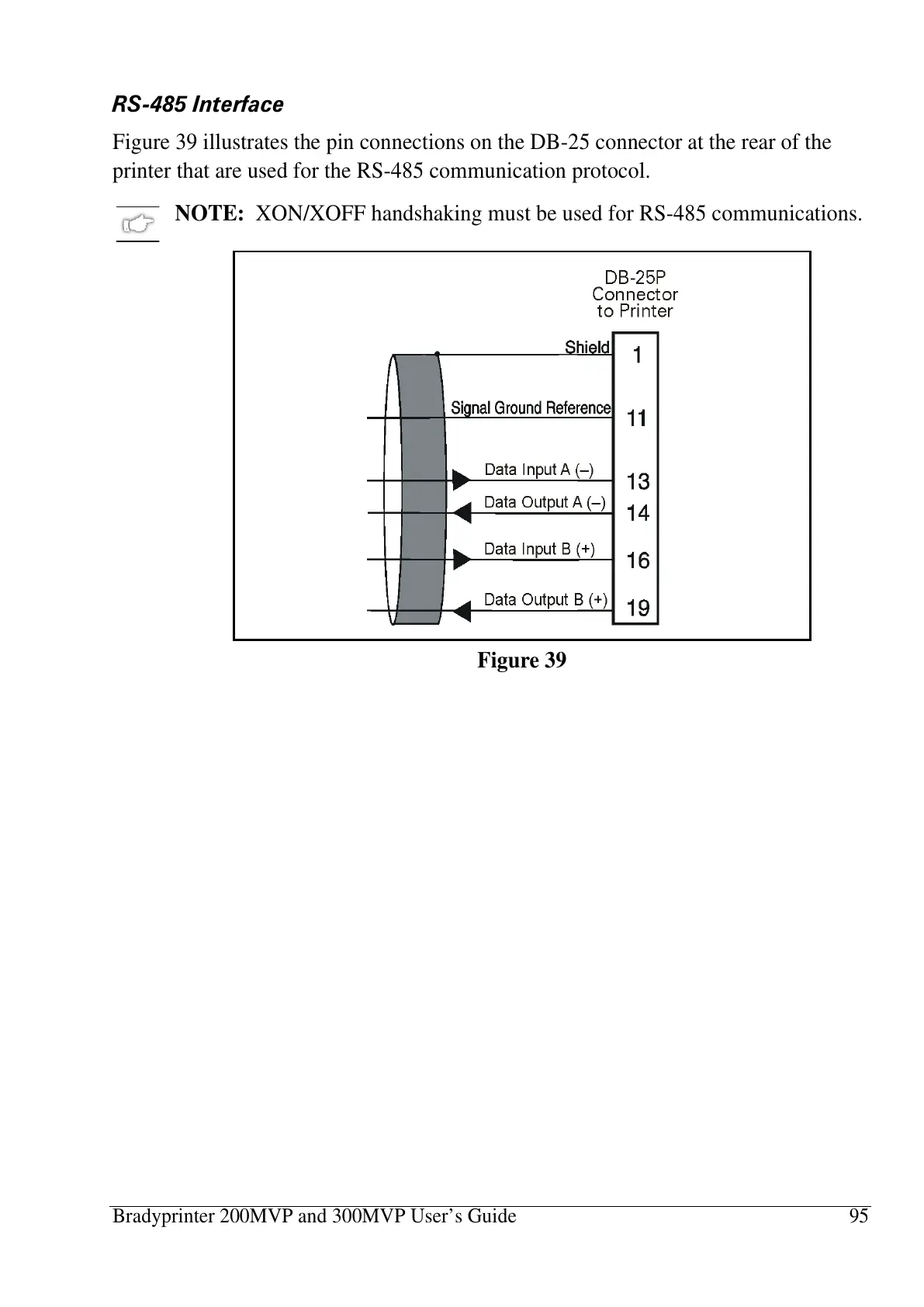

Figure 39 illustrates the pin connections on the DB-25 connector at the rear of the
printer that are used for the RS-485 communication protocol.
NOTE: XON/XOFF handshaking must be used for RS-485 communications.
