Bradyprinter 200MVP and 300MVP User’s Guide 27

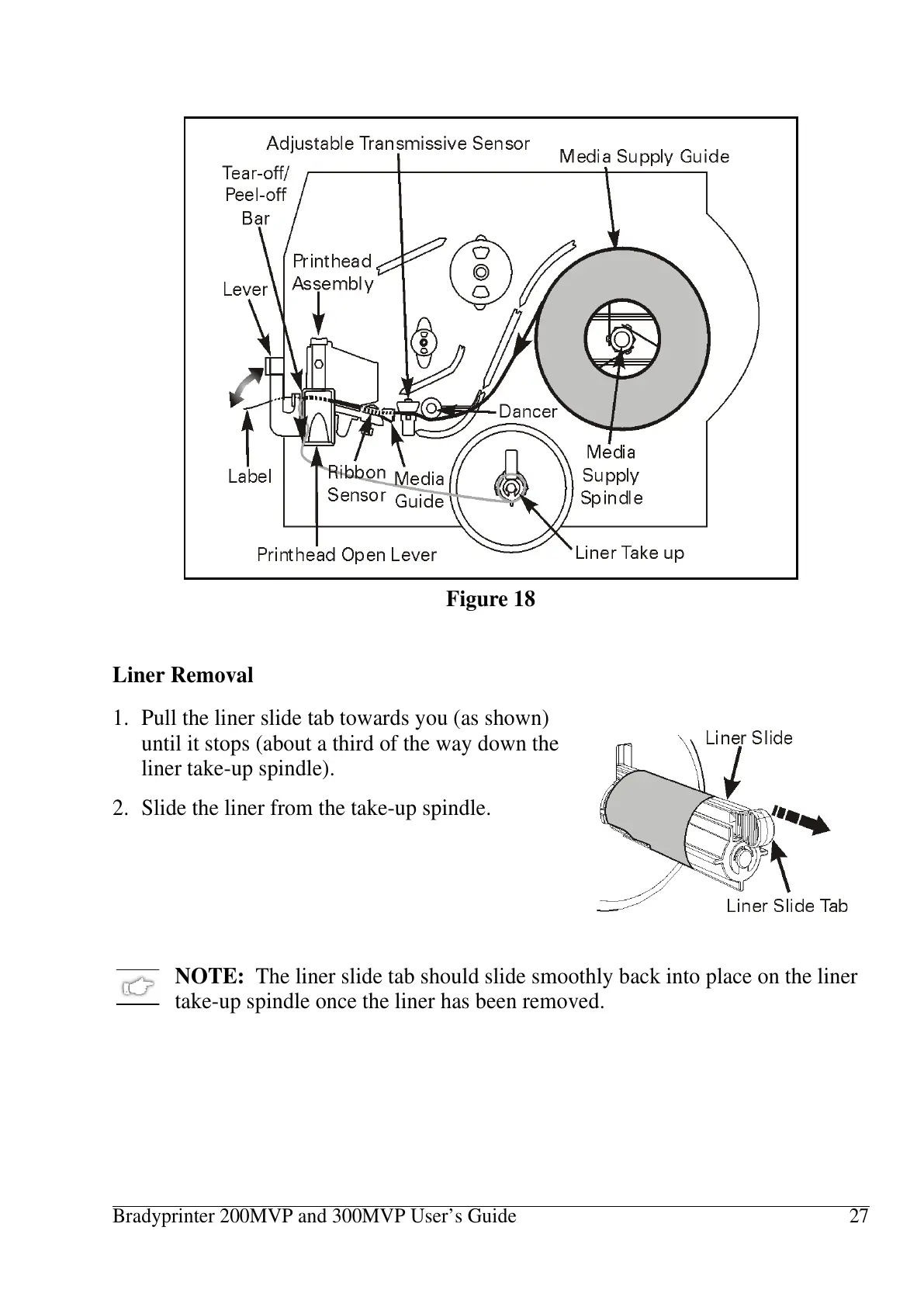

Liner Removal
1. Pull the liner slide tab towards you (as shown)
until it stops (about a third of the way down the
liner take-up spindle).
2. Slide the liner from the take-up spindle.
NOTE: The liner slide tab should slide smoothly back into place on the liner
take-up spindle once the liner has been removed.
Figure 18
