Bradyprinter 200MVP and 300MVP User’s Guide 29
Backing Removal
1. Cut the backing material prior to where it winds onto the take-up spindle.
2. Rotate the take-up spindle until the rewind media guide is in the “12 o’clock”
position.
3. Loosen the thumbscrew and slide out the rewind media guide to the end of the
take-up spindle.
4. Slide the core and backing material from the take-up spindle.

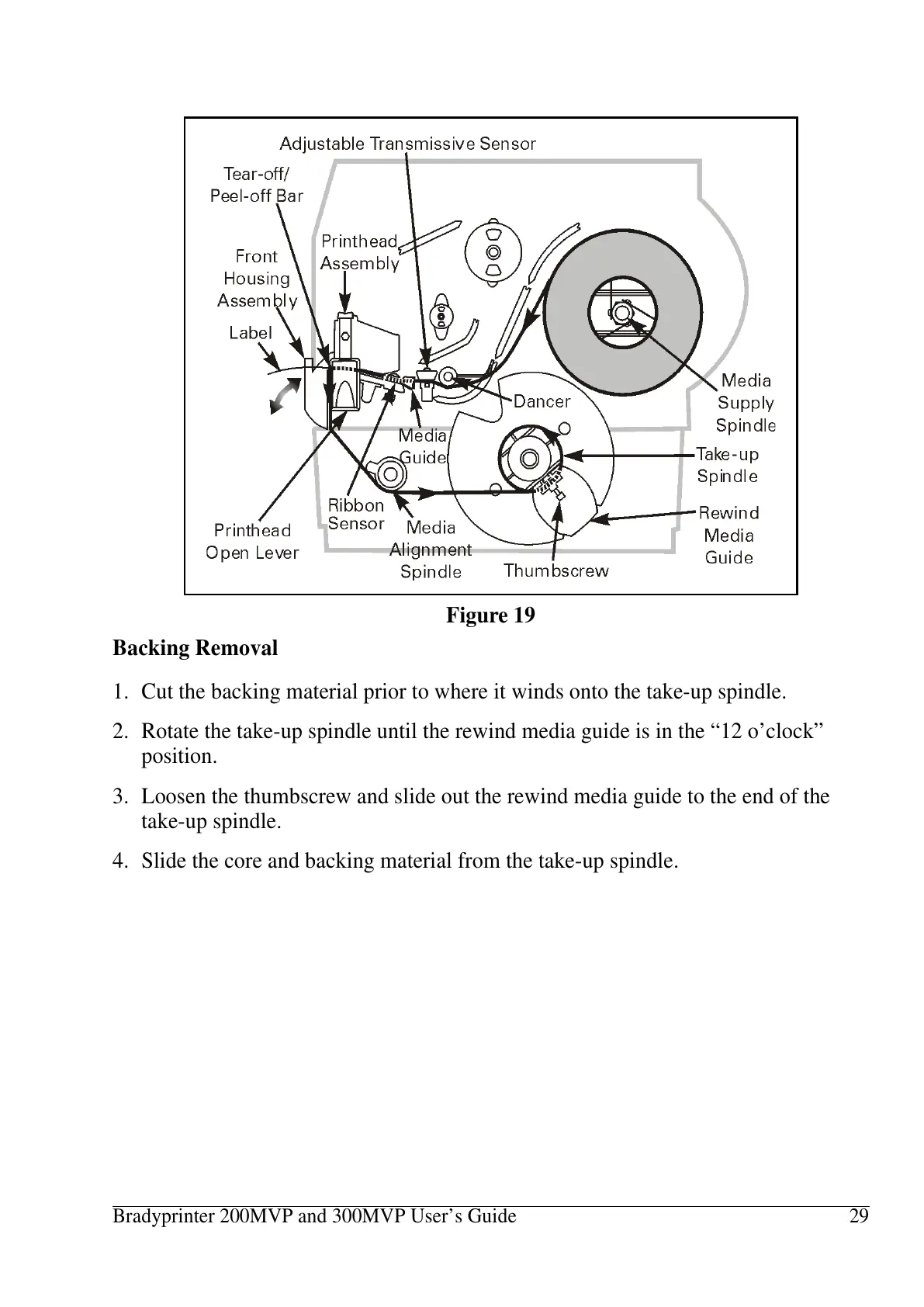

Figure 19
