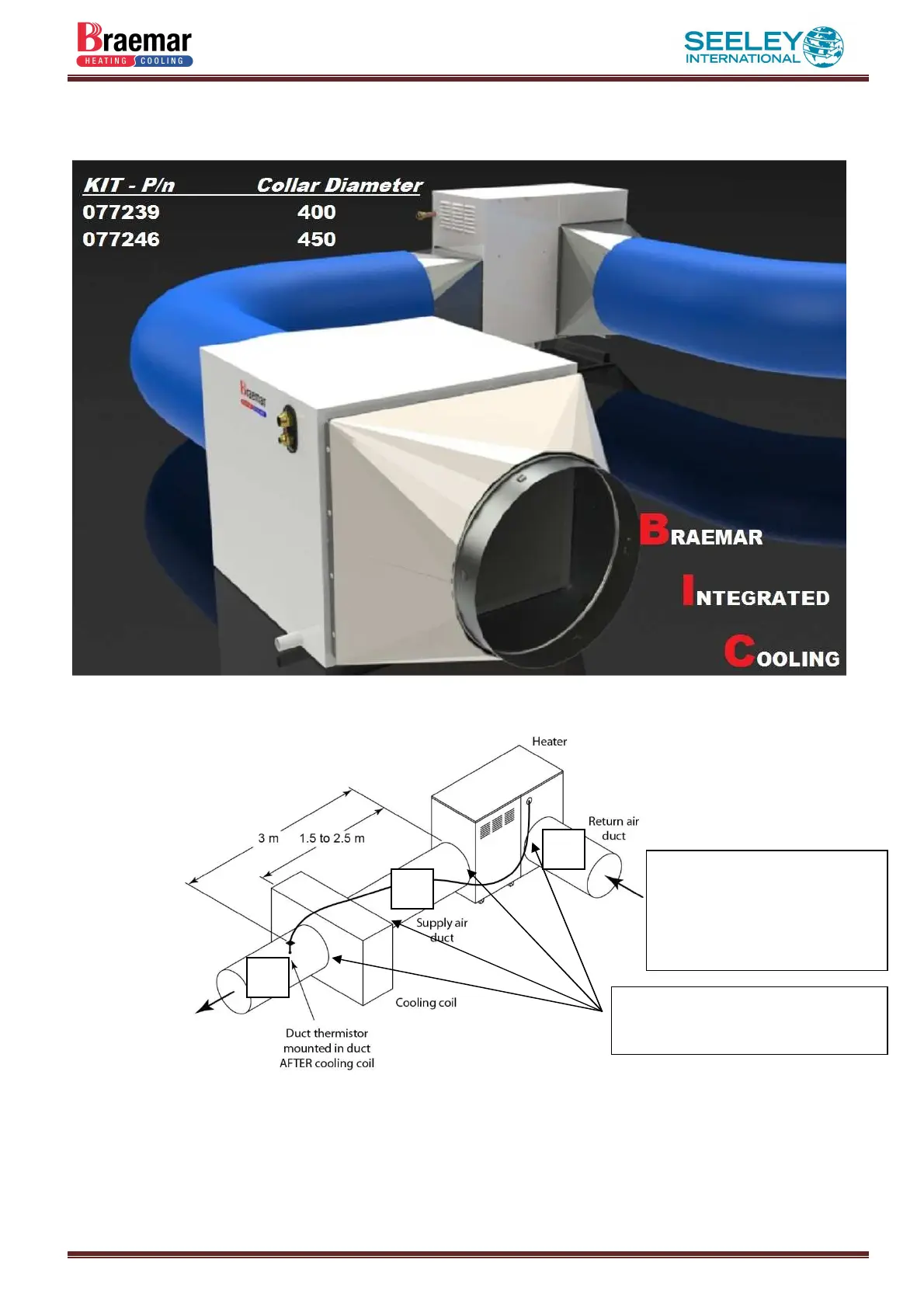

INDOOR COOLING COIL UNIT INSTALLATION
MAKE SURE THE COOLING COIL IS INSTALLED WITH AIRFLOW IN THE DIRECTION
AS SHOWN ON THE DECAL ON THE UNIT.
Seeley recommends the use of a safe tray under the cooling coil, complete with a separate drain.
• The cooling coil can be mounted on a suitable base. Ensure that the base is level and that the drains are free
to be piped correctly with enough height to allow for condensate trap and fall to waste.
Alternative method – hanging from above;
• Measure and mark the position for the suspension bolts or rods. Be sure the position does not interfere
with anything and there is sufficient height to allow for adequate drainage from the unit.
Return air connection
is NOT permitted on
the motor side of the
fan assembly.
Seeley supplied duct
transitions MUST be used!
