ASSEMBLY INSTRUCTIONS

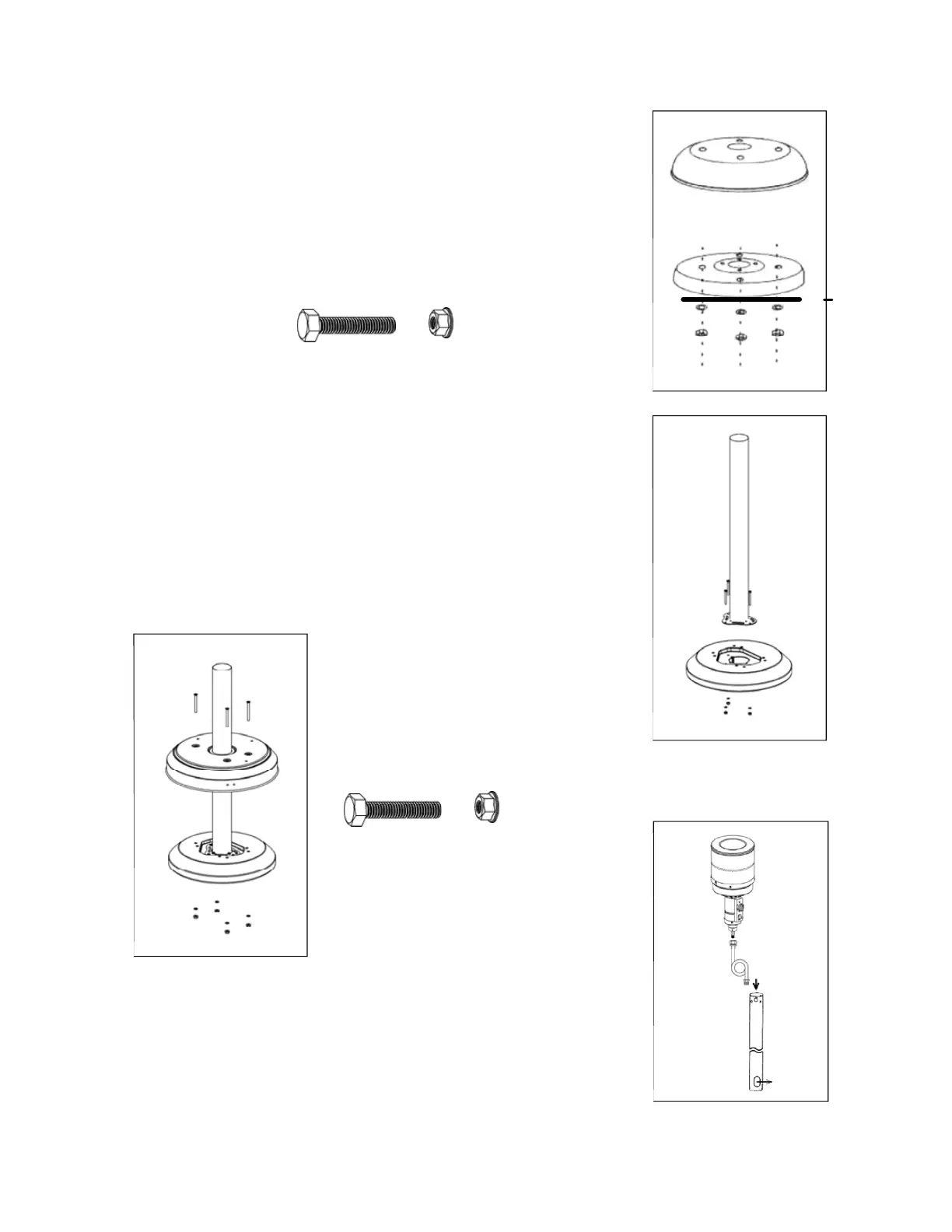

Figure 2
Figure 5
A. Disassemble the base . Unscrew 4pcs M8 bolts and
4pcs M8x55 bolts from weighted box and base (Figure 2).
Do not remove bottom black plate (please see page 6,
Figure (i & ii) to identify black plate). This plate will act
as a washer for the nuts and will assist in increasing the
stability of the pole.
B. Place the post on the top of the weighted box, with black
plate attached on bottom. Then connect them with 6pcs
M6x55 bolts and 6pcs M6 bolts (Figure 3).
C. Attach the base over the post to the weighted bo x with 4pcs
M8 bolts and 4pcs M8x55 bolts (Figure 4). Do not over-
tighten the bolts, or the black plate will warp underneath.
D. Attach natural gas hose (not included with heater) to
heater head with a wrench. Leak-test connection. Run other
end of hose down pole and out lower access hole (Figure 5).
Figure 3
Figure 4
To Next Page
