Page 17
Orifice
Pump Side
Cylinder
BACKUP
PUMP
2500
PSI
Down
Valve
1900
PSI
PUMP
Opposite
Pump
Cylinder
M
Orifice
800
PSI
Secondary
Valve
Folding
Relief Valve
Lifting
Relief Valve
Fixed Displacement
Pump
Vented Reservoir
Backup Pump
Single Acting Cylinder
Check Valve
Manual
Shutoff Valve
2 Way 2 Position
Solenoid Valve
Pressure Compensated
Flow Control
Relief Valve
Description Symbol Description Symbol
Filter Screen
Unfold Orifice
M
Pump Motor
Hydraulic Port

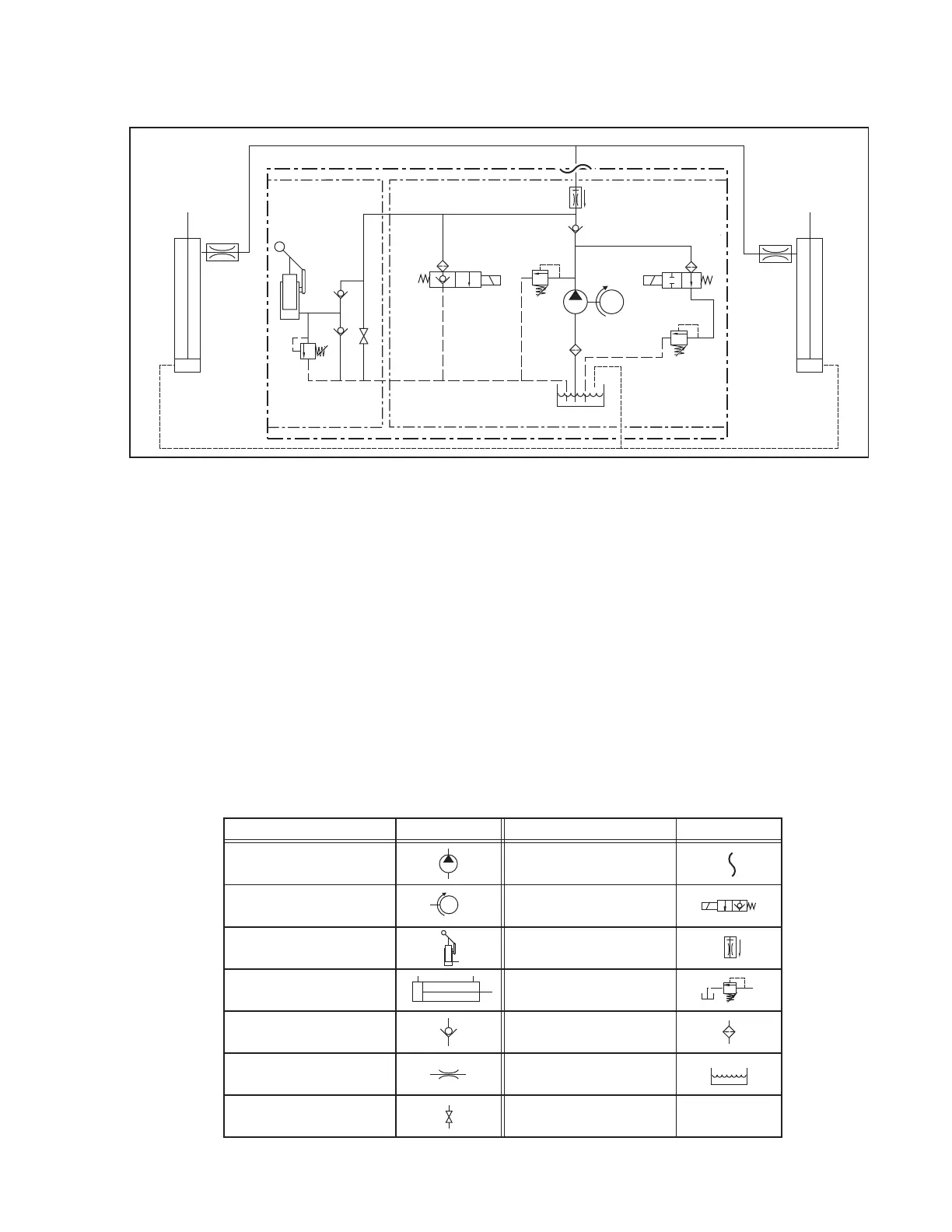

Hydraulic Schematic
