Braun NCL Century 2 Series Manual

Page 6

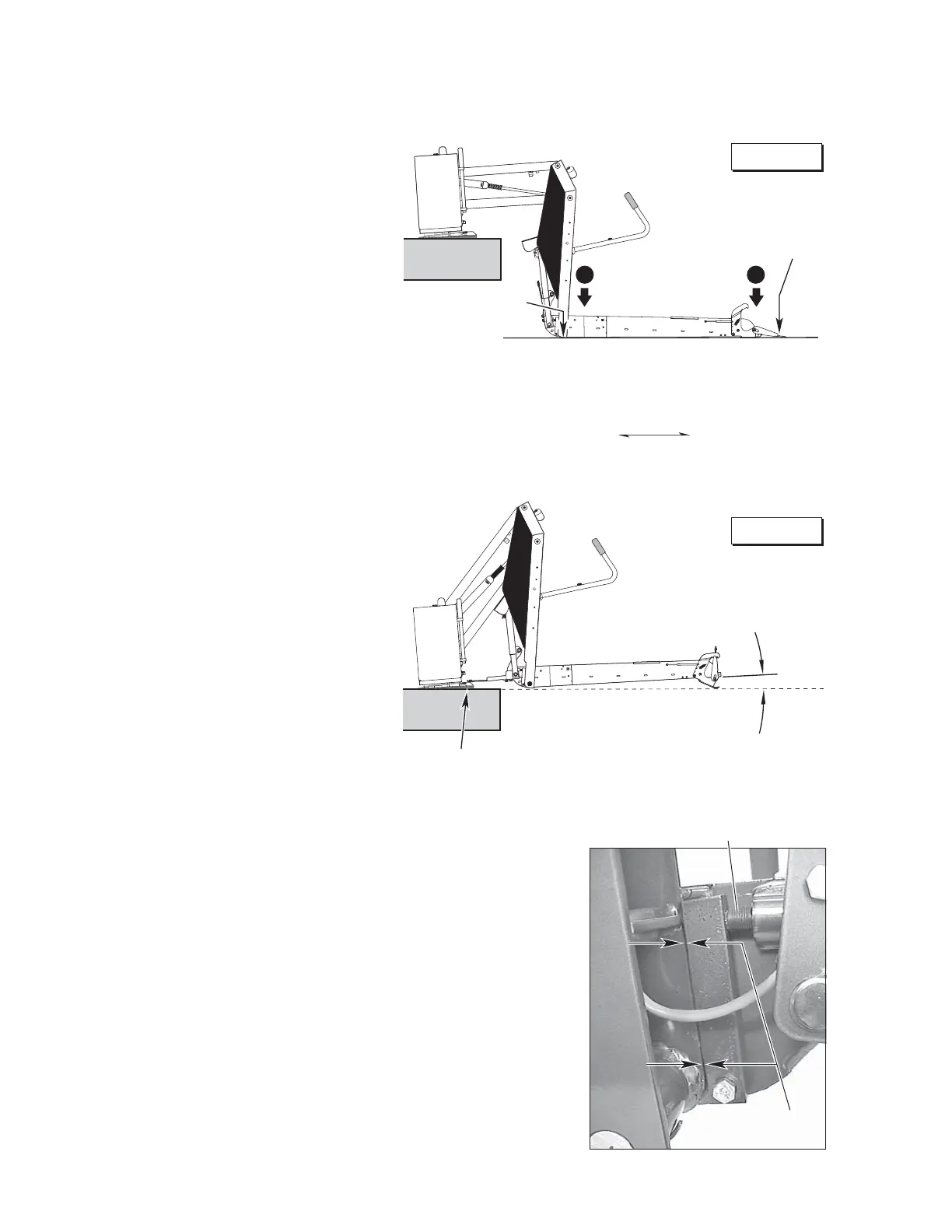

Platform Angle Adjustment
Figure A
Lowering Sequence Requirements
Adjustment Procedure:
Platform angle adjustment Allen
screws are provided on each side
of the platform (see photo at right
and details on following page).
Turn adjustment screws clock-
wise to raise the outboard end
of the platform. Turn adjustment
screws counterclockwise to lower
the outboard end of the platform.
Both adjustment screws must be
adjusted equally. Apply Loctite
®
to adjustment screws following
adjustment.
Platform Stop Blocks: When
adjusting platform angle, en-
sure both stop blocks are mak-
ing full contact with the vertical
arms (see photo at right and
details on following page).
Floor Level Adjustment: Fol-
lowing platform angle adjust-
ment, set platform floor level
positioning as detailed in Tower
Microswitch Adjustment.
Stop
Block
Vertical
Arm
Adjustment Screw
Stop blocks must
make full contact.
(Heel) Inboard
Outboard (Toe)
Heel
Ground Level
Barrier must
unfold fully.
Platform heel
must lower fully.
Barrier
Floor
Level
Wedges (option)
Figure B
2 1
1. The outboard end (toe)
of the platform must contact
the ground first to ensure the
spring-loaded outer barrier
unfolds fully. See Figure A.
2. The inboard end (heel) of
the platform must lower fully
(vertical arms must contact
ground when fully lowered).
See Figure A.
The angle of the platform at
ground level directly affects
the angle of the platform when
positioned at floor level.
Raise the platform to floor
level. Note the angle of the
platform.
The platform at floor level
should have a slight upward
angle as shown in Figure B.
Adjust platform angle as de-
tailed below.
