Page 20
3"
Note: Platform must raise
approximately three inches
before latch engages fully.

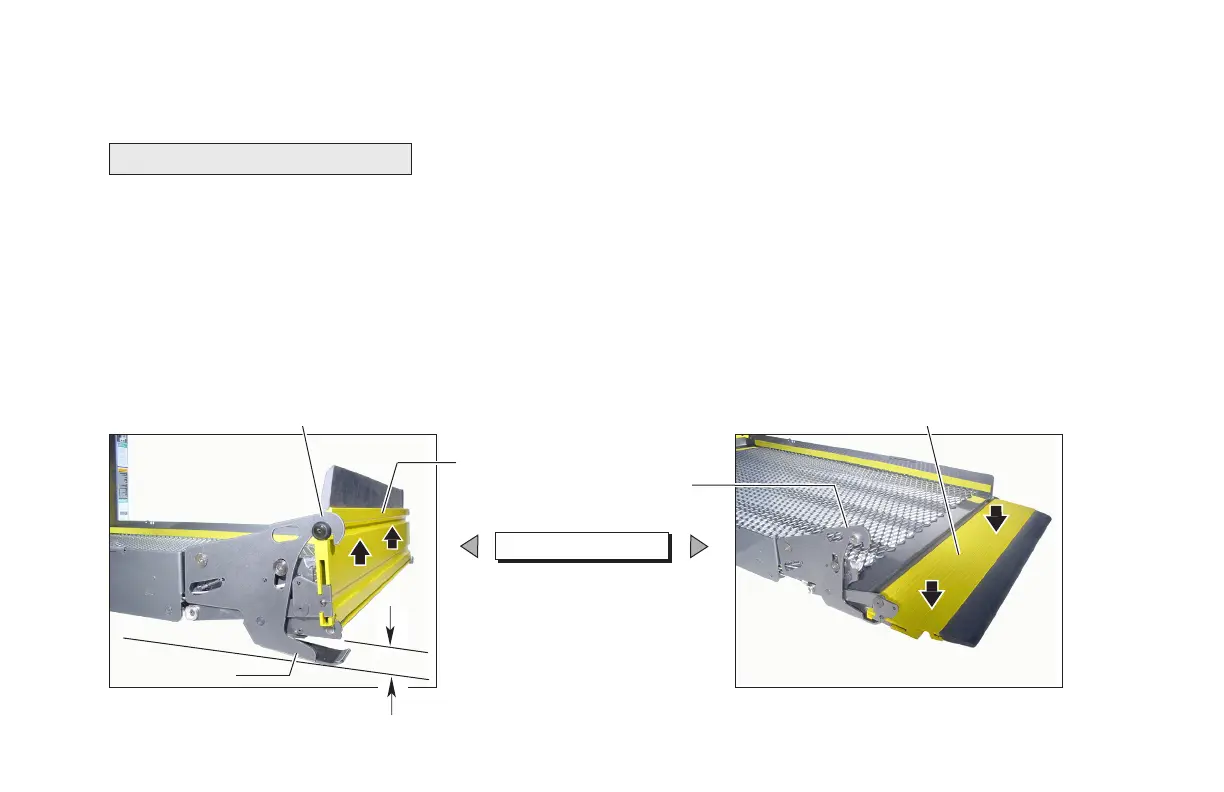

Outer Barrier
Fully-Unfolded Barrier (Ramp position)
Fully-Folded
Outer Barrier
(Up-vertical)
Disengaged
Outer Barrier
Latch
Operation Notes and Details
Lift Features (continued)
Discontinue lift operation immedi-
ately if the outer barrier does not
operate properly.
Outer Barrier Latch: A
Latch Foot
spring-loaded latch engages the
outer barrier when the barrier ro-
tates upward from ramp position
to the vertical position (UP switch
is pressed to raise the platform
above ground level). Note: The
platform must raise approximate-
ly three inches before the latch
engages fully (see photos on
previous page).
Interlock: Lift platform move-
ment shall be interrupted unless
the outer barrier is raised (vertical
position) and the outer barrier
latch is positively engaged.
Fully-Engaged Outboard Barrier Latch
To Next Page
