SERIES 6A
ADVANCED SETUP GUIDE

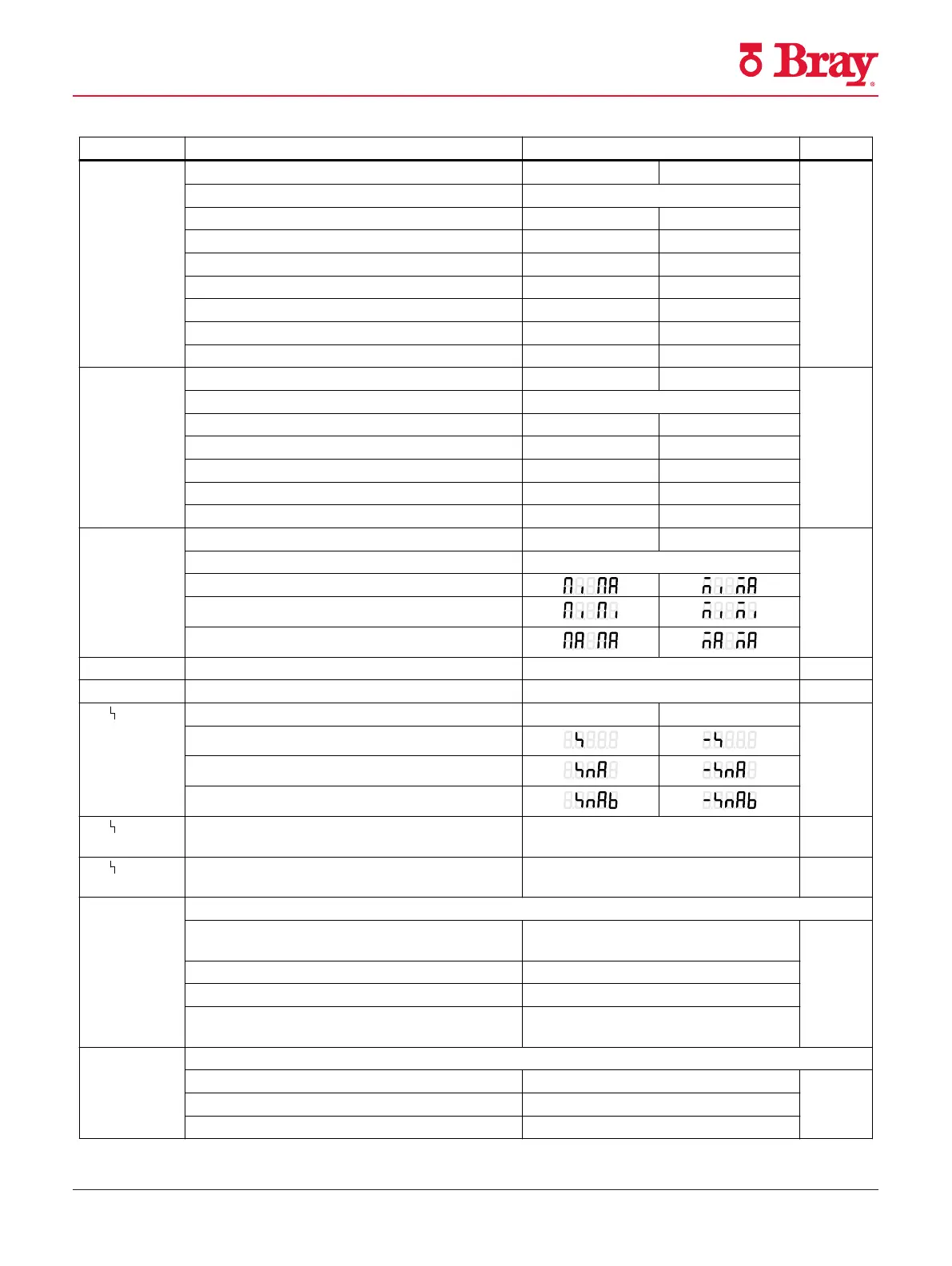

Parameter Function Parameter values Unit
42.DI1
5))
Function digital input DI1 NO contact NC contact
None OFF
Message only on -on
Block con󹪝guration bLoc1
Block con󹪝guring and manual operation bLoc2
Move process valve to position YE uP -uP
Move process valve to position YA doWn -doWn
Block movement StoP -StoP
Partial Stroke Test PSt -PSt
43.DI2
5)
Function digital input DI2 NO contact NC contact
None OFF
Message only on -on
Move process valve to position YE uP -uP
Move process valve to position YA doWn -doWn
Block movement StoP -StoP
Partial Stroke Test PSt -PSt
44.AFCT
6)
Alarm function Normal Inverted
None OFF
A1 = Min, A2 = Max
A1 = Min, A2 = Min
A1 = Max, A2 = Max
45.A1 Response threshold, alarm 1 0.0 ... 10.0 ... 100.0 %
46.A2 Response threshold, alarm 2 0.0 ... 90.0 ... 100.0 %
47.
FCT
6)
Function of fault message output Normal Inverted
Fault
Fault + not automatic
7)
Fault + not automatic + DI
7)
48. TIM Monitoring period for setting of fault message
'Control deviation'
Auto / 0 ... 100 s
49. LIM Response threshold for fault message 'Control
deviation'
Auto / 0 ... 100 %
50.PRST Preset
Reset all parameters which can be reset by "Init",
"PArA" and "diAg".
ALL
Reset parameters 'YFCT' to 'INITM'. Init
Reset parameters 'SCUR' to 'LIM'. PArA
Reset parameters A to U of the extended diagnostics
function as well as parameter 'XDIAG'.
diAg
51.PNEUM Pneumatics type
Standard pneumatic block Std
Fail in Place pneumatic block FIP
Operation with boosters booSt
Parameter assignment
8.3 Parameter overview
SIPART PS2 with 4 to 20 mA/HART
136 Operating Instructions, 10/2020, A5E00074631-AF
