6 of 52© 2021 BRAY INTERNATIONAL, INC. ALL RIGHTS RESERVED. BRAY.COM EN_TSM-2004-6A Advanced_Set-Up_20211012
SERIES 6A
ADVANCED SETUP GUIDE

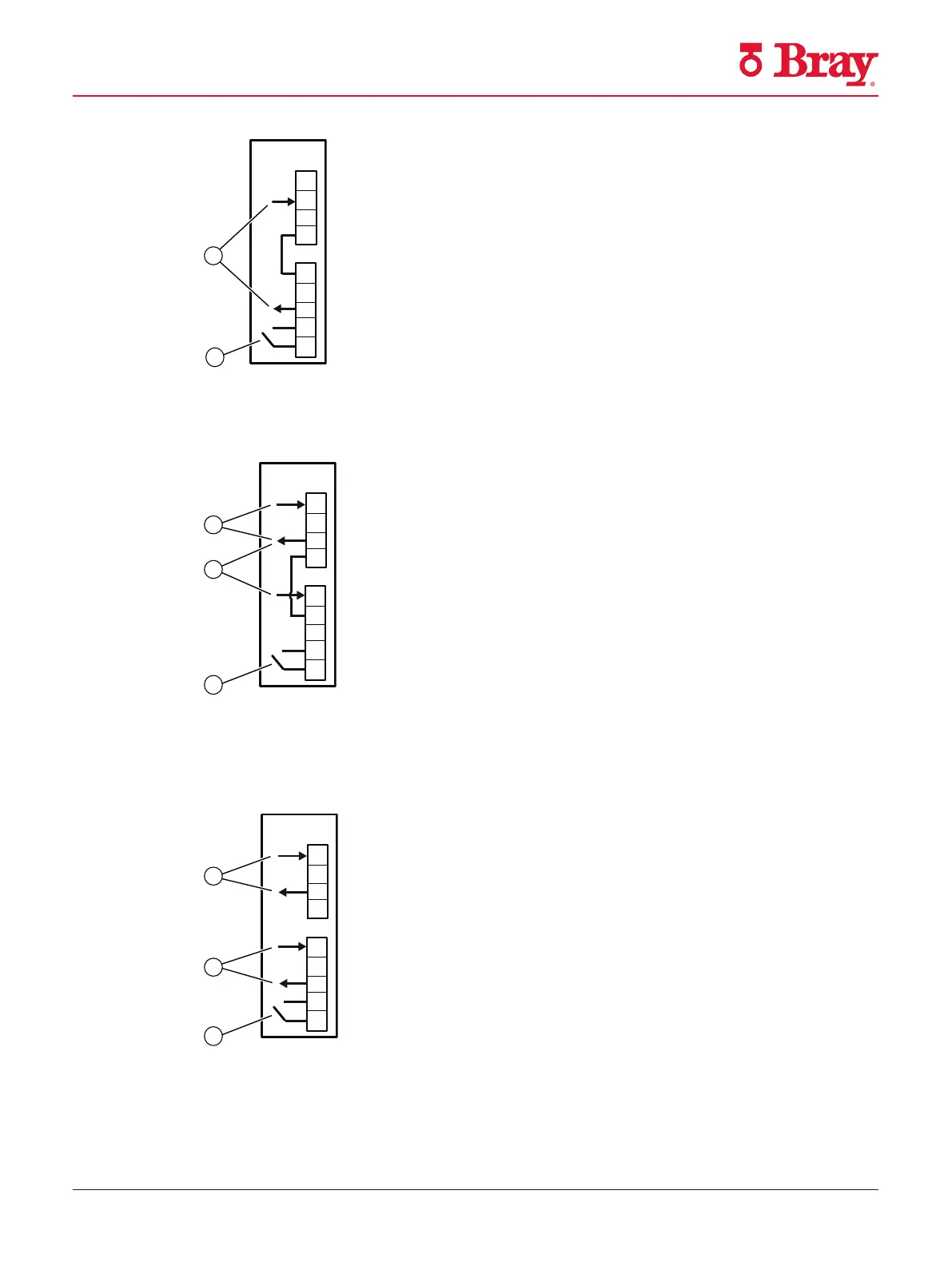

① Setpoint 4 ... 20 mA, terminals 3 and 8
② Digital input DI1, terminals 9 and 10
Figure 6 Connection diagram for electronics, 2/3/4-wire, with wiring con iguration 2-wire
① Power source 18 ... 30 V, terminals 2 and 4
② Setpoint 0/4 ... 20 mA, terminals 6 and 4
③ Digital input DI1, terminals 9 and 10
Figure 7 Connection diagram for electronics, 2/3/4-wire, with wiring con iguration 3-wire
① Power source 18 ... 30 V, terminals 2 and 4
② Setpoint 0/4 ... 20 mA, terminals 6 and 8
③ Digital input DI1
Figure 8 Connection diagram for electronics, 2/3/4-wire, with wiring con iguration 4-wire
Connection
5.2 Electrical wiring
SIPART PS2 with 4 to 20 mA/HART
80 Operating Instructions, 10/2020, A5E00074631-AF
