Chapter 2: Bed Cabinet assembly.

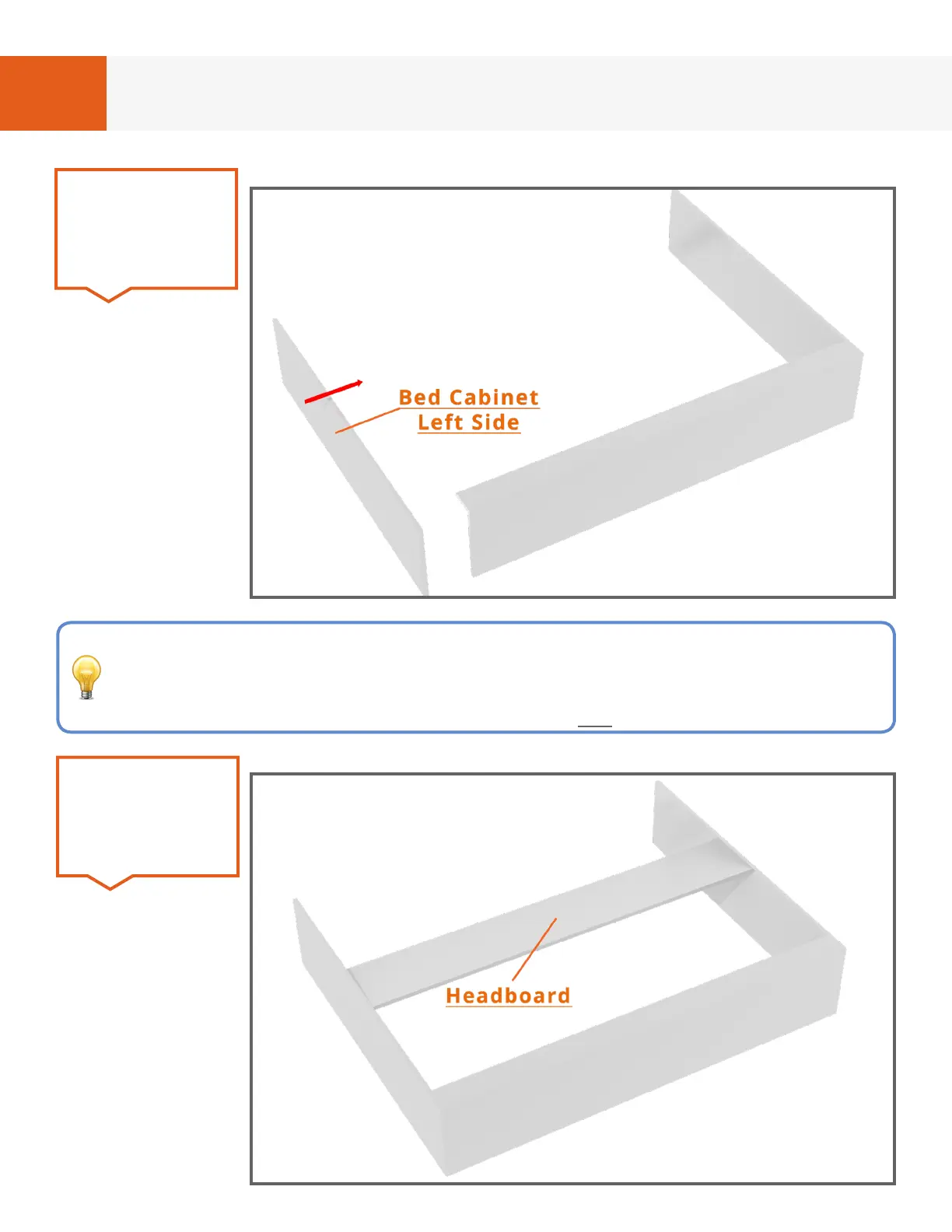

Slide “Bed
Cabinet Left
Side” as shown
in Fig. 2C in
direction of
arrow and
tighten all cam
ttings.
STEP 3
FIG. 2C
Attach
“Headboard” as
shown in Fig. 2D
and tighten cam
ttings.
The Headboard
will normally sit
at a slight angle.
FIG. 2D
STEP 4
From the perspective shown, Cam ttings on the Headboard should be facing
up, and tighten from the top side. If assembling vertically, these cam ttings
should face the wall the Bed Cabinet will attach to. Once assembled, cam
ttings on these parts should not be visible.
