STANDARD BELT REPLACEMENT
MODELS:
IE, IER,
and IEX
continued

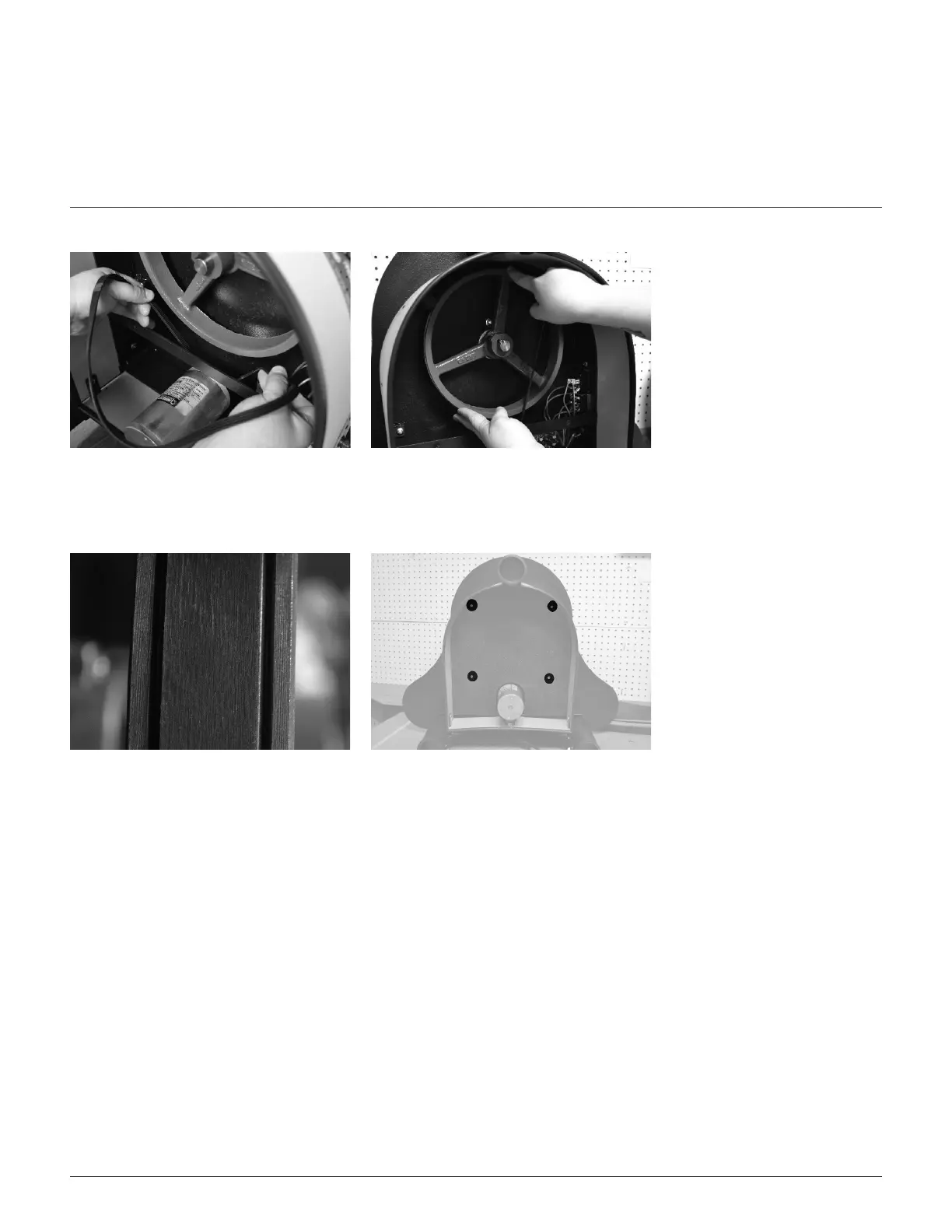

5. Install new belt by tting the new belt over
the smaller motor pulley rst.
7. Check that the belt is centered on both
pulleys. NOTE: It is common for the pulleys
to have more grooves than the belts.
6. Lay one half of the grooved side of the belt
on the large pulley and start turning the belt
and pulley at the same time to “roll” the belt
onto the large pulley.
8. Place the belt guard panel back in position,
then attach with the four screws removed in
step 2.
