MAINTENANCE:
SLIDE ADJUSTMENT
MODEL:
No. 16
1. If there is side play in the wheel or the slides
are too tight for ease of height adjustment,
troubleshoot the problem by rst removing
the acorn nuts.
2. Using the allen wrench and the open-end
wrench, hold the set screw in place and
loosen the lock nuts. Adjust the set screws,
either left to loosen or right to tighten. Do
this systematically to all set screws until the
slides have proper tension.
3. Turn the handle and check to ensure
that the problem has been solved. If not,
continue the process of systematically
adjusting the set screws. When there is
proper tension on the slides and the handle
easily adjusts the height of the wheel
without side play, tighten the lock nuts and
thread the acorn nuts back into place.

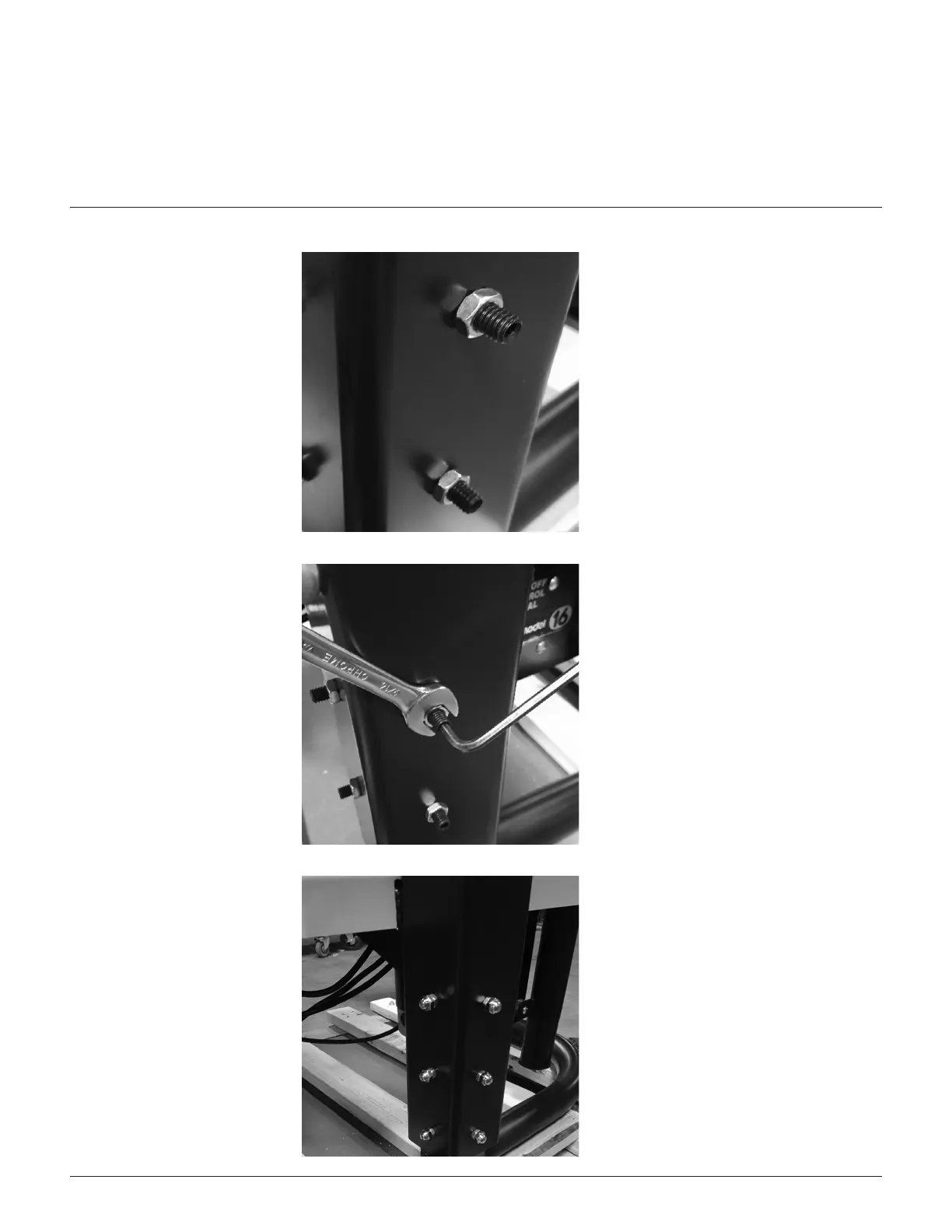

Lock Nut
Set Screw
Open-end
Wrench
Allen
Wrench
Acorn Nut
