MAINTENANCE:

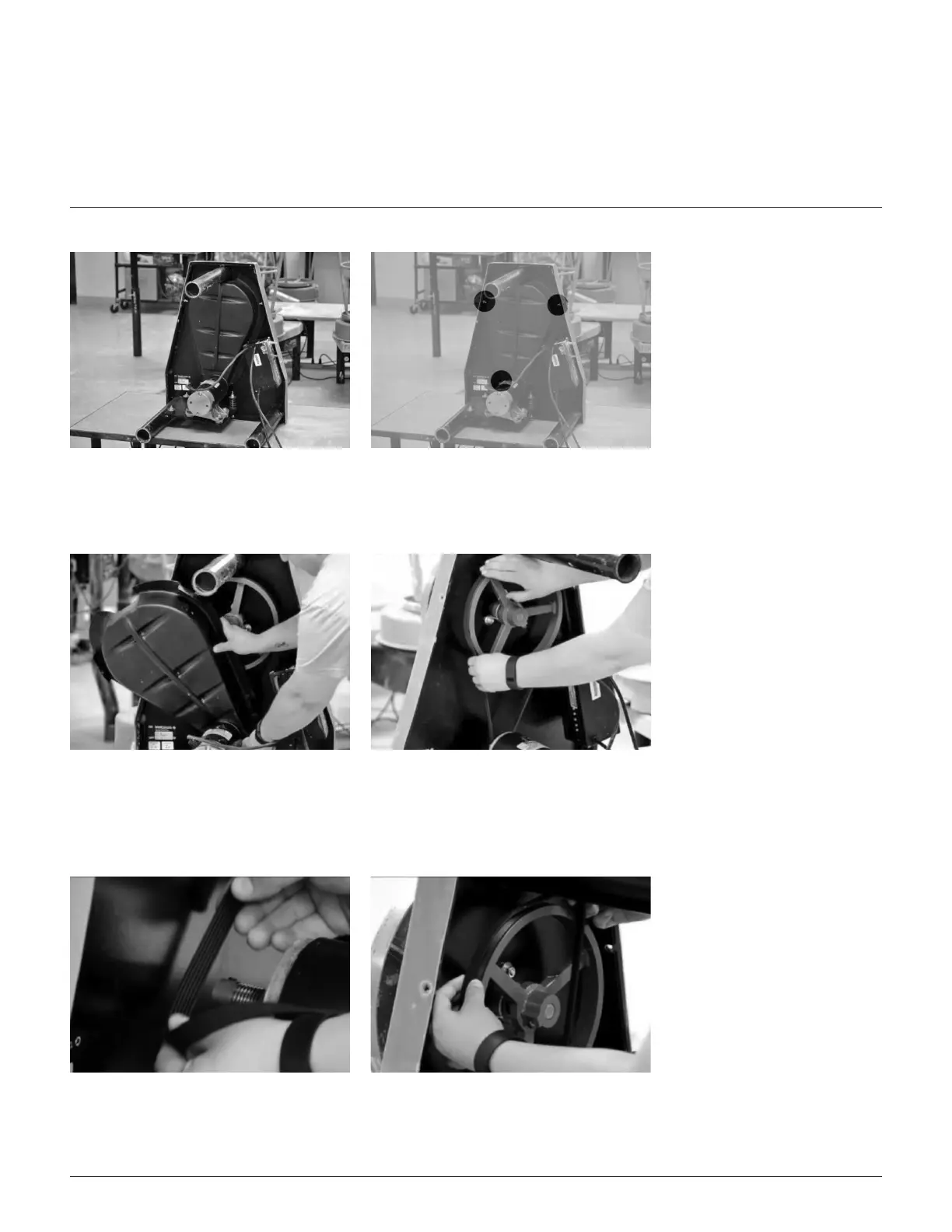

STANDARD BELT REPLACEMENT
1. Turn wheel o and unplug from the power
outlet. Raise the front of the pottery wheel
until the wheel rests on its back legs.
3. Gently pull the top of the belt guard toward
you and twist it to the left. Set belt guard
aside.
2. Locate the belt guard on the bottom of the
wheel. Use a 7/16" wrench to remove the
three nuts and bolts highlighted in photo.
4. ‘Walk” the belt o the large pulley by
grabbing hold of the belt in the space
between the pulleys, then gently pull toward
you while turning the large pulley slowly.
MODELS:
B, C, CXC,
EX, and #16
5. Install new belt by tting the new belt over
the small pulley rst.
6. Lay one half of the grooved side of the belt
on the large pulley and start turning the belt
and pulley at the same time to “roll’ the belt
onto the large pulley.
To Next Page
