ITEM # QTY. PART # DESCRIPTION
45 4 Used for Manufacturing Only Motor Mounting Bolt Retainer
46 8 22306M Motor Mounting Bushing
47 4 1/4 Fender Washer Motor Mounting Fender Wsher
48 4 1/4 Lock Washer Motor Mounting Lock Washer
49 4 1/4-20 Hex Nut Motor Mounting Hex Nut
50 3 22695P Frame Leg Plug
51 2 1/4-20 x 3/4 Hex Bolt Belt Guard Bolt
52 2 1/4 Lock Washer Belt Guard Flat Washer
53 2 1/4 Flat Washer Belt Guard Lock Washer
54 2 1/4-20 Hex Nut Belt Guard Hex Nut
22906Y for Models B, 16 22907A for C Model
55 1 22908C for CXC Model 22912F for EX Model Classic Controller
56 1 Please call for prices and availability Power Cord for Classic Controller
57 1 Please call for prices and availability Power Switch for Classic Controller
58 1 Please call for prices and availability Reversing SwitchClassic Controller
59 2 1/4-20 x 1 Phillips Head Machine Screw Controller Mounting Bolt
60 2 1/4 Star Washer Controller Mounting Star Washer
61 2 1/4-20 Nylok Nut Controller Mounting Nylok Nut
62 1 22035R Foot Pedal Complete
63 1 22278C Foot Pedal Cover
63 1 22858R Electric Sub-assembly for Foot Pedal
63 1 22881S Foot Pedal Tension Hardware & Arm
64 4 22273W (Mtg. Screws Included) Foot Pedal Foot
65 4 6/32 X 3/8 Phillips Head Machine Screw Foot Pedal Foot Mounting Screw
66 1 22945T Foot Pedal Cord
ITEM # QTY. PART # DESCRIPTION
1 1 22508S Frame, 16 Complete
2 2 22851G Arm Supports
3 1 22849F Crank Assembly
4 1 22935H Belt Guard
5 1 22823B Foot Lever with Lever
6 1 22818T Foot Pedal Mounting Bracket
7 4 22847C Caster
8 4 22846D Adjusting Foot
PARTS LIST
MODELS:
B, C, CXC,
EX, and #16
(continued)
MODEL #16
ADDITIONAL
PARTS
MODEL #16

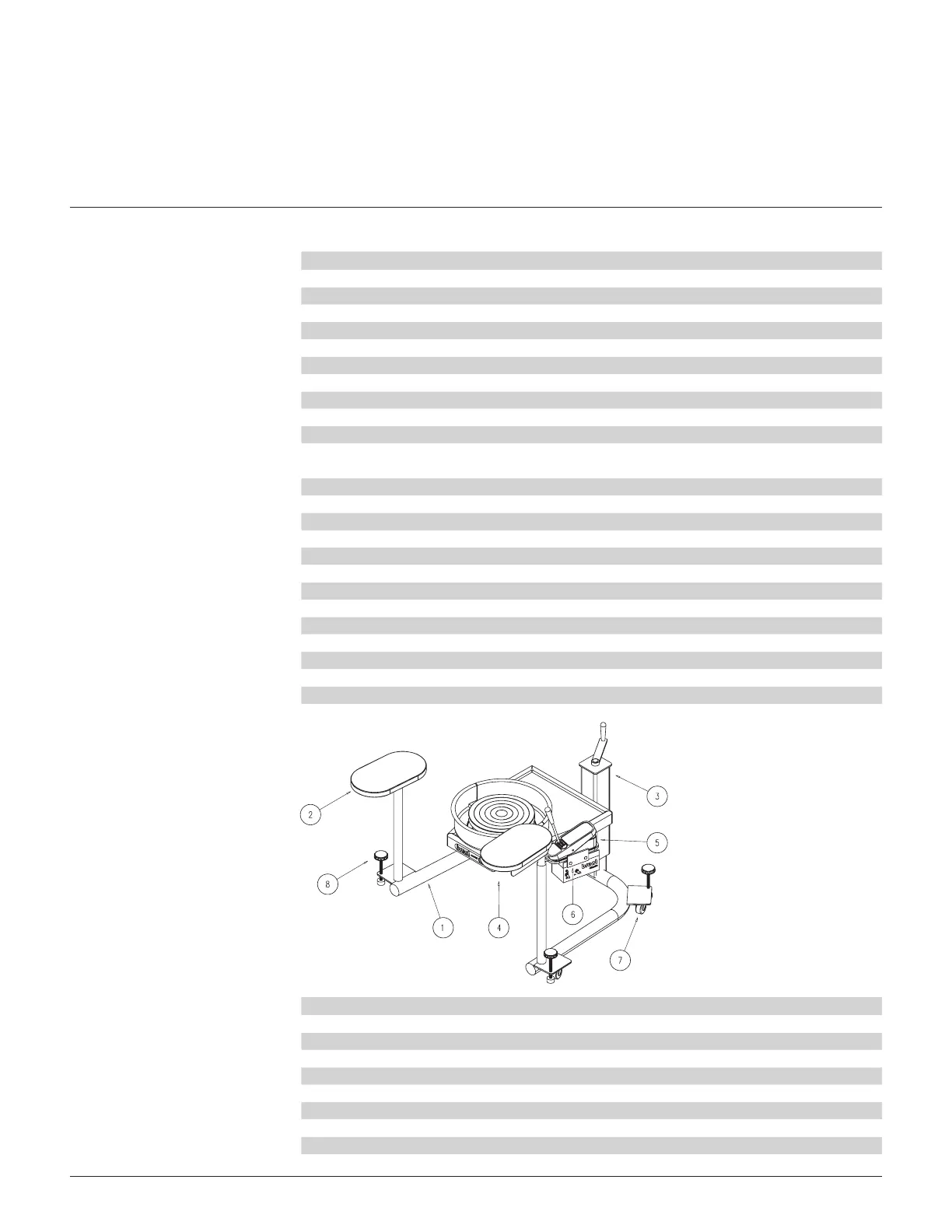

DIAGRAM
