Bridgeport GX 710 - 5 Tooling and Atc

Page 30
5 TOOLING & ATC

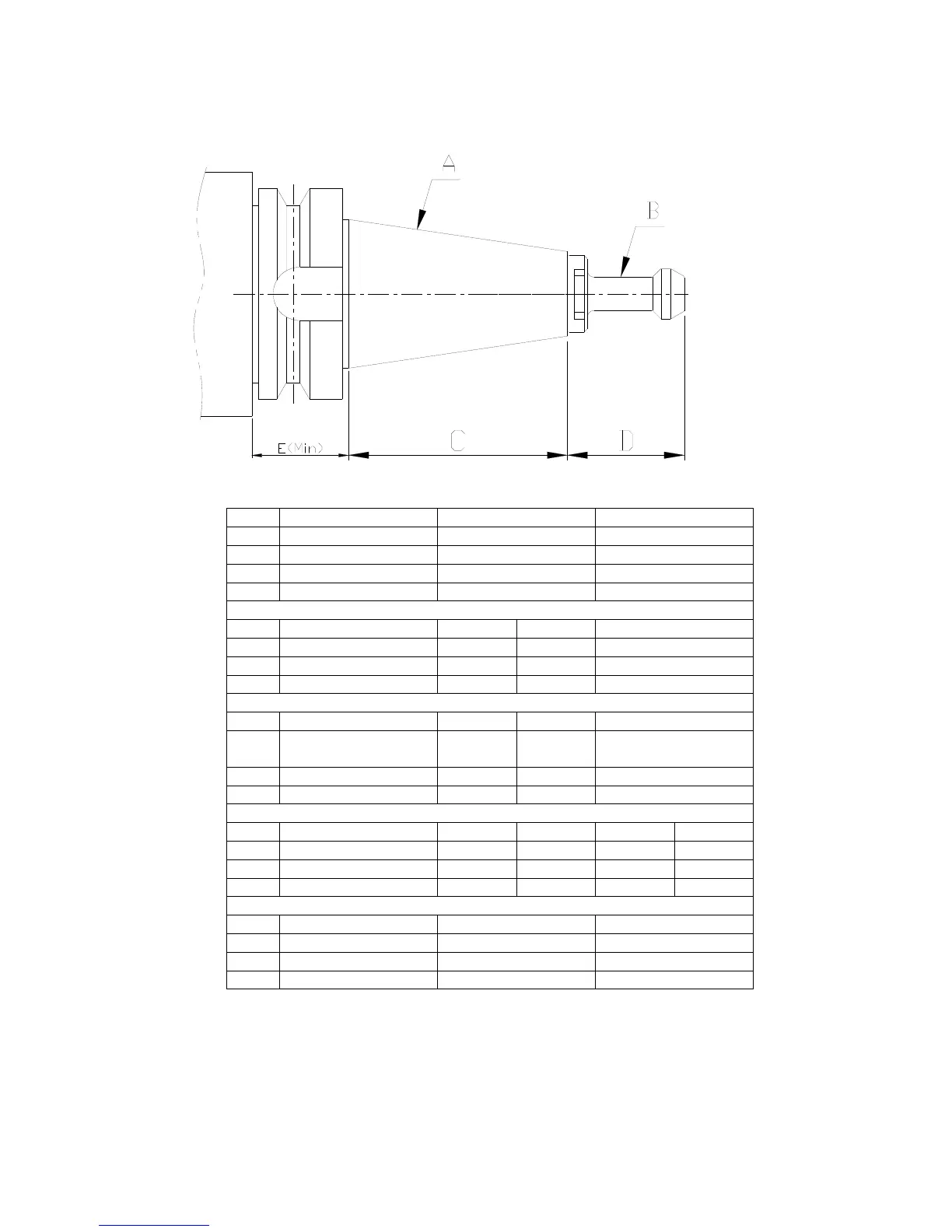

A Taper MAS403 BT40 MAS403 BT50
B Pullstud MAS403 BT40 45° MAS403 BT50 45°
C Dimension 65.4 mm 101.8 mm
D Dimension 35 mm 45 mm
E Dimension(Min.) 34 mm 42 mm
GX 480, GX 480 APC & GX 710
ATC 16 tools 20 tools ---
Max Tool Diameter 94 mm 80 mm ---
Max Tool Weight 6 kg 7 kg ---
Max tool length 250 mm
190 mm
---
GX 600 & GX 1000
ATC 24 tools 20 tools ---
Max Tool Diameter
80 mm/
95mm
89 mm ---
Max Tool Weight 8 kg 6 kg ---
Max tool length 300 mm
250 mm
---
GX 1300 & GX 1600
ATC 30 tools 40 tools 24 tools 30 tools
Max Tool Diameter 76.2mm
76.2mm
100 mm 125 mm
Max Tool Weight 8 kg 8 kg 20 kg 15 kg
Max tool length 350 mm
350 mm
400 mm 350 mm
GX 300 & GX 510
ATC 20 tools ---
Max Tool Diameter 80 mm ---
Max Tool Weight 7 kg ---
Max tool length 225 mm ---
