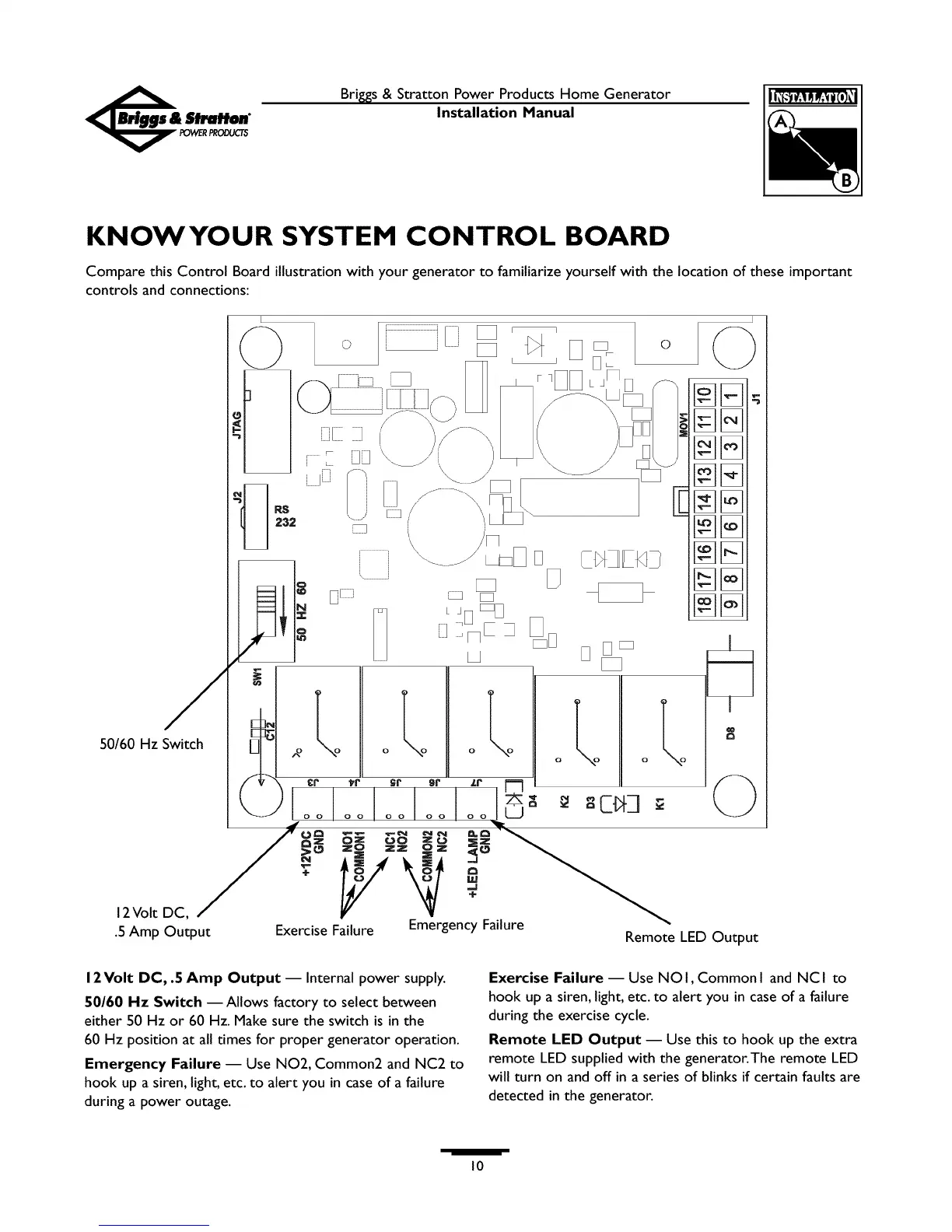

KNOWYOUR SYSTEM CONTROL BOARD
Compare this Control Board illustration with your generator to familiarize yourself with the location of these important
controls and connections:
[
12 D
g [] •
50/60 Hz Switch _ ,o o o o o
.5 Amp Output Exercise Failure Emergency Failure
Remote LED Output
12Volt DC, .5 Amp Output- Internal power supply.
50/60 Hz Switch --Allows factory to select between
either 50 Hz or 60 Hz. Make sure the switch is in the
60 Hz position at all times for proper generator operation.
Emergency Failure -- Use NO2, Common2 and NC2 to
hook up a siren, light, etc. to alert you in case of a failure
during a power outage.
Exercise Failure -- Use NO I, Common I and NC I to
hook up a siren, light, etc. to alert you in case of a failure
during the exercise cycle.
Remote LED Output -- Use this to hook up the extra
remote LED supplied with the generator.The remote LED
will turn on and off in a series of blinks if certain faults are
detected in the generator.
