Exploded Views and Parts Lists

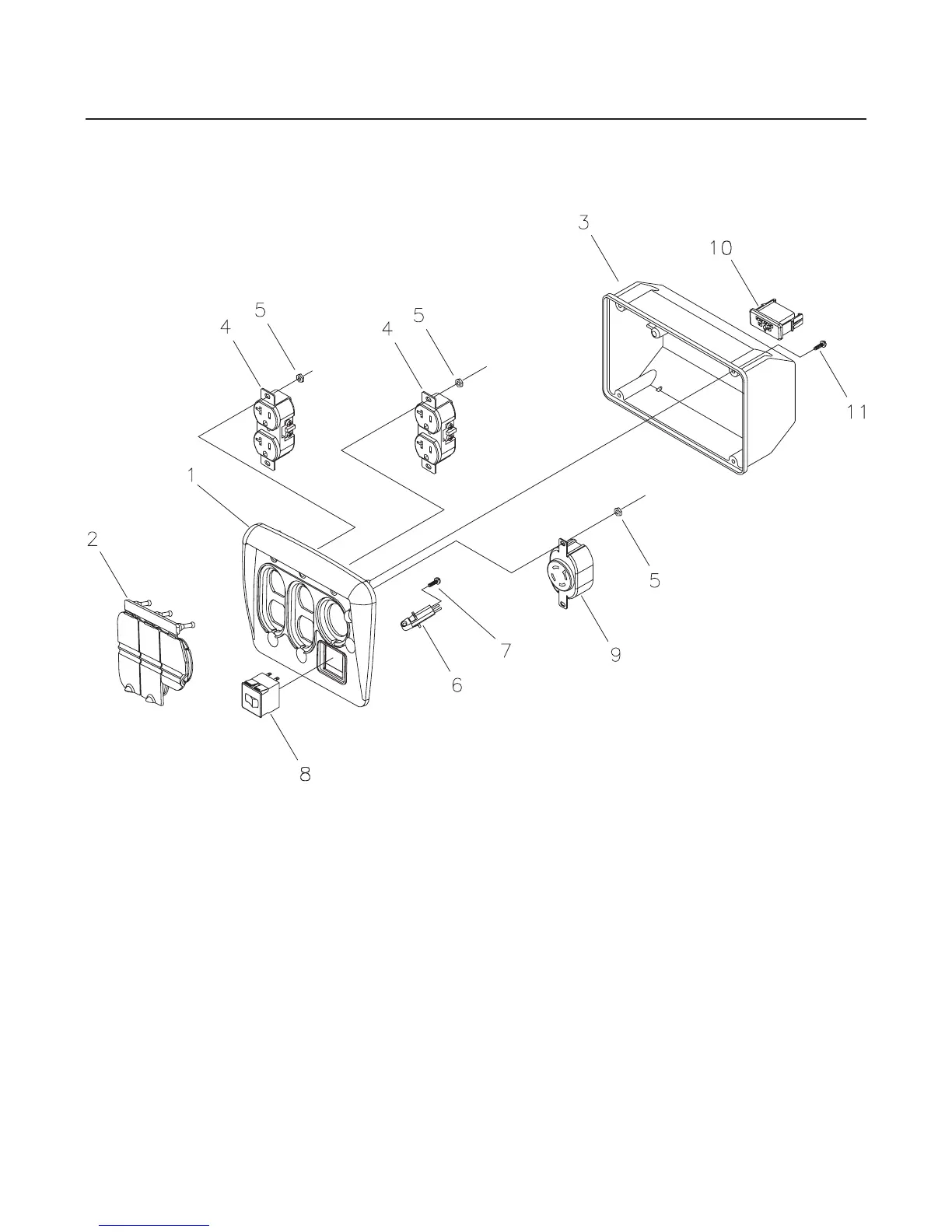

CONTROL PANEL EXPLODED VIEW & PARTS LIST
Item Part # Description
1 201571GS PANEL, Control
2 197472GS COVER, Outlet Flip
3 201572GS COVER, Back Panel
4 197731GS OUTLET, 120V, 15/20A Duplex
5 189164GS NUT, 3/16 Pal
6 202951GS MODULE, Led
7 * SCREW, 3 x 6, Tapping
8 202030GS BREAKER, Circuit, 20A
191481GS BOOT, Breaker Circuit (not shown)
9 43437GS OUTLET, 120/240V, 30A
10 201678GS HOUSING, Receptacle, 6 Pin
11 * PPPHS, M3 - 0.5 x 12
* - Items without part numbers are common fasteners and are
available at your local hardware store.
4 BRIGGSandSTRATTON.COM
