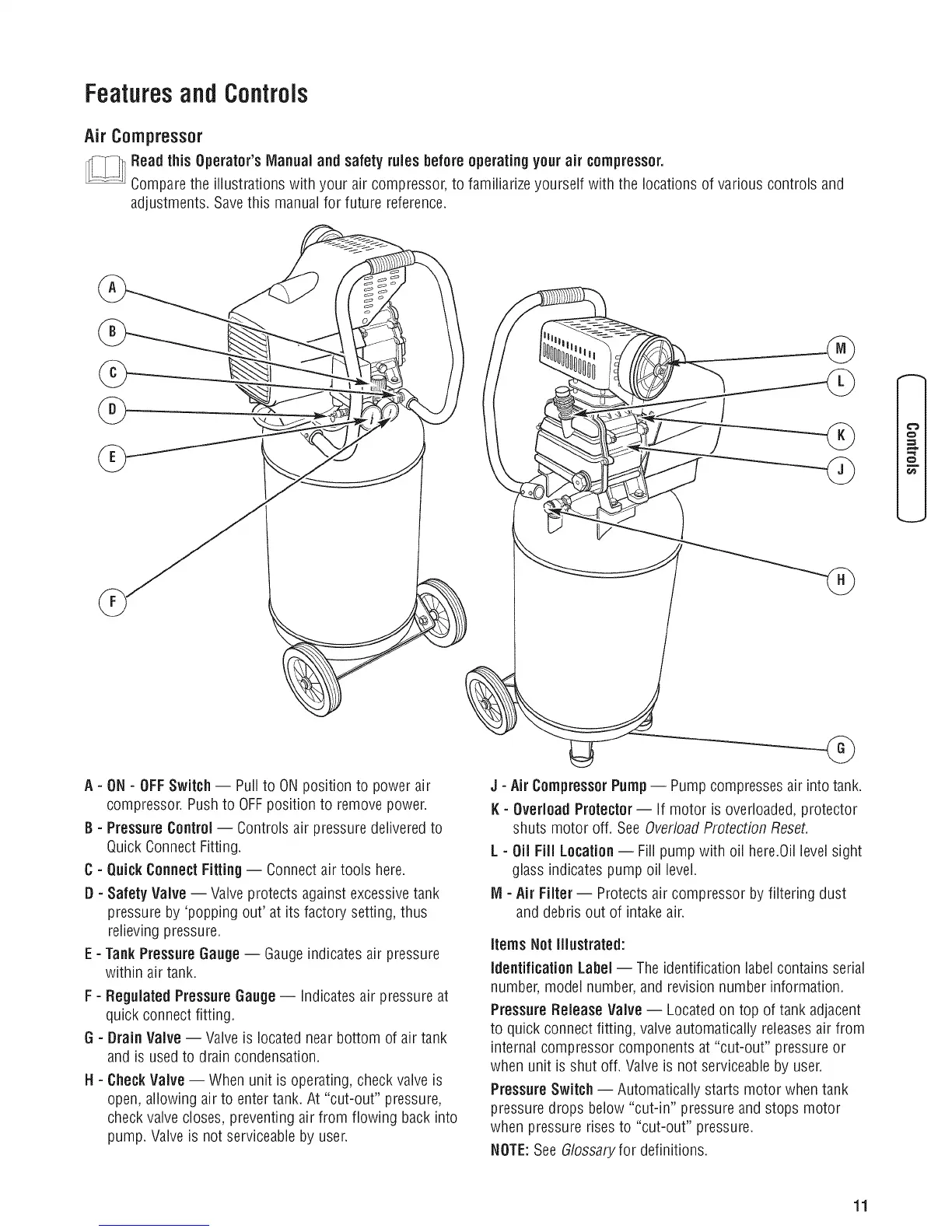

Featuresand Controls
Air Compressor
Readthis Operator's Manual andsafety rules before operating your air compressor.
Comparethe illustrations with your air compressor,to familiarize yourself with the locationsof various controls and
adjustments. Save this manual for future reference.
A- ON- OFFSwitch-- Pull to ONposition to power air
compressor. Push to OFFposition to remove power.
B - Pressure Control -- Controls air pressure deliveredto
Quick Connect Fitting.
C- QuickConnect Fitting-- Connect air tools here.
D - Safety Valve-- Valveprotects against excessivetank
pressure by 'popping out' at its factory setting, thus
relieving pressure.
E - Tank Pressure Gauge-- Gaugeindicatesair pressure
within air tank.
F - Regulated Pressure Gauge-- indicates air pressure at
quick connectfitting.
G - Brain Valve -- Valve is located near bottom of air tank
and is usedto drain condensation.
H - CheckValve-- When unit is operating, check valve is
open, allowing air to enter tank. At "cut-out" pressure,
checkvalve closes, preventing air from flowing back into
pump. Valveis not serviceableby user.
/
<b
J - Air Compressor Pump-- Pumpcompressesair into tank.
I{ - Overload Protector- if motor is overloaded, protector
shuts motor off. See OverloadProtection Reset.
L - Oil Fill Location -- Fill pump with oil here.Oillevelsight
glass indicates pump oil level.
M - Air Filter -- Protects air compressor by filtering dust
and debris out of intake air.
items Not Illustrated:
identificationLabel- The identification labelcontains serial
number, model number,and revision number information.
Pressure Release Valve-- Located on top of tank adjacent
to quick connect fitting, valve automatically releasesair from
internal compressor components at "cut-out" pressure or
when unit is shut off. Valve is not serviceable by user.
Pressure Switch -- Automatically starts motor when tank
pressure drops below "cut-in" pressure and stops motor
when pressure risesto "cut-out" pressure.
NOTE:See Glossaryfor definitions.
