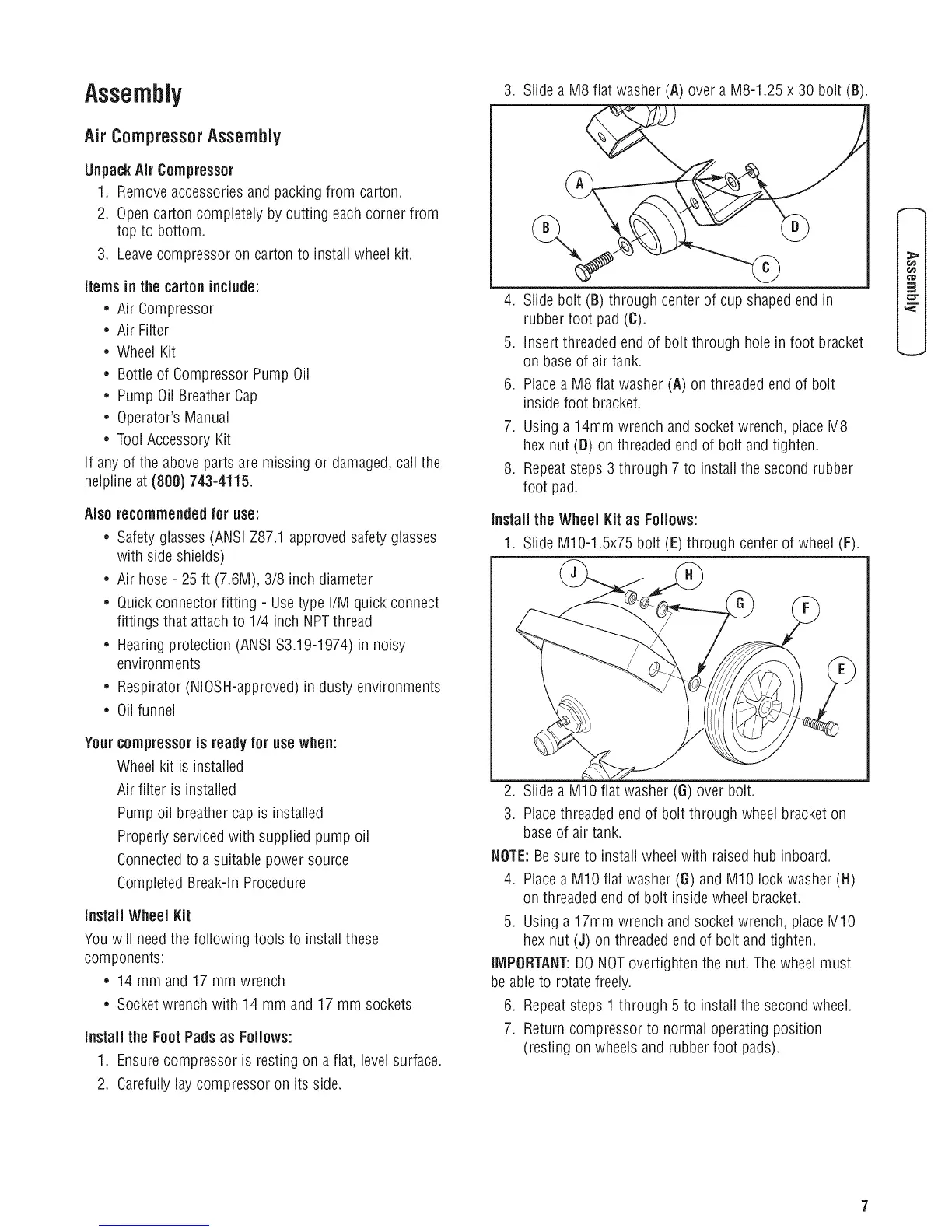

ASSe[[IbJy 3. Slide a M8 flat washer (A) over a M8-1.25 x 30 bolt (B).
Air CompressorAssembly
UnpackAir Compressor
1. Removeaccessoriesand packing from carton.
2. Opencarton completely by cutting eachcorner from
top to bottom.
3. Leavecompressor on carton to install wheel kit.
Items in the cartoninclude:
• Air Compressor
• Air Filter
• Wheel Kit
• Bottle of Compressor Pump Oil
• Pump Oil Breather Cap
• Operator's Manual
• Tool Accessory Kit
If any of the above parts are missing or damaged,call the
helpline at (800) 743-4115.
Also recommended for use:
* Safetyglasses (ANSiZ87.1 approvedsafety glasses
with side shields)
* Air hose - 25 ft (7.6M), 3/8 inch diameter
* Quick connector fitting - Usetype I/M quick connect
fittings that attach to 1/4 inch NPTthread
* Hearingprotection (ANSi $3.19-1974)in noisy
environments
* Respirator (NlOSH-approved) in dusty environments
* Oil funnel
Yourcompressor is readyfor use when:
Wheelkit isinstalled
Air filter is installed
Pumpoil breather cap is installed
Properlyservicedwith supplied pump oil
Connectedto a suitable power source
CompletedBreak-in Procedure
Install Wheel Kit
You will needthe following tools to install these
components:
• 14 mm and 17 mm wrench
• Socket wrench with 14 mm and 17 mm sockets
Install the FootPadsas Follows:
1. Ensurecompressor is resting on a flat, levelsurface.
2. Carefully lay compressor on its side.
.
5.
6.
7.
8.
Slide bolt (8) through center of cup shaped end in
rubber foot pad (C).
insertthreaded end of bolt through hole infoot bracket
on baseof air tank.
Placea M8 fiat washer (A) on threadedend of bolt
insidefoot bracket.
Using a 14mm wrench and socket wrench, place M8
hex nut (D) on threaded end of bolt and tighten.
Repeatsteps 3 through 7 to installthe second rubber
foot pad.
Install the Wheel Kit as Follows:
1. Slide M10-1.5x75 bolt (E) through center of wheel (F).
2. Slide a MIO fiat washer (G) over bolt.
3. Placethreadedend of bolt through wheel bracket on
baseof air tank.
NOTE:Besure to install wheelwith raised hub inboard.
4. Placea MIO fiat washer (G) and MIO lock washer (H)
on threaded end of bolt insidewheel bracket.
5. Using a 17mm wrench and socket wrench, place MIO
hex nut (J) on threadedend of bolt and tighten.
IMPORTANT:DONOTovertighten the nut. Thewheel must
be able to rotate freely.
6. Repeatsteps 1 through 5 to install the second wheel.
7. Return compressor to normal operating position
(resting on wheels and rubber foot pads).
€_
3
