Briggs & Stratton Home Generator System Operator's Manual

10 BRIGGSandSTRATTON.COM
Controls
Home Generator
Read this Operator’s Manual and Important Safety Instructions before operating your generator.
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.

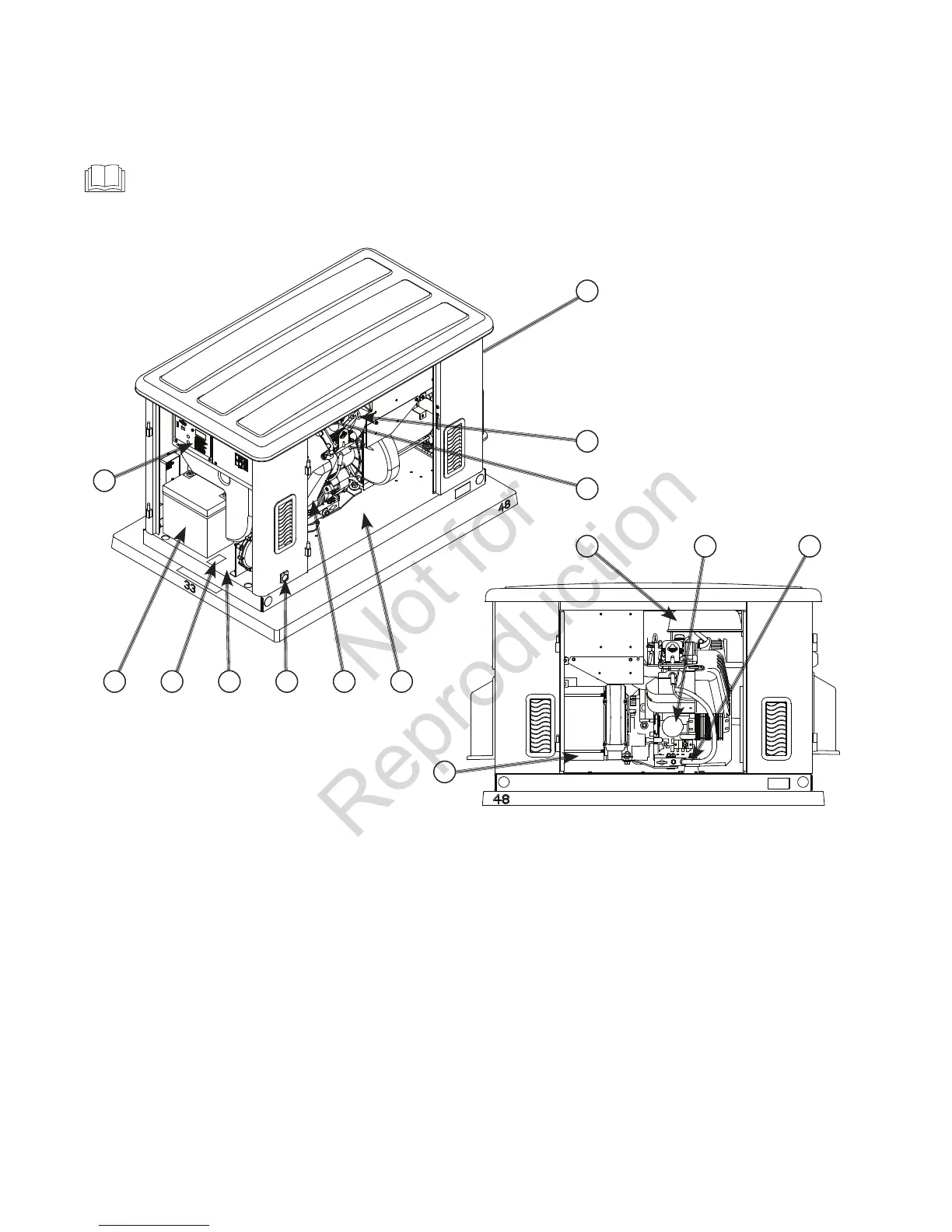

Generator is pictured with access doors removed for clarity
A - Exhaust Port — High-performance muffler lowers engine
noise to comply with most residential codes.
B - Oil Dip Stick — Used to check the engine oil level.
C - Oil Fill Cap — Remove to service the engine with
recommended oil.
D - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
E - Oil Filter — Filters engine oil to prolong system life.
F - Oil Drain Hose — Provided to facilitate oil changing.
G - Oil Drain Door opening — Provides access for
engine servicing.
H - Oil Fill Door opening — Provides access for
engine servicing.
J - Engine Label — Identifies engine model and type.
K - Fuel Inlet — Fuel supply is connected here.
L - Control Panel Door opening — Provides access to
control panel and battery.
M - Unit ID Label (located on base) — Identifies unit by
serial number.
N - Battery — (installer-supplied) 12 Volt DC sealed battery
provides power to start the engine.
P - Control Panel — Used for various test, operation and
maintenance functions. See System Control Panel.
B
A
C
D E F
M
G
H
J
K
L
N
P
Not for
Reproduction

Briggs & Stratton Home Generator System Specifications

Electrical Specifications

rated maximum load current at 25°C/77°F, LP	83.3 Amps
rated AC voltage	240 Volts
phase	Single phase
rated frequency	60 Hertz

Operating Environment

normal operating range	-20°F (-28.8°C) to 104°F (40°C)
output sound level at normal load	68 dB(A) at 23 ft. (7 m)

Weight and Dimensions

shipping weight	575 lb (260 kg)
