Installation
Unpacking
Delivery Inspection
After removing the carton, carefully inspect the power
management system components for any damage that may
have occurred during shipment.
IMPORTANT: If loss or damage is noted at time of delivery,
have the person(s) making delivery note all damage on the
freight bill and affix his signature under the consignor's
memo of loss or damage. If loss or damage is noted after
delivery, contact the carrier for claim procedures. Missing or
damaged parts are not warranted.
Shipment Contents
Power Management System
Installation and Operator’s Manual
Wire Connectors (4)
1/4” Double Male, Single Female Lugs (2)
Mounting Guidelines
The power management system is enclosed in a NEMA
Type 3R enclosure suitable for indoor/outdoor use.
Guidelines for mounting the power management system
include:
Install power management system on a firm, sturdy
supporting structure.
The power management system must be installed with
minimum NEMA 3R hardware for conduit connections.
Level and plumb the enclosure. This can be done by
placing washers between the power management
system enclosure and the mounting surface.
Never install the power management system where any
corrosive substance might drip onto the enclosure.
Protect the power management system at all times
against excessive moisture, dust, dirt, lint, construction
grit and corrosive vapors.

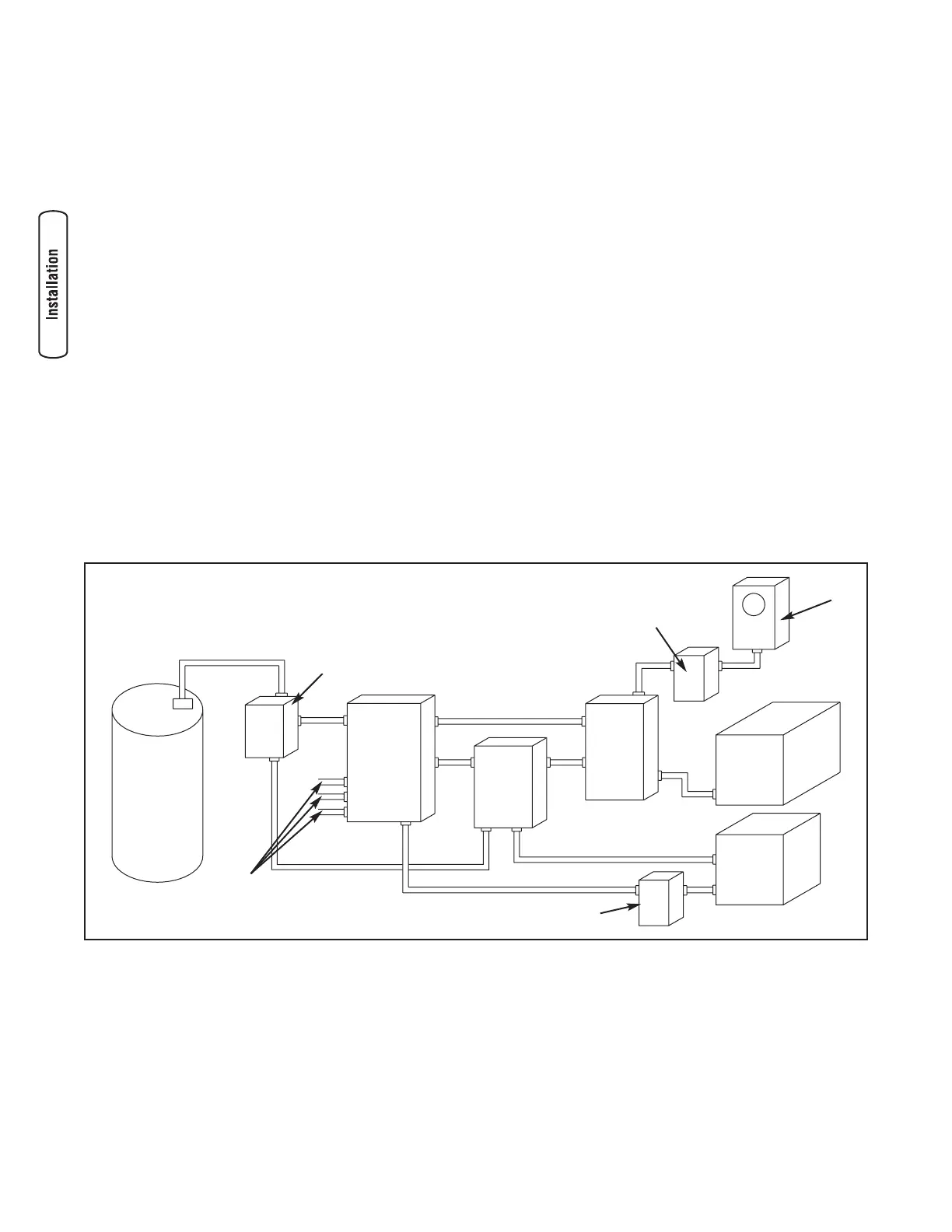

A typical installation of the power management system is
depicted below. It is best if it is mounted near the main
breaker panel, either inside or outside. Discuss layout
suggestions/changes with the owner before beginning the
system installation process.
6 BRIGGSandSTRATTON.COM
Main
Breaker
Panel
Transfer
Switch
Hot
Water
Heater
Air
Conditioner
Service Disconnect
Generator
Watt -
Hourmeter
Branch Circuits
Disconnect Switch
Power
Manage-
ment
System
Contactor
