Vanguard
TM
Twin-Cylinder OHV Liquid-Cooled Engine
Section 3 - Engine Disassembly
Page 31

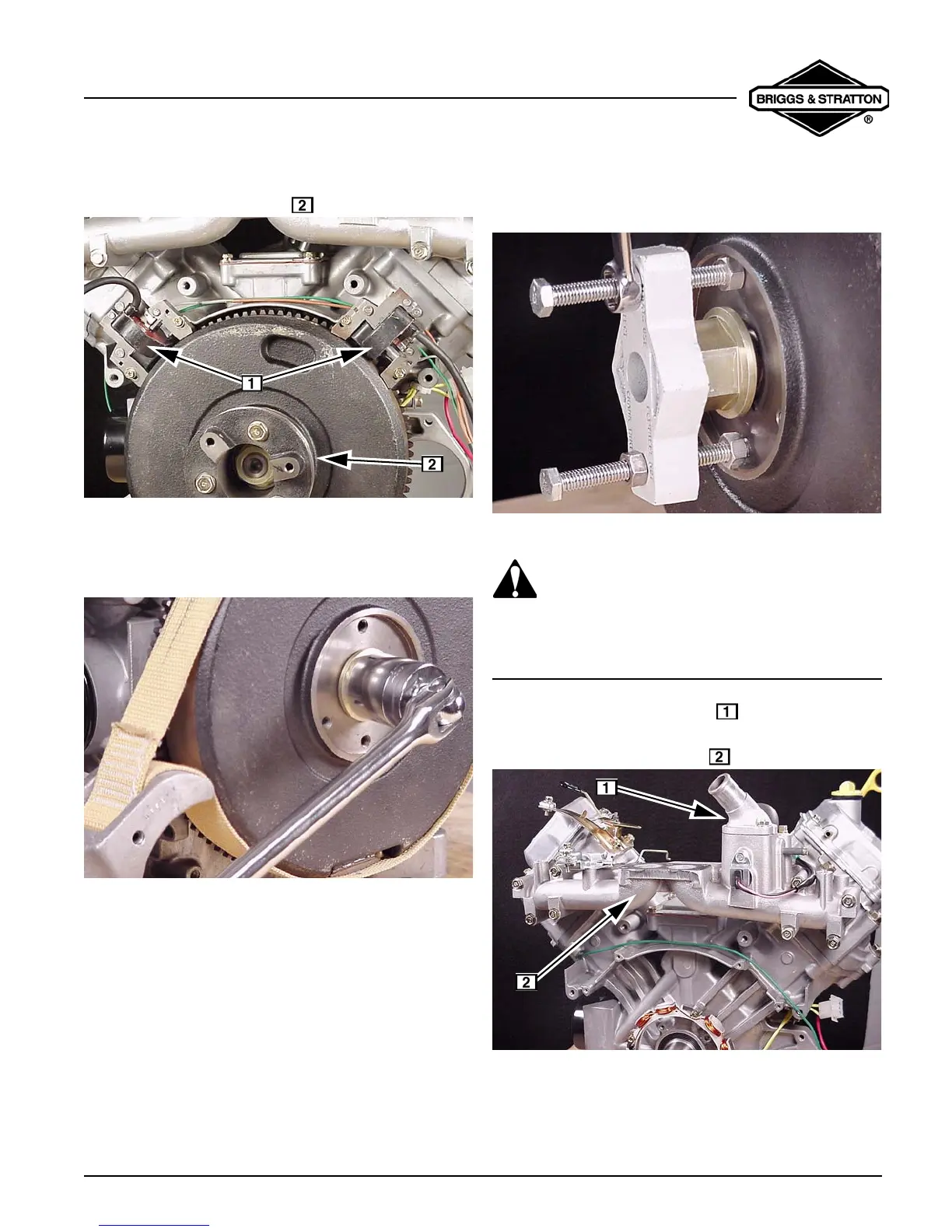

2. Remove fan belt pulley .
Fig. 49
3. Place flywheel strap wrench, Tool #19433 around
flywheel.
4. Loosen flywheel nut, Fig. 50.
Fig. 50
5. Install flywheel puller, Tool #19203.
6. Tighten puller nuts equally until flywheel loosens,
Fig. 51.
Fig. 51
WARNING: DO NOT strike flywheel with a hard
object or a metal tool as this may cause flywheel
to shatter in operation. Always use approved
removal tools.
REMOVE INTAKE MANIFOLD
1. Remove thermostat cover and thermostat, Fig.
52.
2. Remove intake manifold .
Fig. 52
To Next Page
