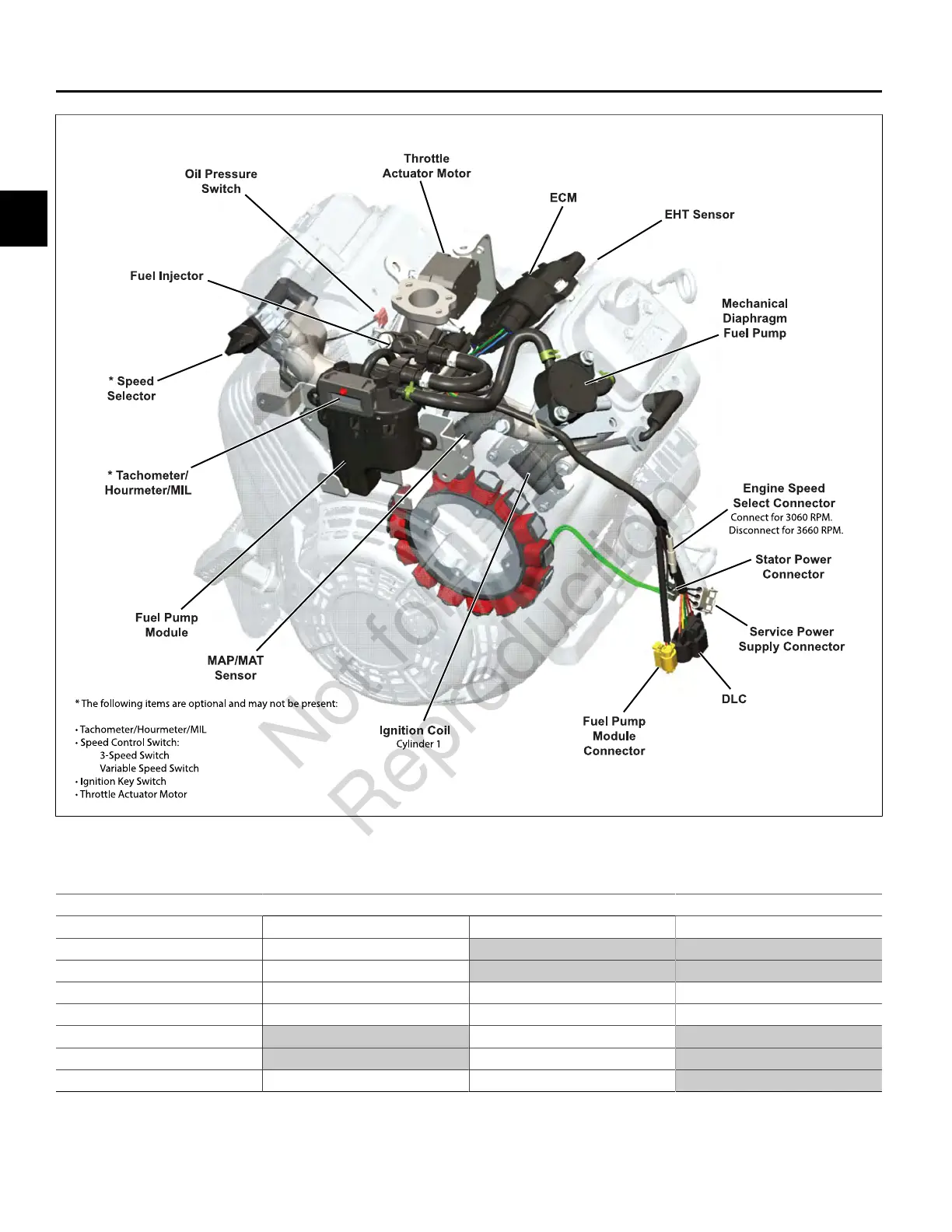

MODEL 380000 EFI COMPONENT LOCATIONS
5

NOTE:Air cleaner assembly and fuel pump module cover removed for illustration purposes.
Removal Required for Back Probing Connector (x) or Replacing Component (o)
To Access Air Cleaner Assembly Fuel Pump Module Cover Blower Housing
ECM xo
Throttle Actuator Motor xo
MAP/MAT Sensor xo xo xo
Ignition Coil xo xo o
Mechanical Diaphragm Fuel Pump o
Fuel Pump Module xo
Fuel Injector xo xo
NOTE:SeeSECTION 5 - REMOVAL/INSTALLATIONfor instructions.
