Brightwell ECOMIX - Spares Diagram; Exploded Diagram

3
ECOMIX

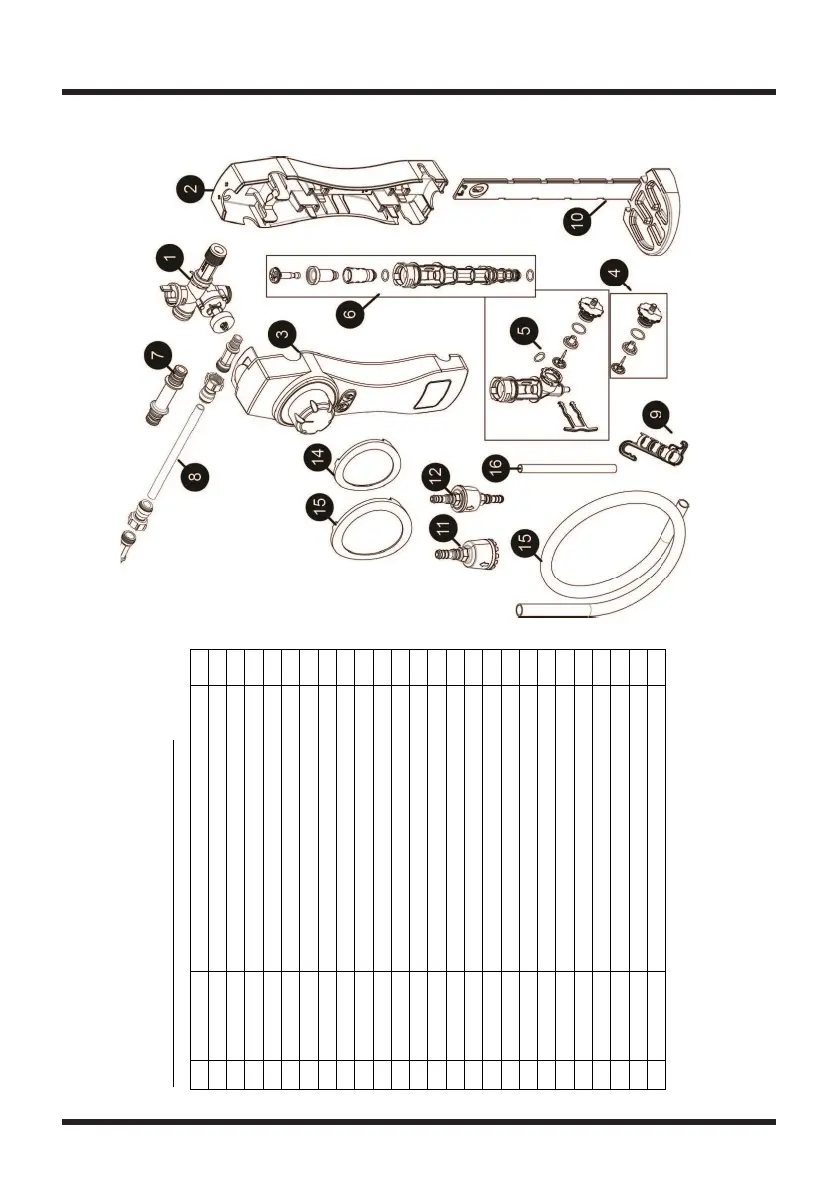

Exploded diagram - ECOMIX
Spares Diagram – ECOMIX – May 2014 (Revision 1.0)
Part No.
Description
Qty
1
SBW8161
ECOMIX BSP WATER INLET VALVE
1
1
SBW8162
ECOMIX BSP WATER INLET VALVE
10
2
SBW8163
ECOMIX BACKPLATE
1
3
SBW8164
ECOMIX COVER
1
4
SBW8165
ECOMIX DILUTION PIN ASSEMBLY
1
5
SBW8166
ECOMIX LF VENTURI ASSEMBLY
1
5
SBW8167
ECOMIX HF VENTURI ASSEMBLY
1
6
SBW8168
ECOMIX HF 150mm + BRIGHT-GAP
1
6
SBW8169
ECOMIX LF 150mm + BRIGHT-GAP
1
7
SBW8150
JOINING PIECE
2
7
SBW8151
JOINING PIECE
50
8
SBW8152
JOINING PIECE FOR CABINET
1
9
SBW8153
BUCKET HOOK
5
10
SBW8154
SPRAY BOTTLE BRACKET
1
11
SBW8155
NON RETURN VALVE FOOT EPDM
10
11
SBW8176
NON RETURN VALVE FOOT VITON
10
11
SBW8177
NON RETURN VALVE FOOT EXTREME VITON
10
12
SBW8156
NON RETURN VALVE INLINE EPDM
10
12
SBW8178
NON RETURN VALVE INLINE VITON
10
12
SBW8179
NON RETURN VALVE INLINE EXTREME VITON
10
12
SBW8156
NON RETURN VALVE INLINE EPDM
10
13
SBW8159/?
DISPENSER COLOUR RING - Various colours
10
14
SBW8160/?
CABINETCOLOUR RING - various colours
10
15
SBW8170
HF 1.5M PVC TUBE WITH FLOOD RING
10
16
SBW8171
LF OUTLET TUBE WITH FLOOD RING
10
