VIII. Functions of Six-Way Valve and
Meaning of its Positions
General instructions:
1. The valve stud is set for adjustable pressure gauge.
2. Reparation and maintenance of the valve: (Before initiation of your work, turn the pump off and close
the valve of the suction and draining pipes).
a. Set the bar in the position FILTER.
b. Remove the screws from the cover.
c. Pull and remove the cover and the valve separator set.
Setting up:
1. Place the valve separator in a way that the separator opening is on the TOP neck (lever is in the position
FILTER). The fl at edge of the cover screw stud must be in the same level as the fl at edge of the body
screw stud.
2. Put the O-ring of the cover on.
3. Ensure the assembly on the body by screws of the cover. Tighten them equally and alternatively. Do not
over tighten.
Position of the valve Functions
FILTRATION Standard fi ltration and suction.
RINSE Cleaning the fi ltration by the inverse fl ow.
FILTRATION PROCESS (BACKWASH) is used to rinse out the dirt from the fi ltration after the rinse.
WASTE Filter bypass is used for the drain suction or lowering the water level.
RECIRCULATION Filter bypass for water pumping to the pool without fi ltration.
CLOSED Closing of the fl ow to the fi lter or to the pool.

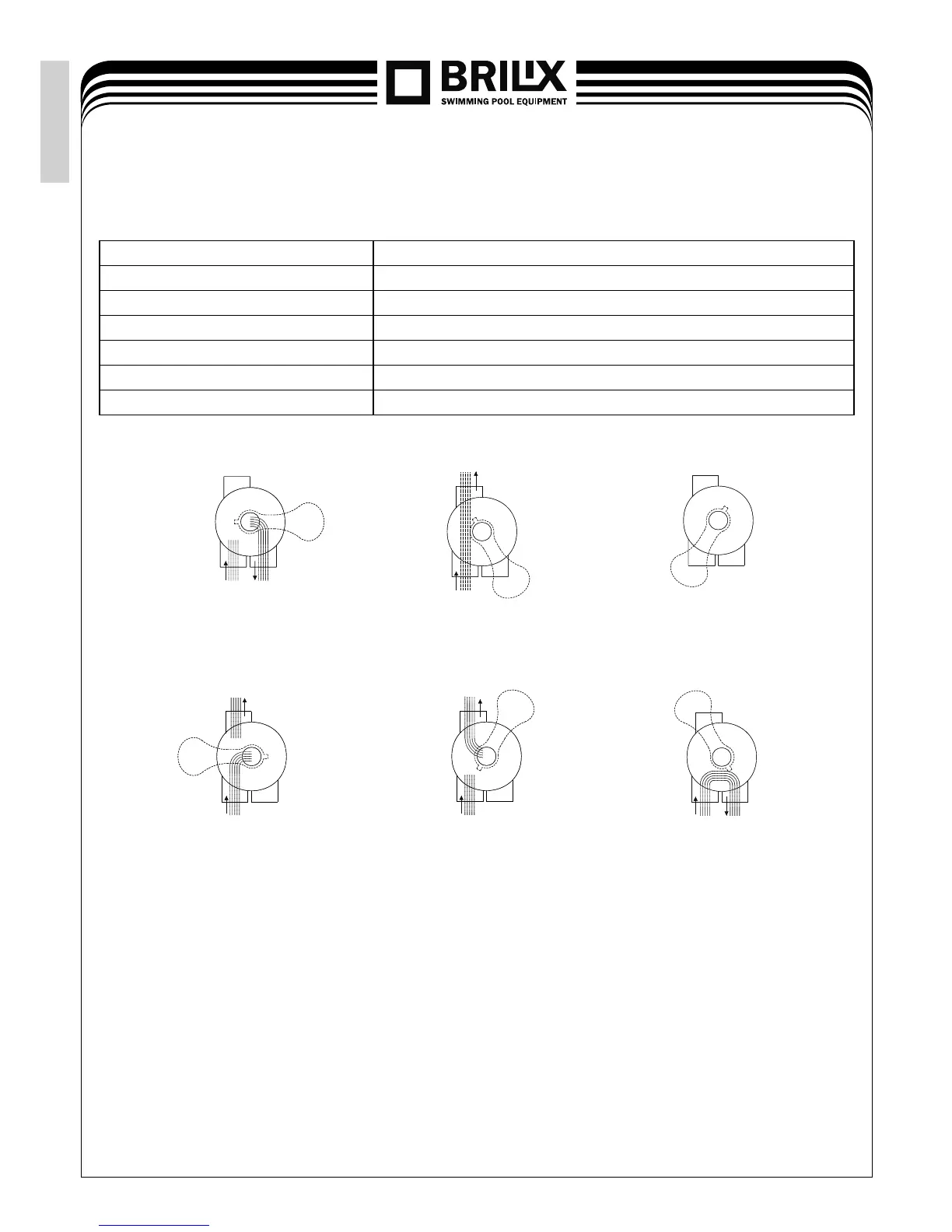

FILTRATION WASTE CLOSED
Waste Waste Waste
Input Output Input Output Input Output
BACKWASH RINSE RECIRCULATION
Waste Waste Waste
Input Output Input Output Input Output
