Brinkmann 6345 Series - Grill Body Assembly; Mount Grill Body on Cart Frame

26

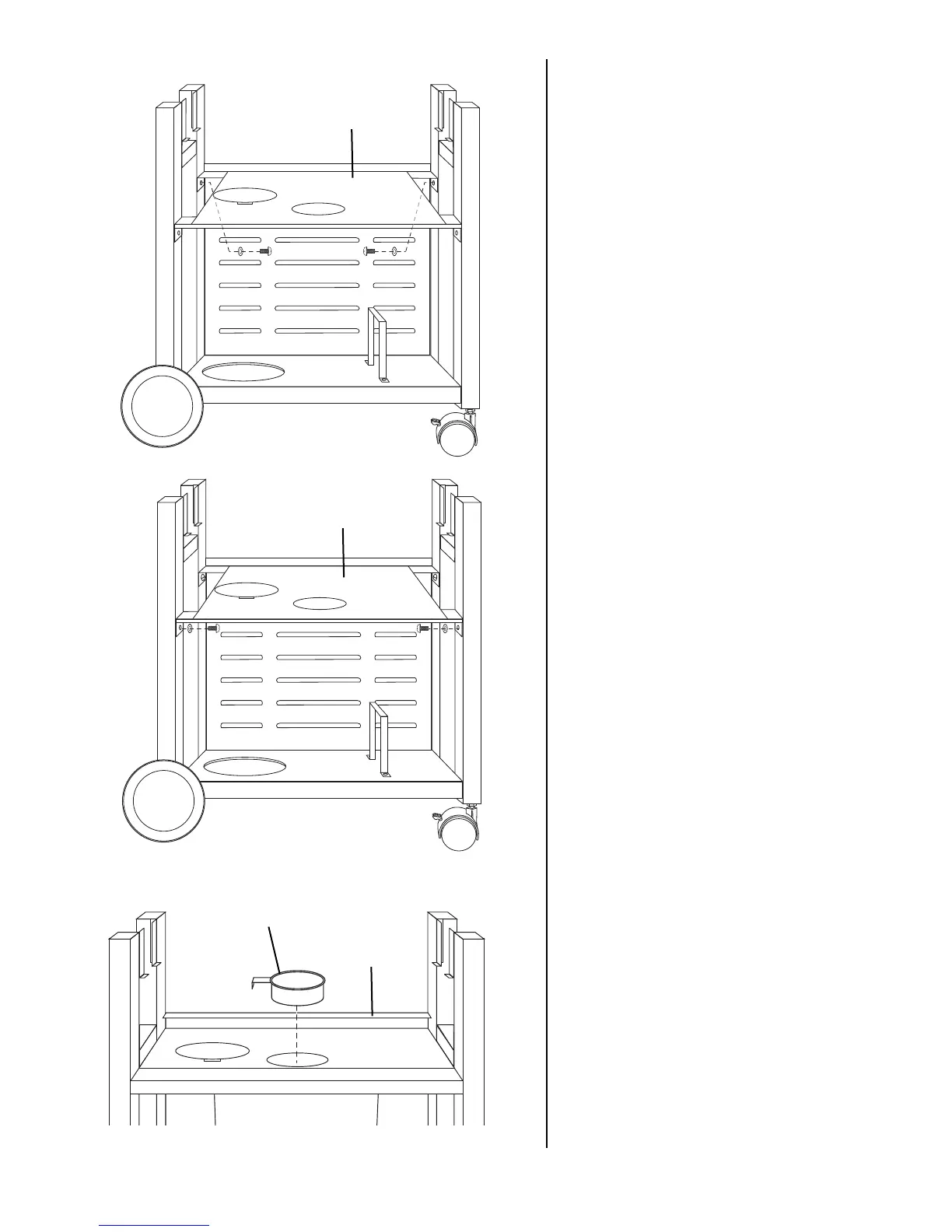

Step 11
Attach heat shield plate and front
panel to the front of the cart frame
assembly using two M6 X 12mm
bolts with star washers.
Step 12
Attach heat shield plate to the back
of the cart frame assembly using
two M6 X 12mm bolts with star
washers.
Step 13
Place grease cup in middle of hole in
heat shield plate.
Heat Shield Plate
Heat Shield Plate
Grease Cup
Heat
Shield
Plate
