Brinkmann Pitmaster deluxe - Page 11

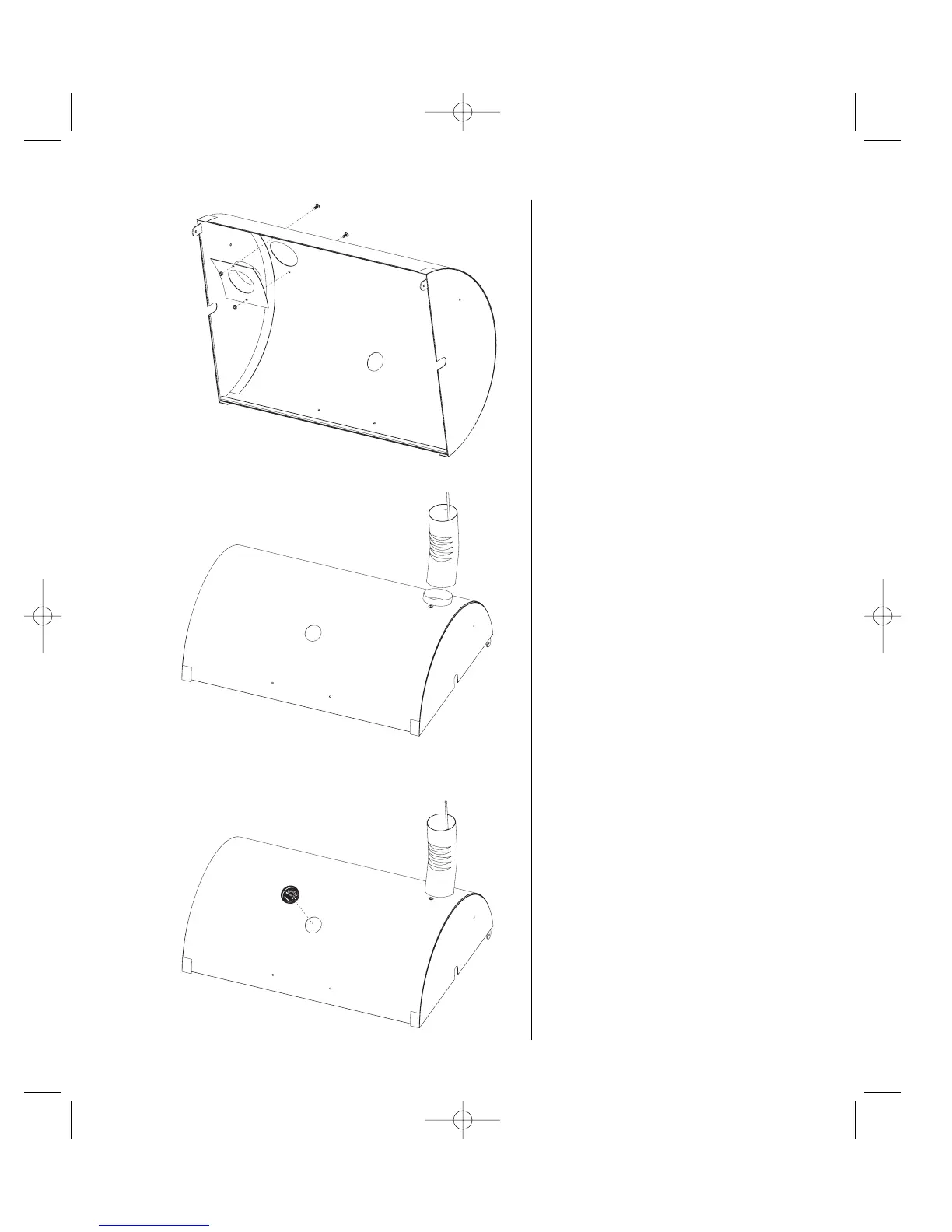

Step 16
Install smokestack bracket (item #18) into
grill lid (item #17) using two M6 x 12mm
Phillips head bolts and M6 nuts.
Step 17
Install smokestack (item #19) onto
smokestack bracket (item #18).
Step 18
To Install the temperature gauge (item
#22), insert into center hole on grill lid
(item #17), then turn it clockwise to upright
position.
