Step 22
Use charcoal grate adjusters (item #14) to
lower charcoal grate assembly into grill
base (item #9). Rest charcoal grate
adjusters on supports in grill base
(item #9).

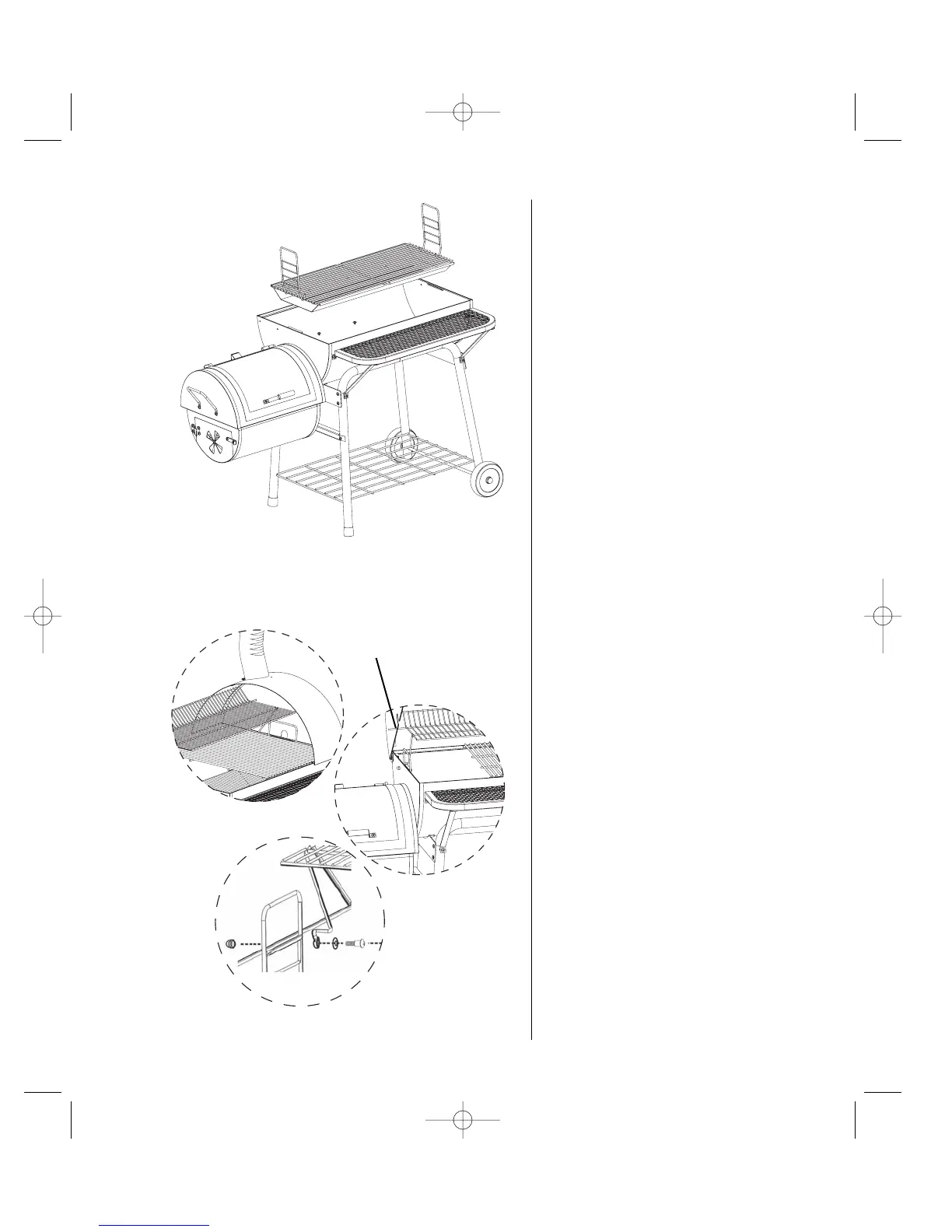

Step 23
Install the warming rack (item #16) inside
the grill lid (item #17). Insert the rack pin
through the holes from the inside of grill lid
(item #17).
Align the warming rack support arm holes
with the holes on the side panel of grill
base (item #9). Using two M6 cap nut, two
M6 washers and two M6 x 15mm Phillips
head shoulder bolts.
12
Rack Pin
To Next Page
