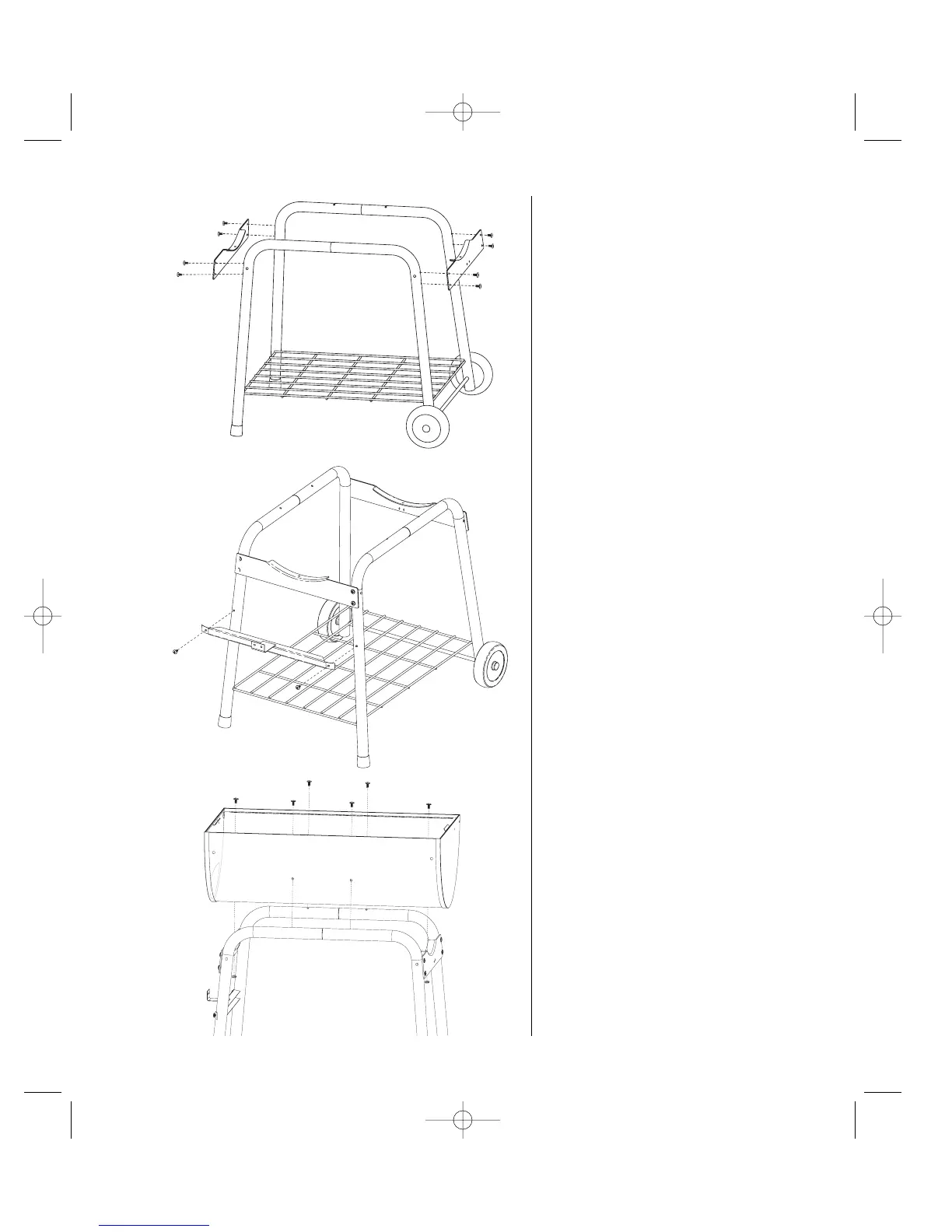

Step 4
Install leg braces (item #7) with support
flange towards center of grill onto the legs
using eight M6 x 12mm Phillips head bolts.
Do not tighten bolts until Step 6 is
completed.
NOTE: Leg brace with two holes for grease
cup holder must be mounted on right
side of grill legs.
Step 5
Install firebox support bracket (item #8)
onto the holes on the left legs using two
M6 x 12mm Phillips head bolts. Do not
tighten bolts until Step 6 is completed.
Step 6
Install grill base (item #9) with firebox
opening towards left side on top of the legs
using four M6 x 12mm Phillips head bolts.
Install two M6 x 12mm Phillips head bolts
and M6 nuts thru grill base (item #9) and
leg braces (item #7).
NOTE: Now tighten all screws in Steps 1 thru
Step 6.
