7

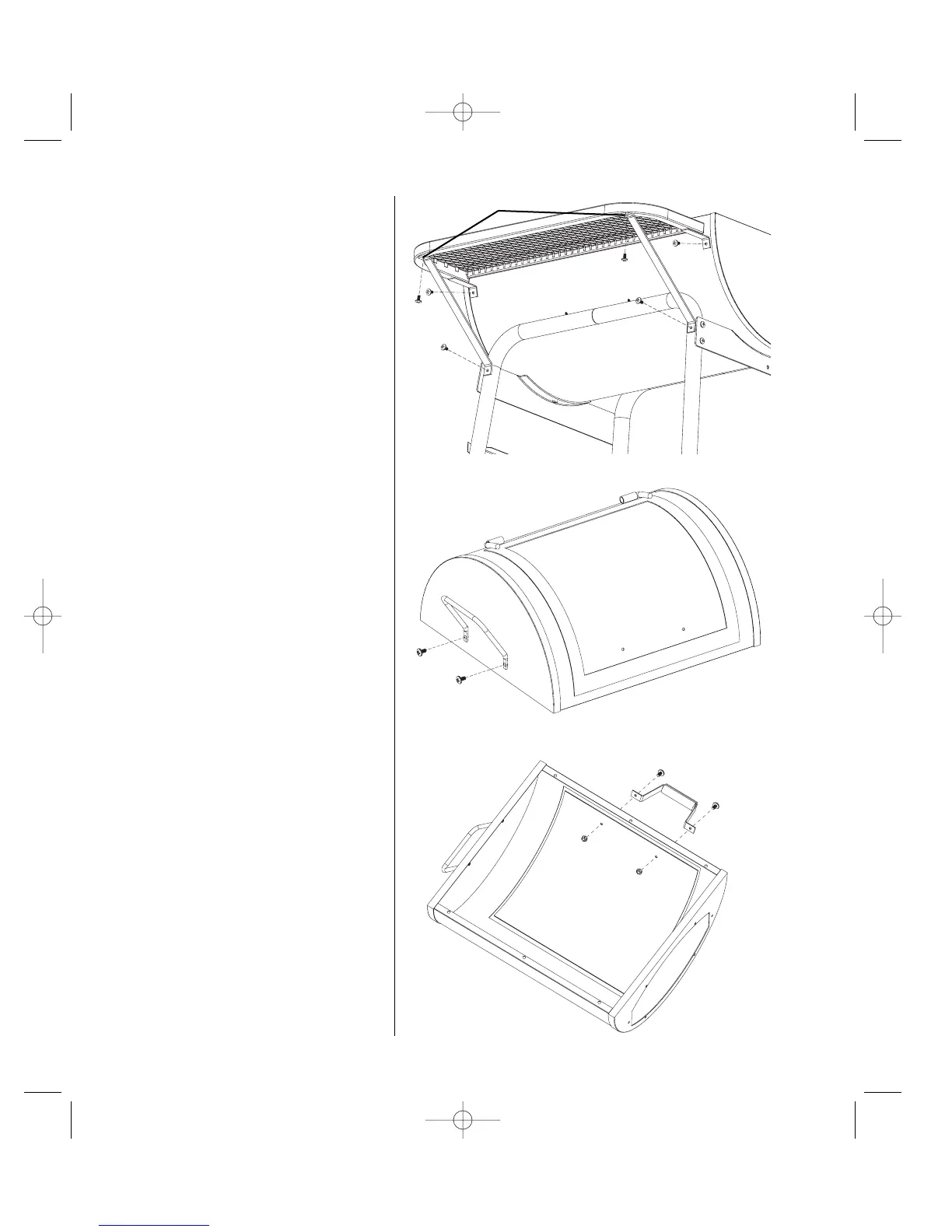

Step 7
Attach front shelf (item #10) to front of
grill base using two M6 x 12mm Phillips
head bolts. Attach table supports (item
#11) with slotted holes towards front shelf
using four M6 x 12mm Phillips head bolts.
Step 8
Attach push handle (item #27) onto
firebox lid (item #25) using two
M6 x 12mm Phillips head bolts.
Step 9
Attach smaller handle (item #26) using
two M5 x 12mm Phillips head bolts and
M5 nuts.
Slotted holes
