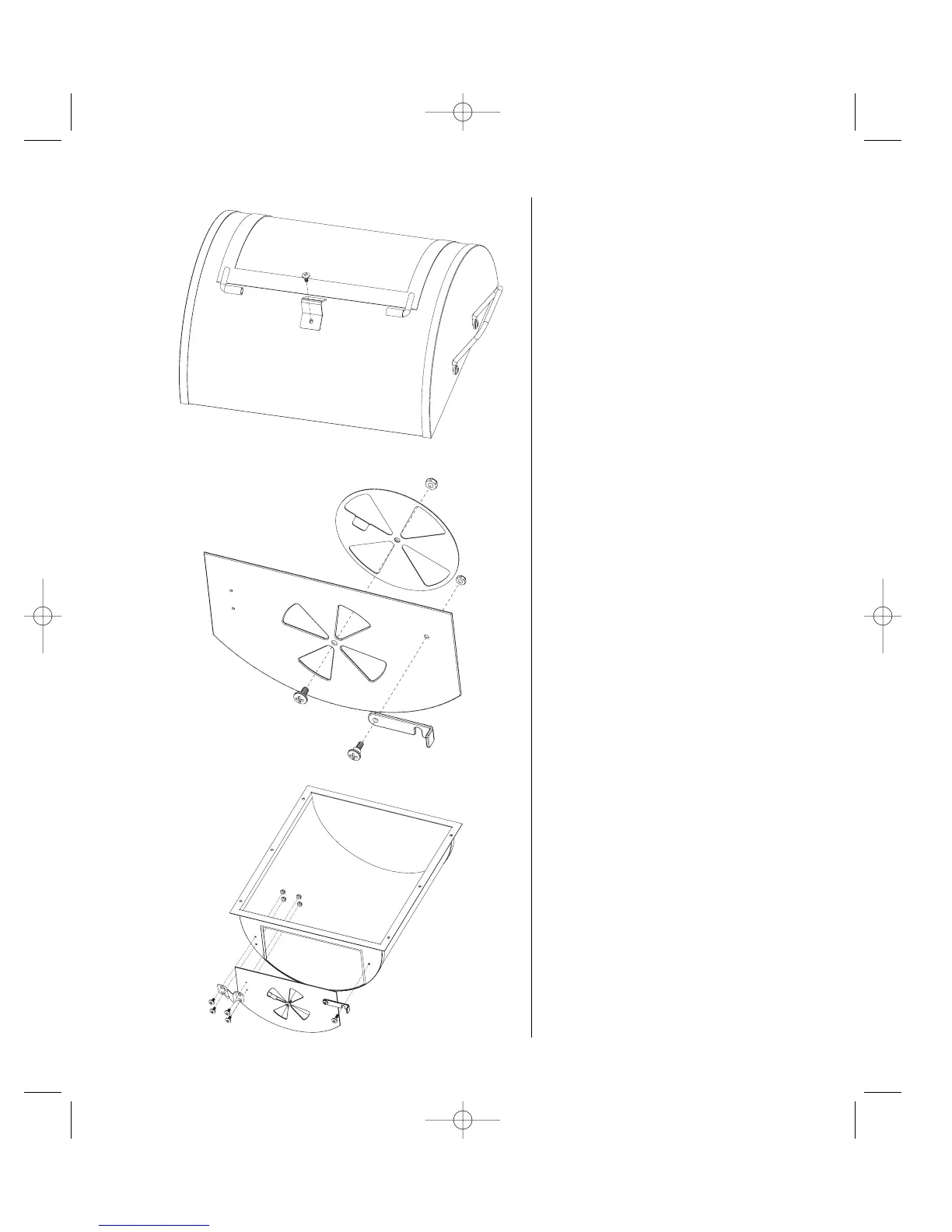

Step 10
Attach firebox lid stop (item #24) using one
M5 x 12mm Phillips head bolt and M5 nut.
Step 11
Attach air shutter (item #31) onto firebox
door (item #30) using one M6 x 12mm
Phillips head bolt and M6 nut. Do not
overtighten air shutter, air shutter should
move freely.
Attach door latch (item #33) using one
M5 x 12mm Phillips head shoulder bolt and
M5 nut as illustrated.
Step 12
Connect firebox door hinge (item #29) to
the outside of door (item #30) and firebox
base (item #34) using four M5 x 12mm
Phillips head bolts and M5 nuts.
Attach one M6 x 15mm Phillips head
shoulder bolt onto firebox base (item #34)
for door latch (item #33).
