23

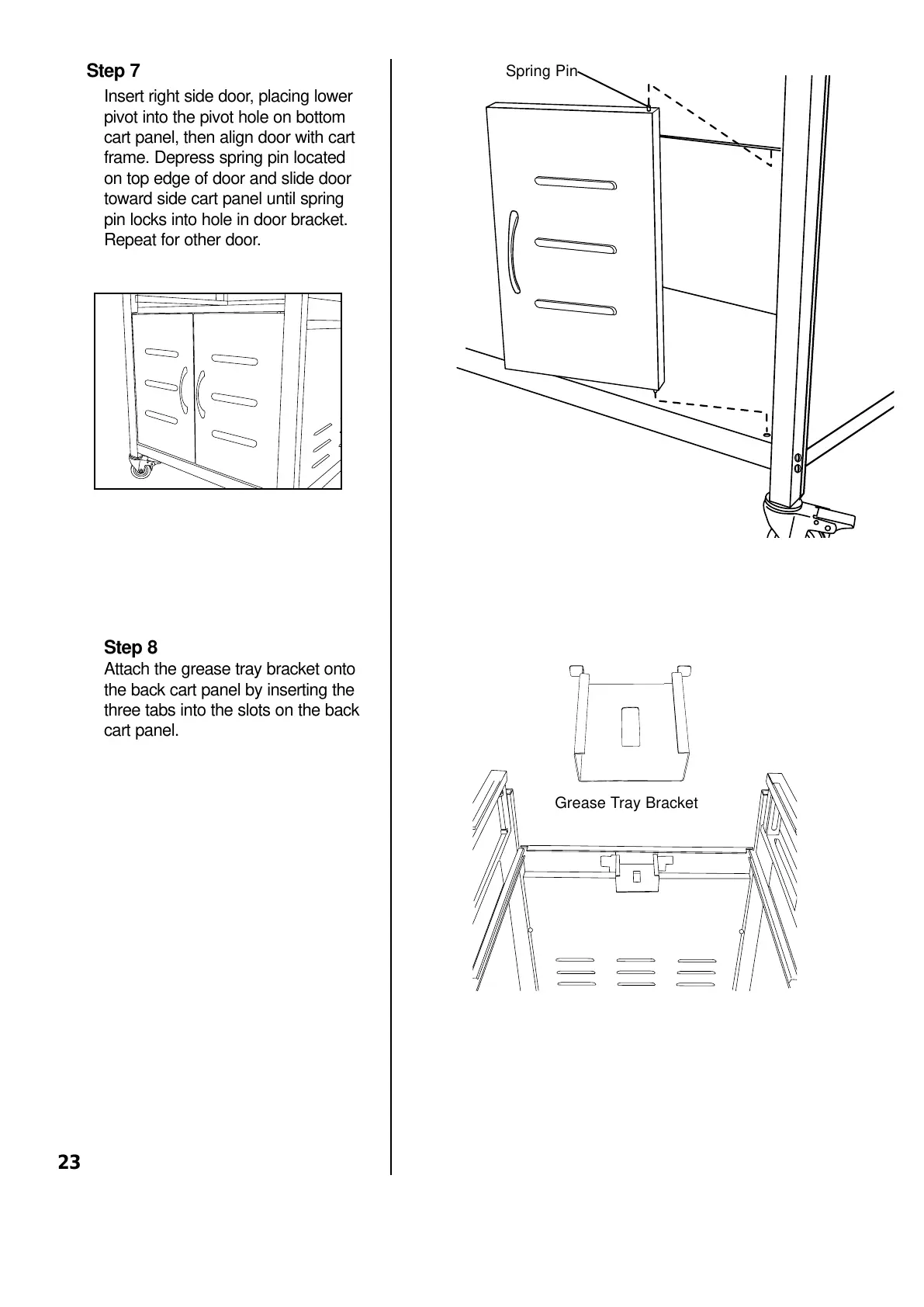

Step 7
Insert right side door, placing lower
pivot into the pivot hole on bottom
cart panel, then align door with cart
frame. Depress spring pin located
on top edge of door and slide door
toward side cart panel until spring
pin locks into hole in door bracket.
Repeat for other door.
Step 8
Attach the grease tray bracket onto
the back cart panel by inserting the
three tabs into the slots on the back
cart panel.
Spring Pin
Grease Tray Bracket
