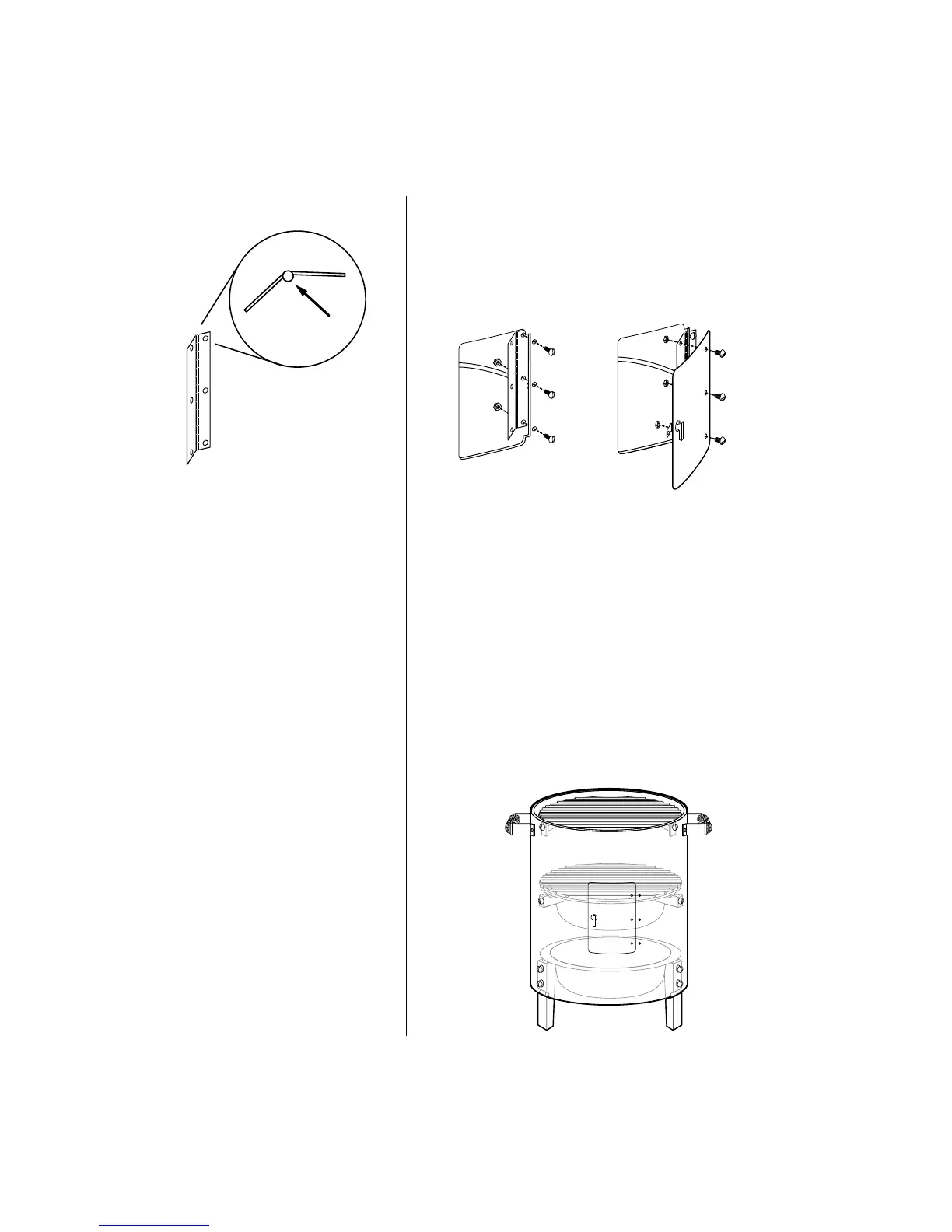

STEP 4:
a. Attach hinge to inside of smoker body as illustrated. Use the
6-32 x 4" screws and nuts to attach the hinge to smoker body.
NOTE: Attach the hinge so pin is facing out of smoker as illustrated.
b. Attach door to hinge using the remaining 6-32 x 4" screws and nuts.
STEP 5:
a. Place charcoal pan inside smoker body on top of legs. Position
charcoal pan so the rim is resting securely on notched out step of all
three legs.
b. Place water pan on top of lower support brackets. Position water pan
so the rim is resting securely on notched out step of all three support
brackets.
c. Place a cooking grill on the lower support brackets directly on top of
water pan.
d. Place a cooking grill on the upper support brackets so the outer rim is
resting securely on notched out step of all three support brackets.
