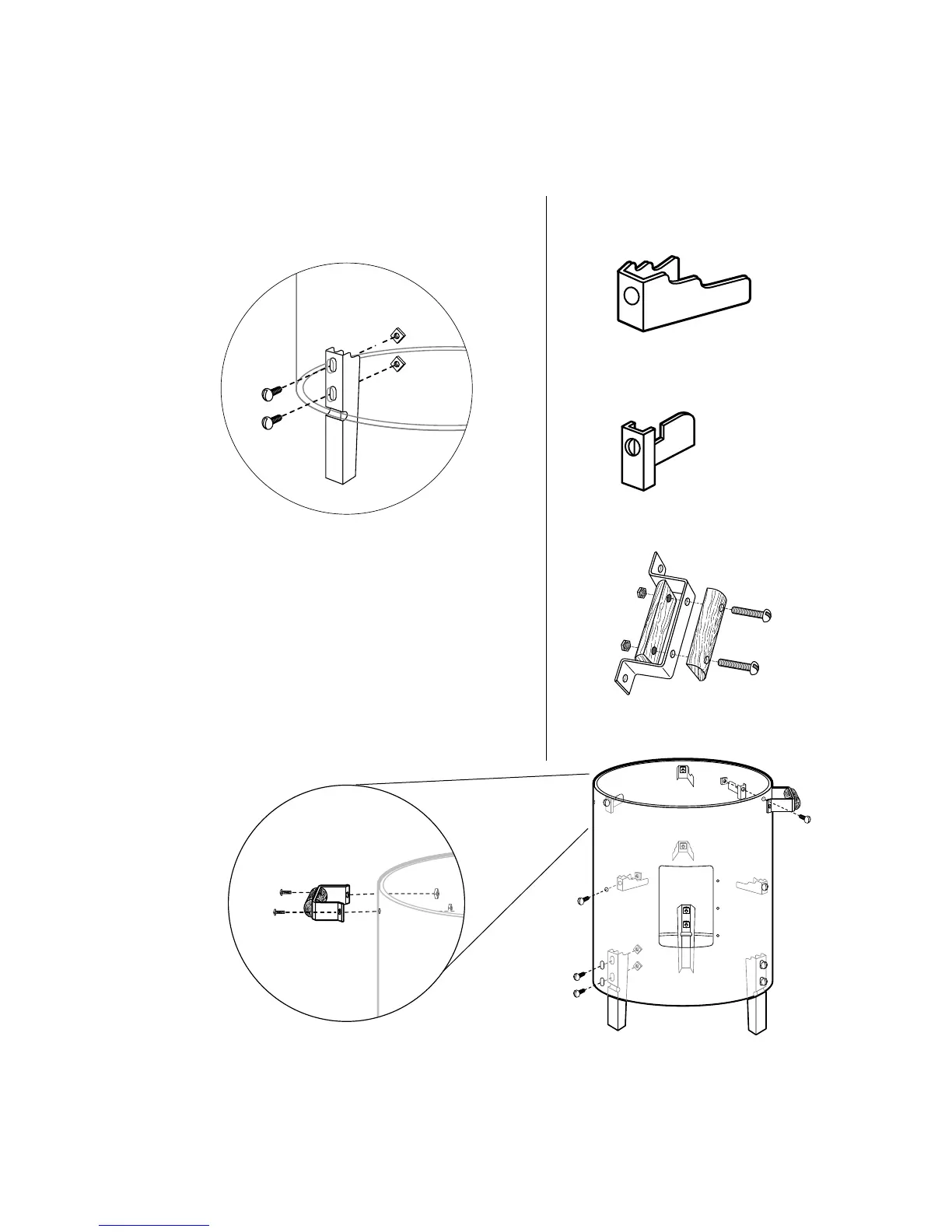

STEP 1:
a. Attach the three legs to smoker body using 10-24 x s" screws and
square nuts as illustrated.
STEP 2:
a. Attach the three lower support brackets (V clips) to inside of smoker
body through the three 4" holes that are located about halfway down
on sides. Mount each bracket with notched side facing up using
10-24 x s" screws and square nuts. Tighten screws securely.
b. Attach the three upper support brackets (single clips) to inside of
smoker body through the three 4" holes located near the top edge.
Mount each bracket with notched side facing up using 10-24 x s"
screws and square nuts. Tighten screws securely.
STEP 3:
a. Attach wooden handle halves to metal brackets using 8-32 x w"
screws and nuts as illustrated.
b. Attach two handle assemblies to side of smoker body using
10-24 x s" screws and square nuts as illustrated.
Lower support bracket
(V-clip) with notched side
facing up.
Upper support bracket
with notched side
facing up.
