45mm
40mm
35mm
For backset 2-3/4" (70mm)
For backset 2-3/8" (60mm)
Fits 2-1/8" (54mm)
cylinder hole
Fold on dotted line and t
on door edge
Make a 1" (25.4mm) hole at center
of door edge
C
L
C
L
C
L
1-3/4"
1-9/16"
1-3/8"

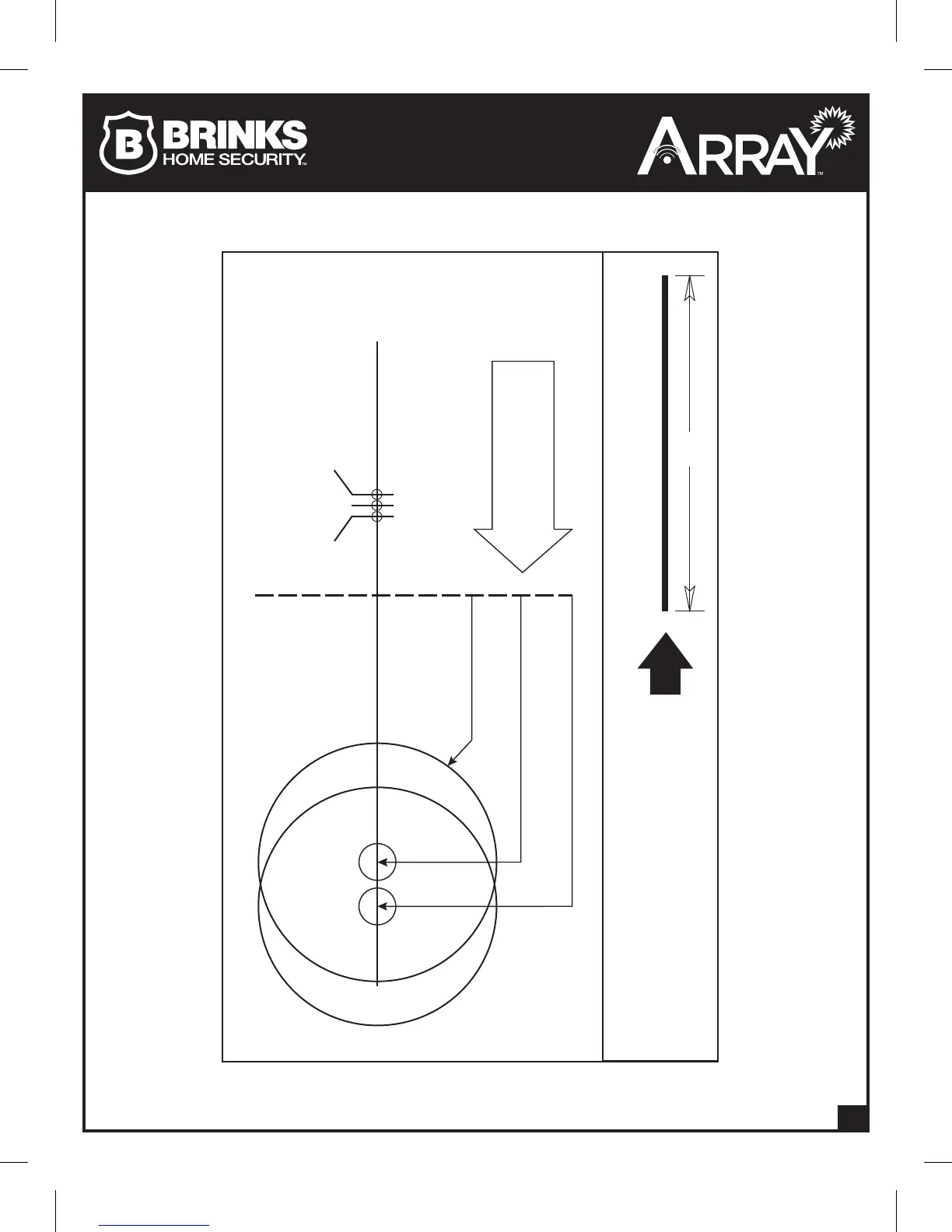

TEMPLATE
This line should be 3 inches. Measure it
before using this template. If the line is not 3
inches when measured, print this instruction
out, full scale on paper that is 8.5" x 11" and
measure again.
3"
10
