BRINKS ARRAY smart deadbolt - Determine the Proper Faceplate; Set the Latch Backset; Install the Latch

Set the Latch Backset
Install the Latch
The distance from the center of the bore hole to the edge of the door is called the backset. If the backset of your
door is 2-3/8", you don’t need to adjust the latch. The backset is preset for 2-3/8".
If the backset of your door is 2-3/4, you’ll need to adjust the latch as shown.
OR
2-3/8 (60 mm)
2
3
/
8
2
3
/
4
2-3/4 (70 mm)
b.
a.
180º
c.
3/4" Latch Screws (EE)
Wood Block
Option 1
Option 2
CAUTION: Be sure the latch is in the upright position.
Mortise on door edge chiseled:
Door edge not chiseled:
Square corner faceplate
Drive-in collar option
Drive-in collar
Round corner faceplate

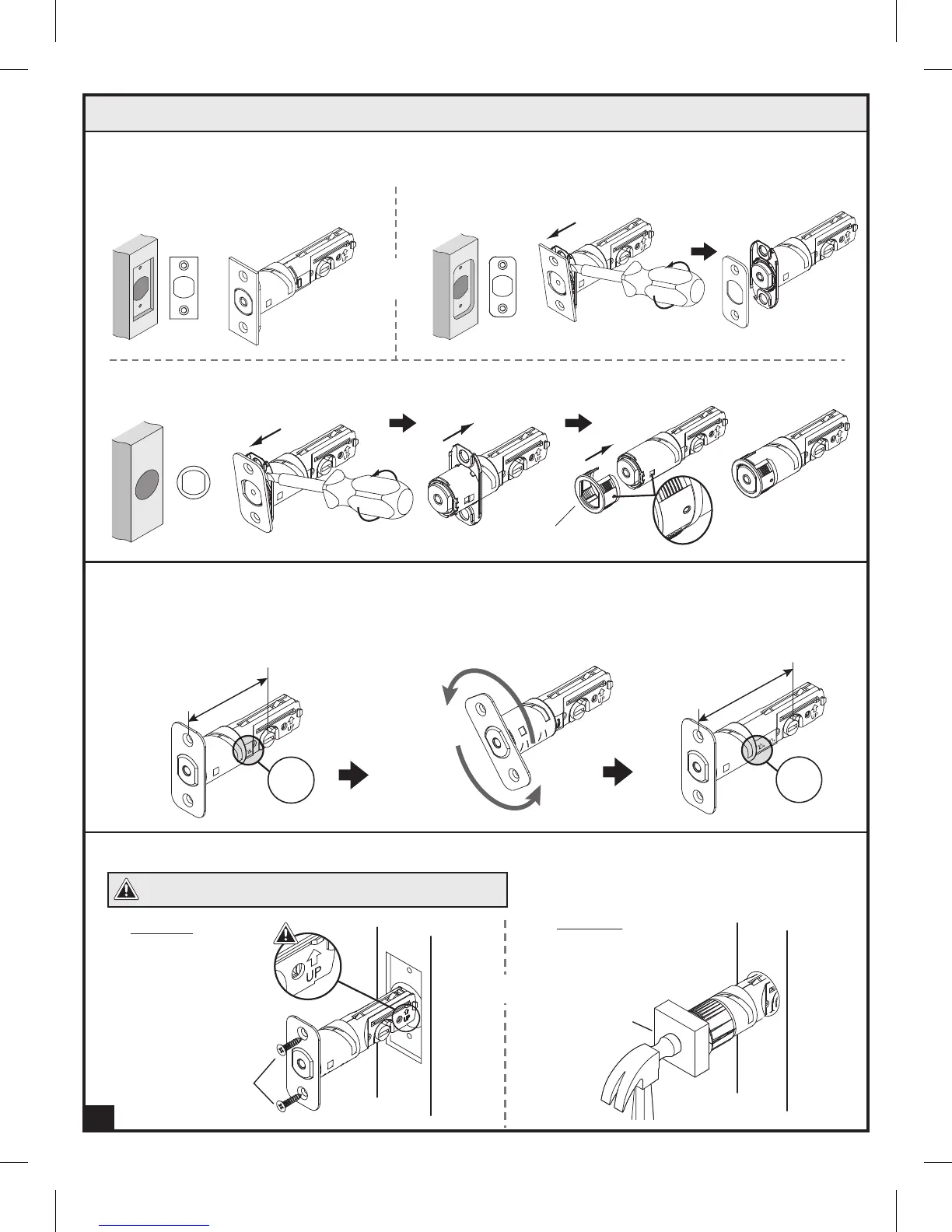

Determine the Proper Faceplate
a
c
b
a.
c.
b.
OR
4. Install Latch and Strike Plate (Continued)
5
