8 L-1884-F
English Manual

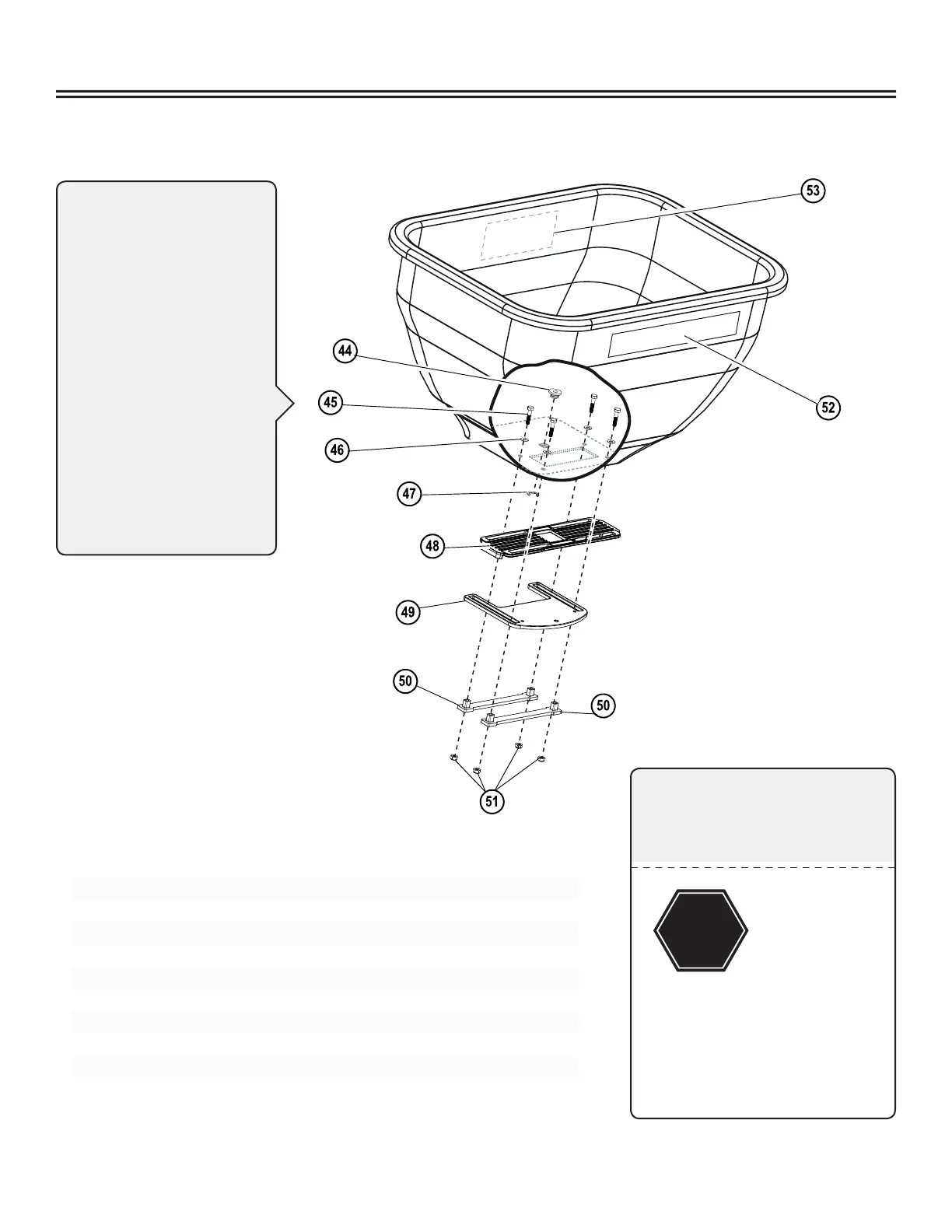

COMPONENT VIEW AND REFERENCE LIST
Ref #
BS-26BH
Part #
BS-36BH
Part # Description Qty
44 F-574 F-574 Bearing; Shaft 1
45 2M0820SS 2M0820SS Bolt; Hex, 1/4” x 1-1/4” SS 4
46 45M0909SS 45M0909SS Washer, Plain SS 4
47 F-577 F-577 E-Ring, 5/8” 1
48 B-7392 B-7392 Plate; Directional Control 1
49 B-7391 B-7391 Gate 1
50 B-7393 B-7393 Strap 2
51 1005198 1005198 Nut; Hex Lock, 1/4”-20 SS 4
52 F-1003 F-1003 Label; Calibration/Directional 1
53 B-5924 B-5924 Decal; Logo 1
STOP
Please call our Customer
Service Department,
Toll Free: 877-728-8224
Or Email:
customerservice@brinly.com
Installation Questions?
Missing Parts?
Replacement Parts?
DON’T
GO BACK TO
THE STORE!
NOTE:
Gate and directional control
plate movement can be
adjusted by tightening /
loosening bolts (45).
The bolts don't require
much tightening or
loosening. Use 1/8 turns
or less on each bolt,
then test the gate and
directional control plate
for your preferred
settings.
Periodically check bolts
for tightness.
