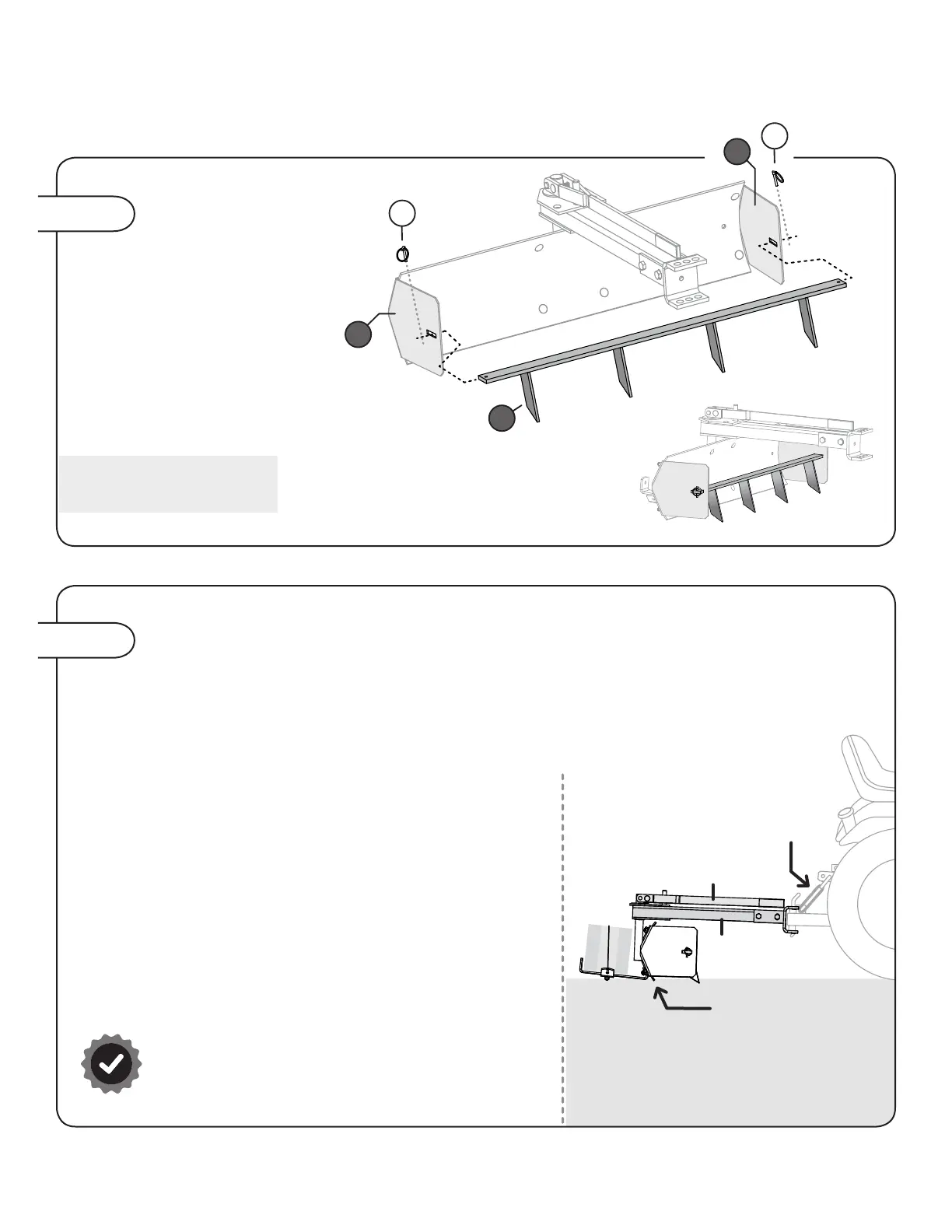

Align the Scarier Bar
Assembly (21), teeth points
down and facing forward.
Slide the bar ends through the
slots of Side Plates (22) as shown.
Secure in place by installing
Klik Pins (24) through the holes on the
end of the Scarier Bar (21) as illustrated
here.
Assembled Scarier Bar:
Step 7
ASSEMBLY
21
22
22
24
24
Step 8
Box Scraper is ready to use!
Attach the completed Box Scraper to the Sleeve Hitch of your tractor, in the middle
hole of the Box Scraper Hitch, hitch pin furnished with your hitch.
Now the Stabilizer Bolts on the Hitch need to be tightened
against the Yoke on Box Scraper to prevent any "side sway."
• Position the Tractor (with Box Scraper) on a hard, level surface.
• Lower the box scraper and check to make sure it is level side-to-side,
loosen the four 3/8" carriage bolts holding the box scraper to the post
to adjust as necessary, and retighten hardware. Refer to steps 1 & 2.
• Place a level on top of Drawbar-move Hitch Assembly until Drawbar
is level, front to back. Refer to Step 4.
• The operating depth of the Box Scraper needs to be set now. Make
sure the tractor hitch is free to allow box scraper to go below ground
level, but still maintaining a 5" transport height with the Hitch raised.
• Refer to your tractor and/or sleeve hitch manual for any necessary
adjustments.
Adjustable
Turnbuckle
Angling
Lever
Drawbar
Point of Blade Edge
MUST BE FREE TO GO
BELOW GROUND LEVEL
( See Sleeve Hitch Manual )
Now securely tighten all
hardware from step 6.
