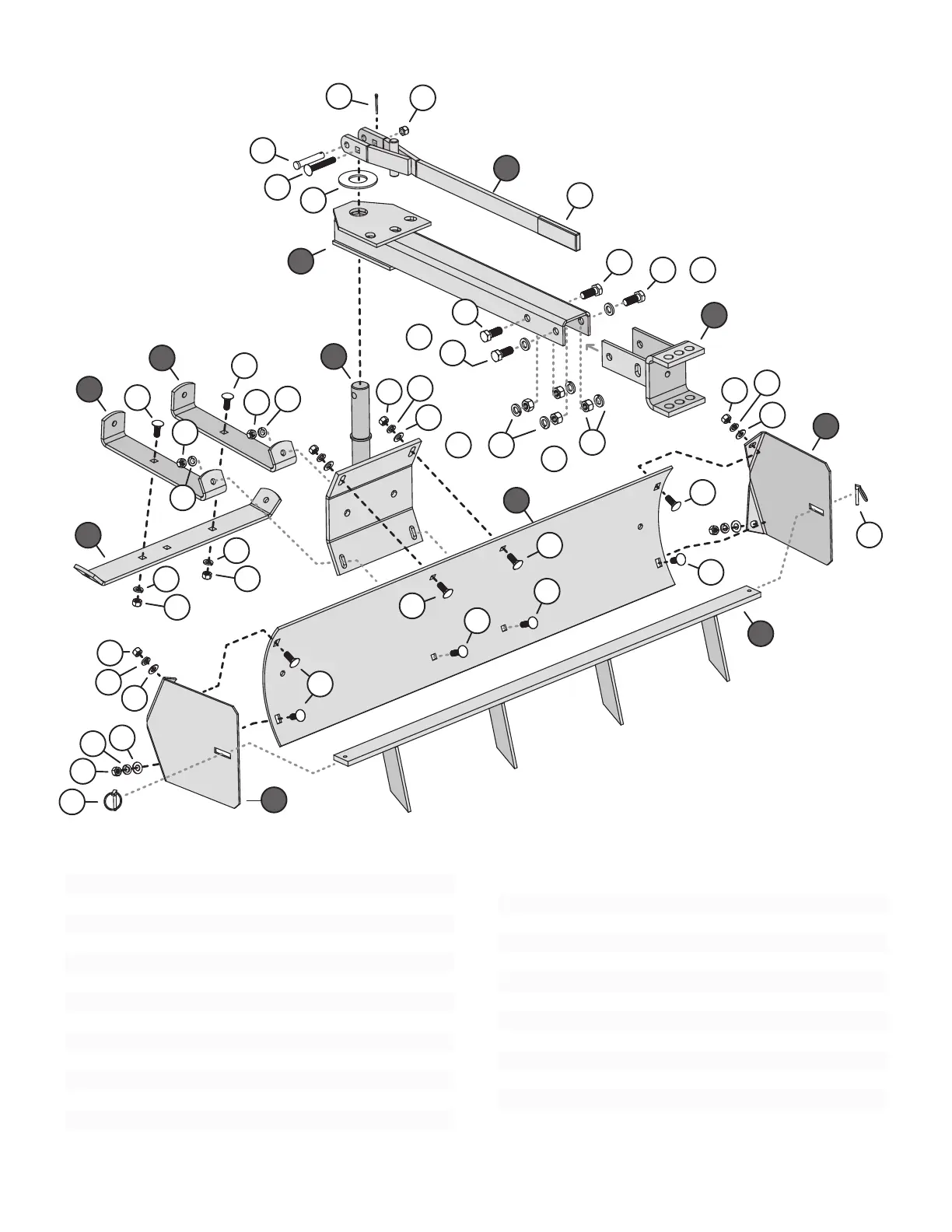

Brinly BS-381 - PARTS; Hardware Bag, BS-381

L-1523-BH1-C3
================================================================================================
English Manual
PARTS
1
13
4
10
6
9
12
29
29
12
12
12
16
16
17
14
14
14
16
22
21
22
3
7
27
27
28
24
24
2
20
5
+15 18
+
18
15
+
1119
16
17
14
16
14
17
16
17
14
+
11
19
14
16
14
16
Ref # 1019392 Hardware Bag, BS-381 Qty
1 45M4440P Washer; SAE, Plain, 1-1/4 1
2 B-1675P Nut; Hex Lock, 3/8"-16 1
3 B-4813-10 Blade, 38" 1
4 B-2376-10 Angling Lever 1
5 B-2578 Pin; Clevis, 7/16 x 2-3/8 1
6 B-3717 Grip; Vinyl, 3/8 x 1-1/4 1
7 B-2596-10 Blade Mount Plate 1
8 B-5922 Logo Decal 1
9 B-4265-10 Hitch Assembly 1
10 B-4351-10 Drawbar 1
11 2M1620P Bolt; Hex Head, 1/2 x 1-1/4" 4
12 10M1216P Bolt; Carriage, 3/8 x 1" 8
13 10M1240P Bolt; Carriage, 3/8 x 2-1/2" 1
Ref # 1019392 Hardware Bag, BS-381 Qty
14 30M1200P Nut; Reg Hex, 3/8 - 16 10
15 30M1600P Nut; Hex, 1/2"-13 4
16 40M1200P Washer; Lock, 3/8" 10
17 45M1313P Washer; SAE Flat, 3/8" 6
18 40M1600P Washer; Lock, 1/2" 4
19 45M1717P Washer; Flat, 1/2" 2
20 50M0416P Pin; Cotter, SS 1/8 x 1" 1
21 B-4819-10 Scarifier Bar Assembly 1
22 B-4814-10 Plate; Side 2
24 B-3682 Pin; Klik, 3/16" 2
27 B-5343-10 Bracket; Weight Mount 2
28 B-5344-10 Bracket; Weight Support 1
29 10M1220P Bolt; Carriage, 3/8 x 1-1/4" 2
12
12
12
11
11
