Brinly BS-42BH - Step 2: Attaching Weight Mount Brackets; Step 3: Attaching Weight Support Bracket

1019911-A
7
================================================================================================
English Manual
ASSEMBLY
x2

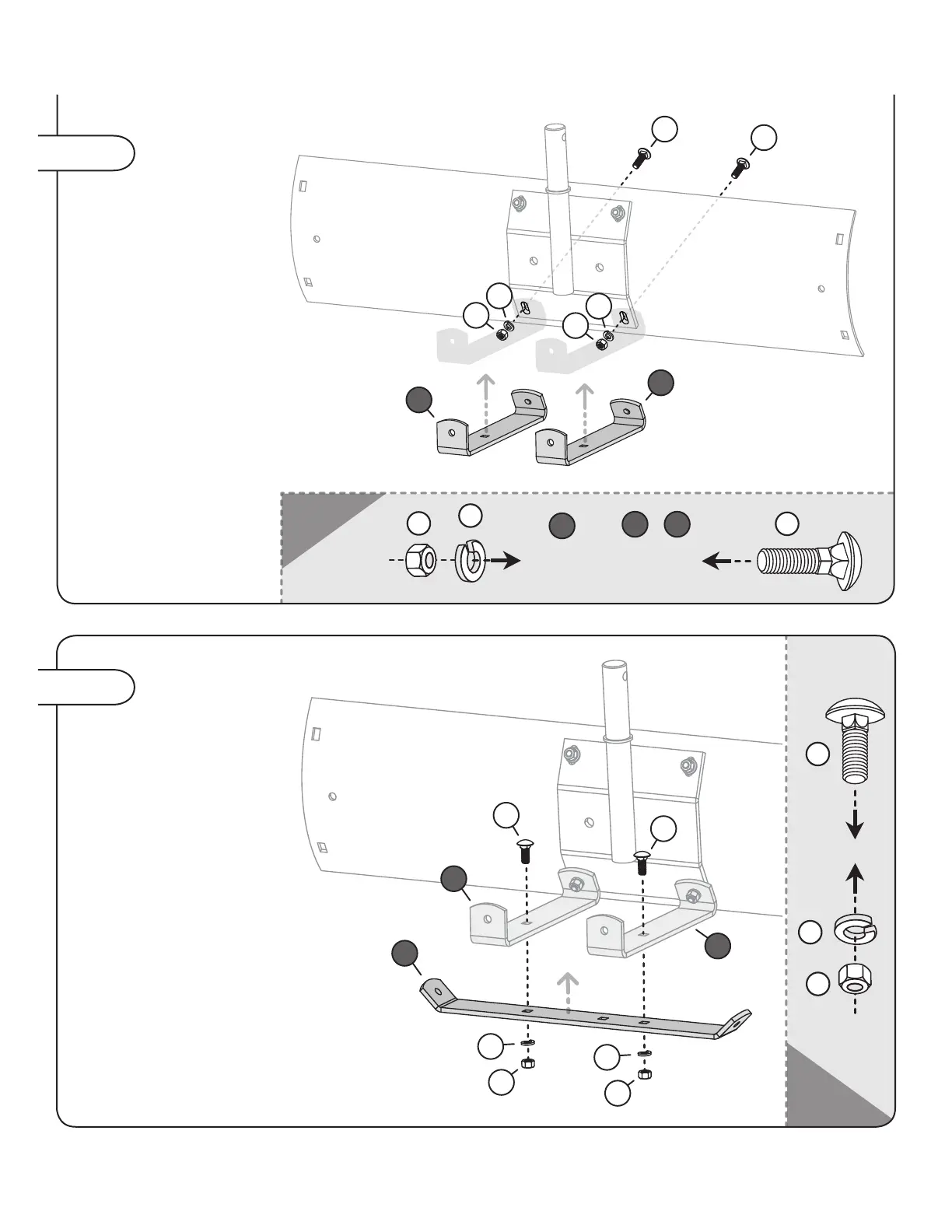

Align the Weight
Mount Brackets (27).
(V-Angle End next to
Blade Mount Plate) to two
Bottom Holes Blade and
Blade Mount Plate.
On the inner curve
of the blade, nd the two LOWER
CENTER HOLES and run two 3/8" x
1-1/4" Carriage Bolts (29) through.
On the back, add a 3/8" Lock Washer
(16) and secure LOOSELY with 3/8"
Hex Nuts (14).
Do not tighten
fully (YET).
x2
Step 3
Step 2
14
16
29
WEIGHT
MOUNT
BRACKETS
BLADE
& MOUNT
PLATE
+
27
3
+
7
29
16
14
29
16
14
27
27
Attach the Weight
Support Bracket (28).
Align the support bracket
(28) to bottom of weight
mount brackets (27), as
illustrated.
From above, run two 3/8" x 1"
carriage bolts (12) through both
brackets.
Secure from below with a 3/8"
lock washer (16) and 3/8" hex
nut (14) on each bolt.
NOW SECURELY TIGHTEN
ALL HARDWARE FROM STEPS 1-3.
12
14
16
16
14
16
14
28
27
27
12
12
