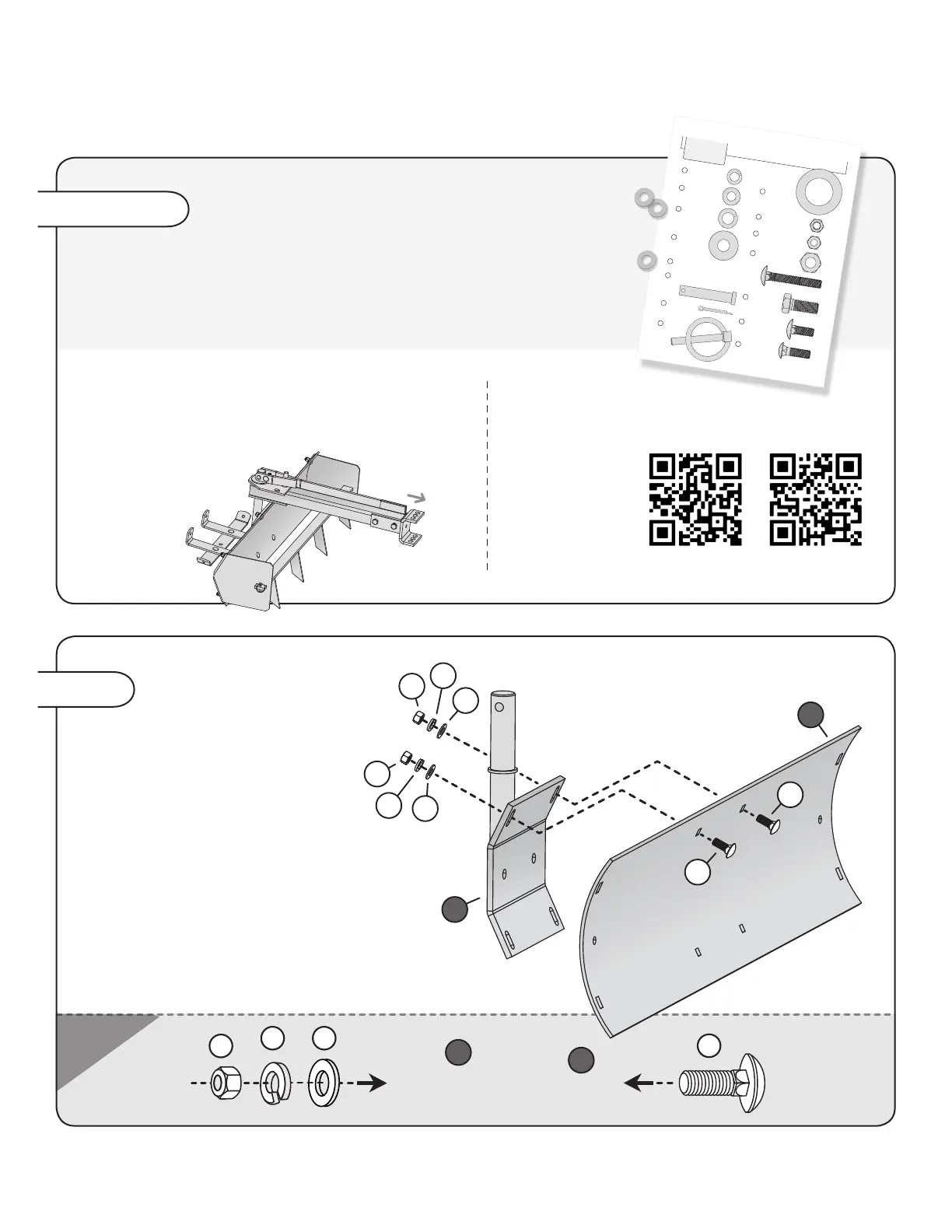

Brinly BS-42BH - ASSEMBLY; Step 1: Aligning Blade

1019911-A
6
================================================================================================
English Manual
ASSEMBLY
x2
Assembly Tips
Illustrations on page 4 are to-scale. For faster identification of the hardware
during assembly, simply lay the hardware on top of these illustrations.
It is recommended that you carefully read
this Owner's Manual before starting assembly.
Additional info and videos are
available on our website:
brinly.com
These QR codes
link directly to
the Box Scraper
product pages.
Align the Blade (3) with
the Blade Mount Plate (7),
as illustrated.
On the inner curve of the blade,
nd the two TOP CENTER HOLES
and run two 3/8" x 1" Carriage
Bolts (12) through.
On the back, add a 3/8" Flat Washers
(17), 3/8" Lock Washer (16) and secure
LOOSELY with 3/8" Hex Nuts (14).
Do not tighten fully (YET).
Step 1
tractor
right hand side
left hand side
1019911-A
4
================================================================================================
English Manual
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 (877) 728-8224
PARTS: HARDWARE IDENTIFIER
Illustrations on this page
are to scale for faster
identication of hardware
during assembly.
Pin; Cotter,
1/8 x 1" (x1) . . . .
50M 0416P
20
Washer: Flat
1/2” (x2) . . . . . . .
19
45M 1717P
Washer: Lock
1/2” (x4) . . . . . . . . . .
40M1600P
18
Washer: Lock
3/8” (x10) . . . . . . . . . .
40M1200P
16
Washer: Flat
3/8” (x6) . . . . . . . . . .
17
45M 1313P
Washer: Flat
1-1/4” (x1) . . . . .
45M4440P
1
Nut: Hex Lock, 3/8” (x1) . . .
B-1675 P
2
Nut: Hex, 3/8” (x10) . . . . . .
30M1200P
14
Nut: Hex, 1/2” (x4) . . . . . .
30M1600P
15
Bolt: Carriage, 3/8 x 2-1/2” (x1) . . . . . . . . . . . . . . . . . . . .
10M1240P
13
Bolt: Carriage
3/8 x 1” (x8) . . . . . . . . .
10M12 16P
12
Bolt: Carriage
3/8 x 1-1/4” (x2) . . . .
10M1220P
29
Bolt: Hex Head
1/2 x 1-1/4” (x4) . . .
2M162 0 P
11
5
Shear Pin: 7/16" x 2 3/8" (x1) . . . . . .
B-2578
. . . .
Pin: Linch
5/16 (x2) . . .
101998 3
24
Right hand (R.H.) and Left
hand (L.H.) are determined from
the operator's position while
seated on the tractor.
16
17
14
16
17
14
12
12
7
3
14
1716
12
BLADE
BLADE MOUNT
PLATE
+
7
3
BS-42BH
BS-42BH-A
BS-381
BS-381-A
