Brinly BS-42BH - PARTS: CONTENTS OF SHIPPING CARTON

1019911-A
5
================================================================================================
English Manual

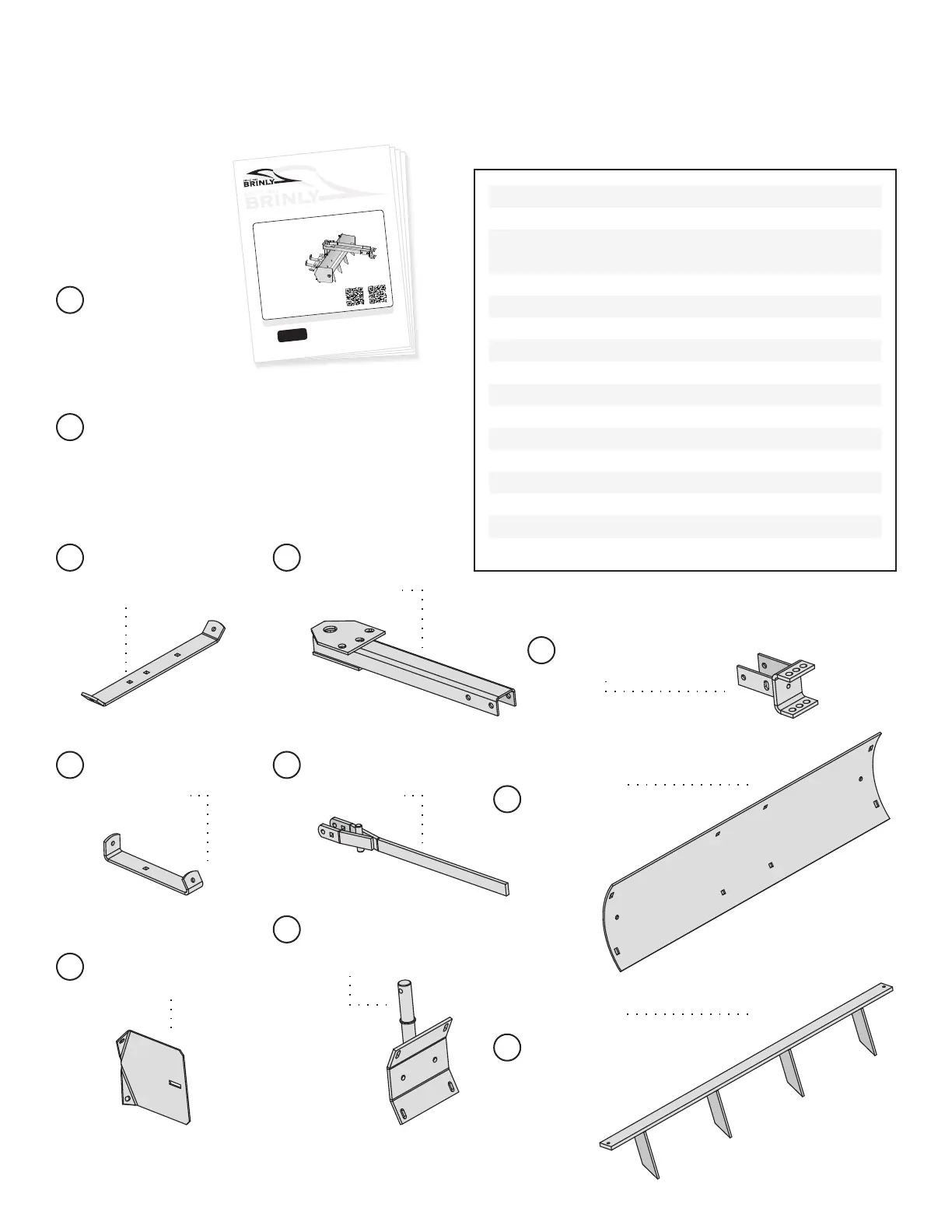

PARTS: CONTENTS OF SHIPPING CARTON
Owner's
Manual (x1) . . . .
1019911
A
Hardware Bag (x1) . . . . . . . . . . . . . . . . . . . . . . . .
1019988
B
1019911-A
1
BS-42BH-ABS-381-A
BS-381 BS-42BH
English, Spanish and
French Manual
This implement is for use with garden tractors
equipped with sleeve hitch. Also, tire chains and
wheel weights are recommended.
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
Visit us on the web!
www.brinly.com
38" BOX SCRAPER
MODEL:
BS-381
BS-381-A
BS-42BH
BS-42BH-A
OWNER'S MANUAL
• Assembly
• Installation
• Operation
• Repair Parts
42" BOX SCRAPER
Weight Support
Bracket (x1)
B-5344-10
28
Weight Mount
Bracket (x2)
B-5343-10
27
Drawbar
Assembly (x1)
B-4351-10
10
Angling
Lever (x1)
B-2376-10
4
Blade Mount
Plate (x1)
B-2596-10
7
Side Plate (x2)
B-4814 -10
22
Hitch Assembly (x1)
B-4265
9
3
38" Blade (x1)
B- 4813-10
42" Blade (x1)
1019748-10
Ref # 1019988 Hardware Bag Qty
1 45M4440P Washer; SAE, Plain, 1-1/4 1
2 B-1675P Nut; Hex Lock, 3/8"-16 1
5
B-2578 Pin; Clevis, 7/16 x 2-3/8 1
1019747* Pin; Magnetic Hitch 1
6 B-3717 Grip; Vinyl, 3/8 x 1-1/4 1
11 2M1620P Bolt; Hex Hd, 1/2 x 1-1/4 4
12 10M1216P Bolt; Carrige, 3/8 x 1" 8
13 10M1240P Bolt; Carriage, 3/8 x 2-1/2" 1
14 30M1200P Nut; Reg Hex, 3/8"-16 10
15 30M1600P Nut; Hex, 1/2"-13 4
16 40M1200P LockWasher, 3/8" 10
17 45M1313P Washer; SAE Flat, 3/8 6
18 40M1600P Washer; Lock, 1/2" 4
19 45M1717P Washer; Flat 1/2" 2
20 50M0416P Pin; Cotter, SS 1/8 x 1 1
24 1019983 Pin; Linch, 5/16" 2
29 10M1220P Bolt; Carriage, 3/8 x 1-1/4" 2
* 1019747 Included on model BS-42BH-A only.
38" Scarier Bar Assembly (x1)
B-4819-10
21
42" Scarier Bar
Assembly (x1)
1019750-10
