Brinly BS-42BH - PARTS: HARDWARE IDENTIFIER

1019911-A
4
================================================================================================
English Manual
DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS.
Please Call: 1 (877) 728-8224
PARTS: HARDWARE IDENTIFIER

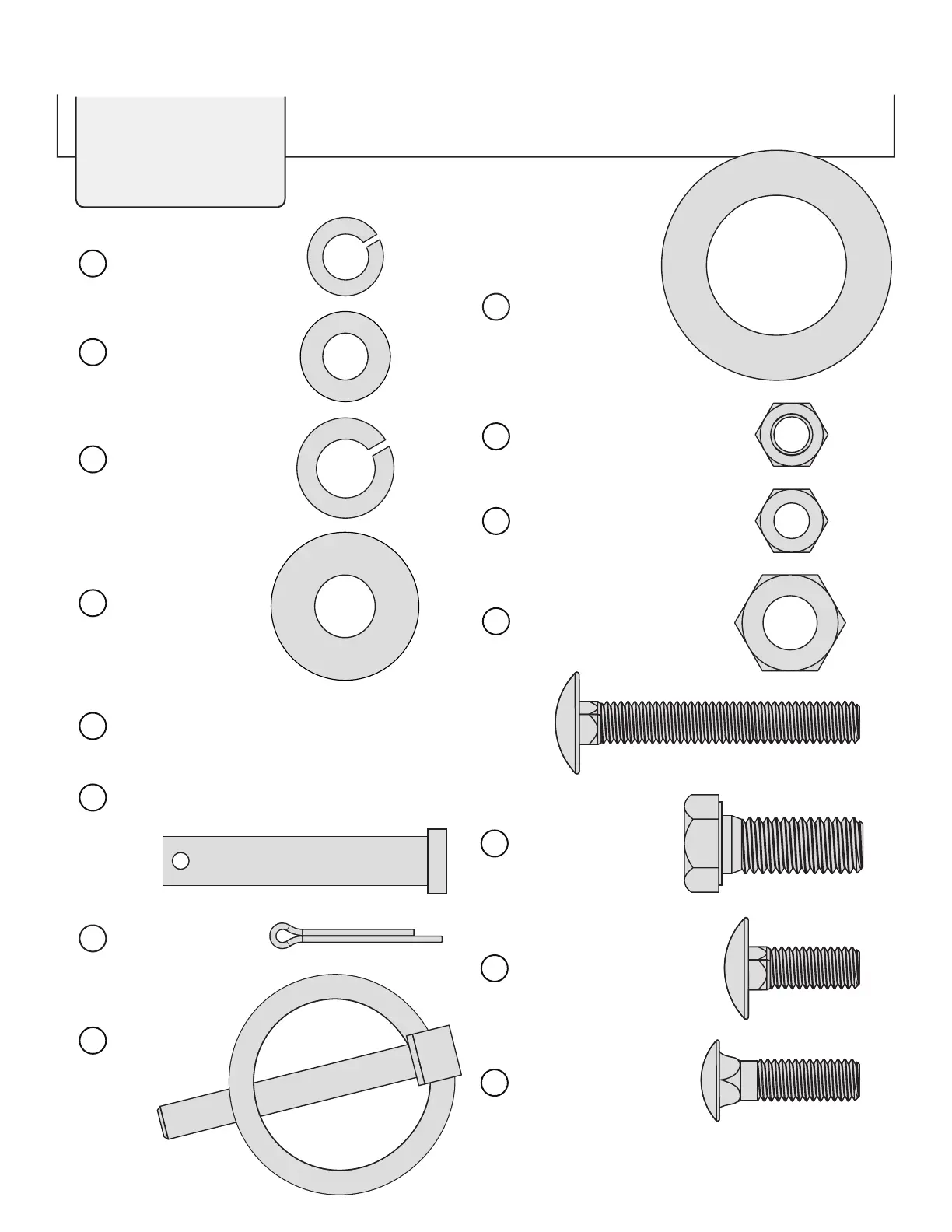

Illustrations on this page
are to scale for faster
identication of hardware
during assembly.
Pin; Cotter,
1/8 x 1" (x1) . . . .
50M0416P
20
Washer: Flat
1/2” (x2) . . . . . . .
19
45M1717P
Washer: Lock
1/2” (x4) . . . . . . . . . .
40M1600P
18
Washer: Lock
3/8” (x10) . . . . . . . . . .
40M1200P
16
Washer: Flat
3/8” (x6) . . . . . . . . . .
17
45M1313P
Washer: Flat
1-1/4” (x1) . . . . .
45M4440P
1
Nut: Hex Lock, 3/8” (x1) . . .
B-1675P
2
Nut: Hex, 3/8” (x10) . . . . . .
30M1200P
14
Nut: Hex, 1/2” (x4) . . . . . .
30M1600P
15
Bolt: Carriage, 3/8 x 2-1/2” (x1) . . . . . . . . . . . . . . . . . . . .
10M1240P
13
Bolt: Carriage
3/8 x 1” (x8) . . . . . . . . .
10M1216P
12
Bolt: Carriage
3/8 x 1-1/4” (x2) . . . .
10M1220P
29
Bolt: Hex Head
1/2 x 1-1/4” (x4) . . .
2M1620P
11
5
Pin, Clevis: 7/16" x 2 3/8" (x1) . . . . . .
B-2578
. . . .
Pin: Linch
5/16 (x2) . . .
1019983
24
