Brinly BS-42BH - Step 5-B: Securing Angling Lever; Step 6: Attaching Side Plates

1019911-A
9
================================================================================================
English Manual
x4

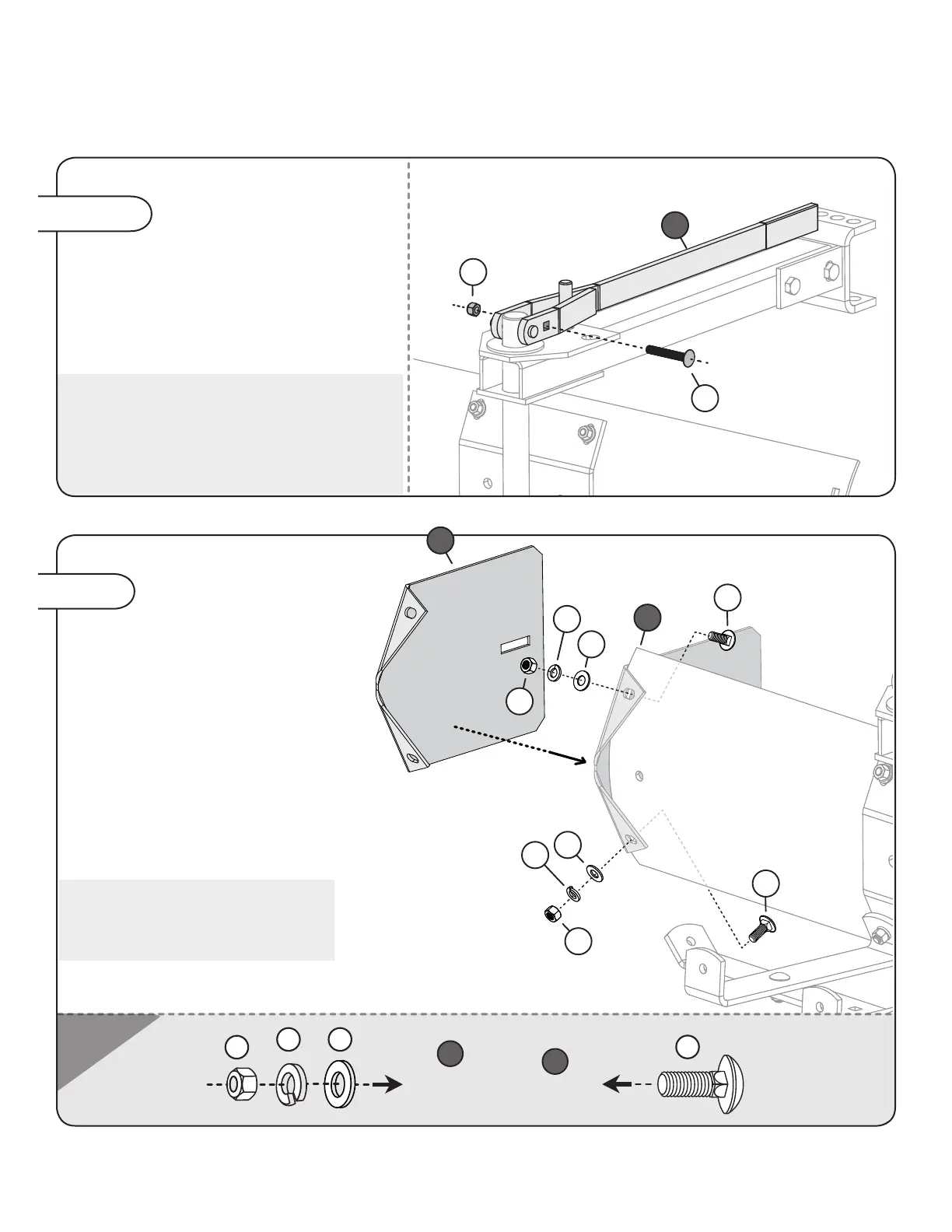

Align a Side Plate (22)
with the Blade (3).
From the inner corner, attach
the side plate (22) running two
3/8" x 1" Carriage Bolts (12)
through both parts.
Secure each bolt using a Flat
Washer (17), Lock Washer (16)
and Hex Nut (14).
Do not fully tighten (yet).
ASSEMBLY
- Insert the 3/8" x 2-1/2" Carriage Bolt (13)
through the remaining two holes (square)
in the angling lever (4).
- Secure with a 3/8" Hex Lock Nut (2).
2
4
13
Step 5-B
Step 6
NOTE: Tighten the lock nut (2) just
enough to remove any "looseness" in the
angling lever (4) - it must be free to move up
and down without binding.
22
3
12
17
17
14
14
16
16
12
Repeat this step, attaching the
second side plate on the other side
of the Blade.
12
BLADE
SIDE
PLATE
+
22
3
14
1716
