Brinly DTZ-48BH - ASSEMBLY; Required Tools For Assembly

1009719 Rev E

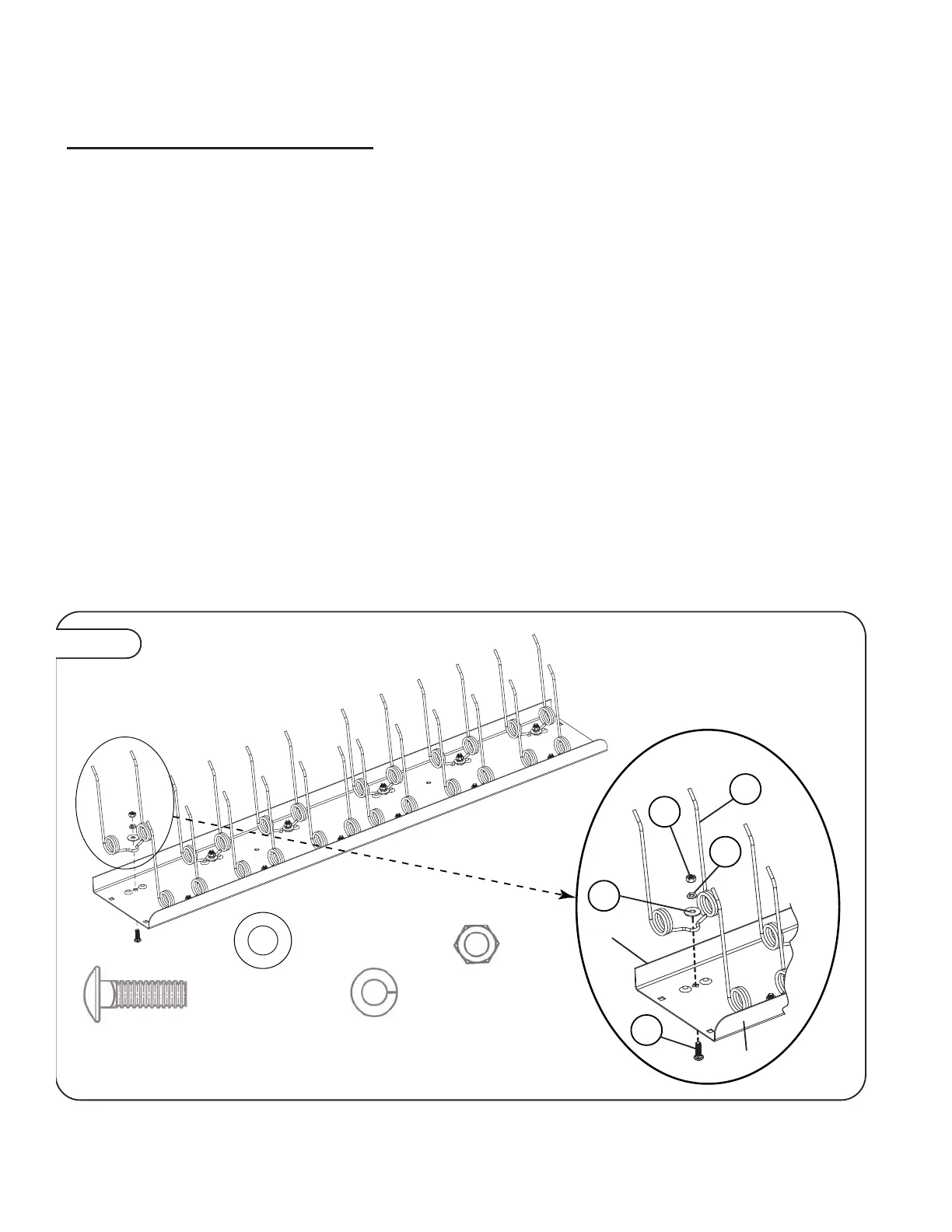

Figure 1.
5/16” x 1” Carrage Bolt
Qty. 12
24
Special Washer
Qty. 12
26
5/16” Lock Washer
Qty. 12
27
5/16” Hex Nut
Qty. 12
28
28
27
29
26
24
Front
Rear
Bolt tines in place facing toward the
front using the hardware as shown
ASSEMBLY
================================================================================================
Required Tools For Assembly
• 3/4" Wrench
• 15/16" Socket and Ratchet
• 9/16" Wrench
• 1/2" Wrench
• Scissors
• Pliers
• Allen wrench set
